Analox AX60SAQYA Quick Connect AX60+ CO2 Sensor

Gas Detector Type: Multi Gas
Type: CO2
Manufacturer: Analox
SKU: AX60SAQYA
£173.00 excl vat
£207.60 inc vat
decrease increase

Analox AX60SAQYA Quick Connect AX60+ CO2 Sensor Only

This popular wall mounted unit has a central display with the available sensors being carbon dioxide (CO2) only, oxygen (O2) only or a combination of both gases. The modular design enables you to select from 1-4 sensors, making it a very flexible to suit your site requirements.

System alarm setpoints are either:

USA regulations (OSHA, NBIC, NFPA and IFC) :

TWA - 5000ppm (0.5%)
AL1 - 5000ppm (0.5%)
AL2 - 15000ppm (1.5%)
AL3 - 30000ppm (3%)

European/International regulations (EH40):

TWA -5000ppm (0.5%)
AL1 - 15000ppm (1.5%)
CO2 - 30000ppm (3%)

The Ax60+ is a wall-mountable multi gas monitor for detecting carbon dioxide with an option for monitoring oxygen available now. The new Ax60+ multi gas monitor offers the additional functionality of being able to add modular sensors, creating a fully flexible solution.

The CO2 sensor is set by default to trigger a low-level alarm at 1.5% CO2, an evacuation alarm at 3% CO2 and a time-weighted average alarm (TWA) of 0.5% CO2 measured over eight hours. Alarm set-points can be fully customised by the user to adhere to specific local regulations.

The O2 sensor provides an early warning of both oxygen depletion and oxygen enrichment. The O2 sensor is set by default to trigger low-going alarms at both 19.5% and at 18% and a high-going alarm at 23%. The alarm setpoints can be changed by the user. Warnings are announced by high-visibility strobe lights and high-volume sounders.

*Please note the AX60+ can only accommodate 4 sensors (O2 and CO2) in any combination with 8 alarms.

Analox Ax60+ Contents:
1 x Central display unit
1 x Quick connect with universal power supply
(Does not include sensors or alarm please select from list)

The CO2 and O2 sensors are interchangeable and can be fully integrated as part of a multi-point, multi-gas detection and alarm system.
Key features of the Ax60+ wall mountable multi gas monitor:

- Multi-point, multi-gas, distributed monitoring system
- 4-channel flexibility allowing any sensor combination - both now and in the future

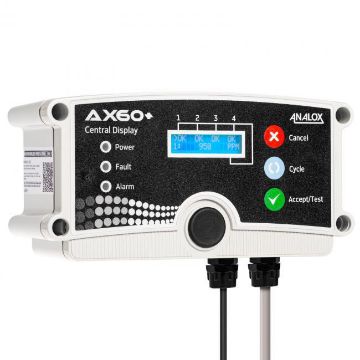

- Central display unit for remote operation and control
- User-configurable alarms, setpoints and relay outputs
- Built-in software for operation and maintenance tasks
- Relay 'failsafe options'
- Improved accuracy and calibration for CO2 channels
- Meets TUV, DIN, NFPA, IFC and OSHA requirements
- Up to five year sensor and electronics warranty
- Virtually maintenance free
- The Ax60+ has 2 built in relays as standard

Safety Gear Store offer a calibration and installation service please call sales for prices on 0800 678 5708 or email sales@safteygearstore.co.uk
