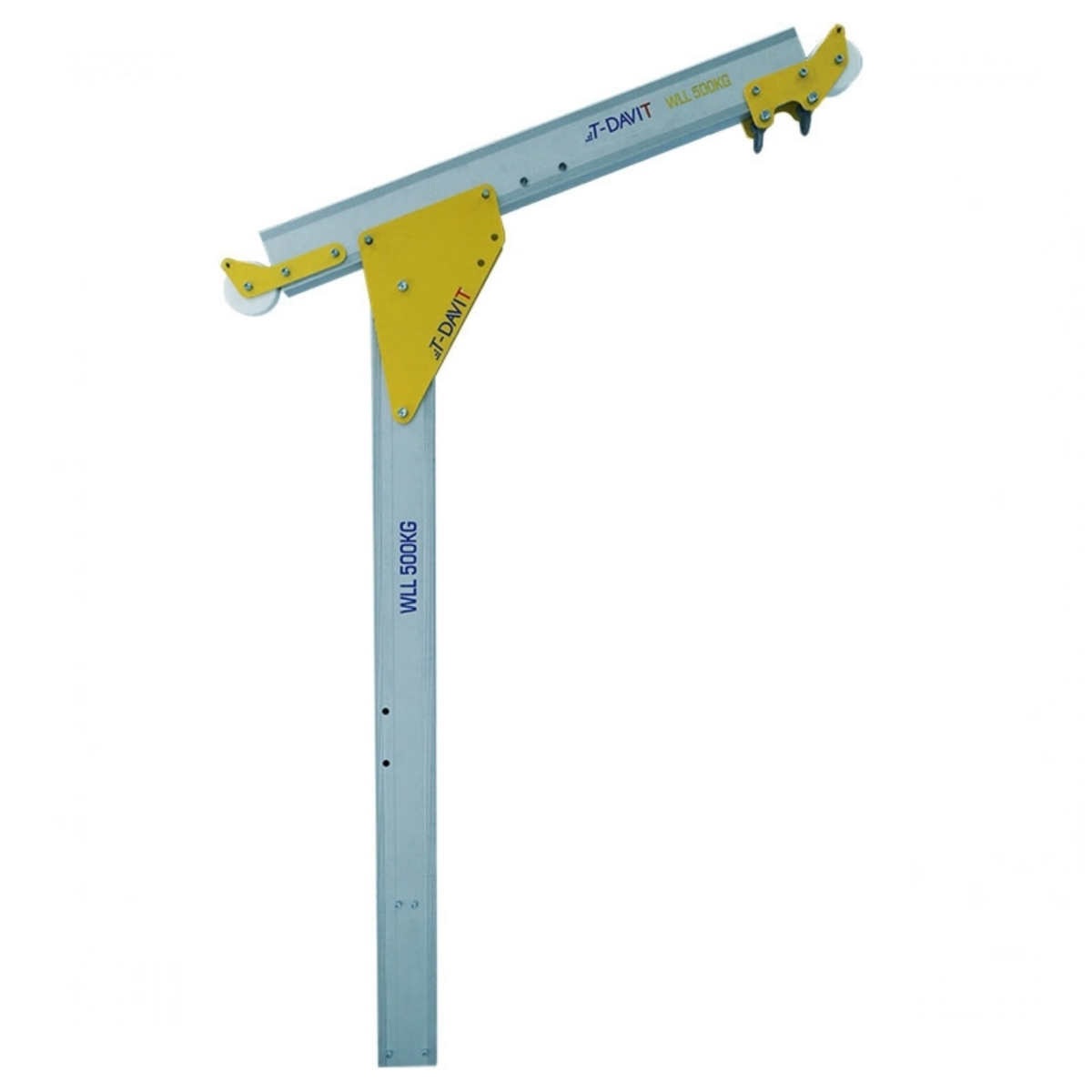

Reid Winched T-Davit - TDWA4A2

Max - H:2032mm R:1200mm

500kg Load Rating

Manufacturer: Reid Lifting
SKU: TDWA4A2
£2076.40 inc vat £1,730.33 excl vat
decrease increase

Reid Winched T-Davit - TDWA4A2

Model Breakdown:

  • Load Rating - 500kg
  • Height of Lift: Position A - 1644mm - Position B - 2032mm
  • Reach (Position A:B) - 1200mm / 1110mm
  • Column Option 4 - Beam Option 2

Key Features:

  • EN795:2012 Certified

  • ATEX Certified

  • Can support goods and personnel lifting;

    • Goods WLL of up to 500kg

    • Personnel WLL of up to 250kg

  • Can be operated and assembled by one person, no tools required

  • Can be rotated 360° under full load using fingertip control

  • Designed with a universal kingpin suitable for all REID sockets

  • Clean, anodised finish for increased corrosion resistance

  • A variety of attachments for a range of applications

  • Engineered designs and bespoke sections reduce weight, providing lightweight portability


Downloads:

Technical Drawings

TDWA4A2

Bridge Mount

Flush Mount

500mm Pedestal

800mm Pedestal

1100mm Pedestal

Side Mount Socket

Top Mount Socket

Product Overview

https://youtu.be/wXfOR5S5p_I

Part numbers associated with this product include:

TDWA1A1TD2T-Davit Type W Column option 1 Beam option 1 Load option 2
TDWA1A2TD2T-Davit Type W Column option 1 Beam option 2 Load option 2
TDWA1A3TD2T-Davit Type W Column option 1 Beam option 3 Load option 2
TDWA1A4TD2T-Davit Type W Column option 1 Beam option 4 Load option 2
TDWA2A1TD2T-Davit Type W Column option 2 Beam option 1 Load option 2
TDWA2A2TD2T-Davit Type W Column option 2 Beam option 2 Load option 2
TDWA2A3TD2T-Davit Type W Column option 2 Beam option 3 Load option 2
TDWA2A4TD2T-Davit Type W Column option 2 Beam option 4 Load option 2
TDWA3A1TD2T-Davit Type W Column option 3 Beam option 1 Load option 2
TDWA3A2TD2T-Davit Type W Column option 3 Beam option 2 Load option 2
TDWA3A3TD2T-Davit Type W Column option 3 Beam option 3 Load option 2
TDWA3A4TD2T-Davit Type W Column option 3 Beam option 4 Load option 2
TDWA4A1TD2T-Davit Type W Column option 4 Beam option 1 Load option 2
TDWA4A2TD2T-Davit Type W Column option 4 Beam option 2 Load option 2
TDWA4A3TD2T-Davit Type W Column option 4 Beam option 3 Load option 2
TDWA4A4TD2T-Davit Type W Column option 4 Beam option 4 Load option 2
TDWA5A1TD2T-Davit Type W Column option 5 Beam option 1 Load option 2
TDWA5A2TD2T-Davit Type W Column option 5 Beam option 2 Load option 2
TDWA5A3TD2T-Davit Type W Column option 5 Beam option 3 Load option 2
TDWA5A4TD2T-Davit Type W Column option 5 Beam option 4 Load option 2
RAWB000001Winch Bracket Pfaff LB900/1200 to Porta-Davit & T-Davit
RAWB000203Winch Bracket Pfaff LB350 to Porta-Davit & T-Davit
RAWB000136Winch Bracket CWL200&CLW301 to Porta-Davit & T-Davit
RAWB000137Winch Bracket Harken Lockhead/40.2 to T-Davit
RAWB000016Winch Bracket kit G-Winch to Porta-Davit & T-Davit
RAWB000012Winch Bracket SalaliftII/Sealed blok to PortaDavit & T-Davit
RAWB000138Winch bracket Tractel Blocfor R to T-Davit (Additional RAFP bracket required)
RAWB000622Winch bracket Checkmate personnel winch to Porta-Davit & T-davit
RAWB000135Winch bracket Checkmate FABXR/FABXLR to T Davit (Additional RAFP bracket required)
