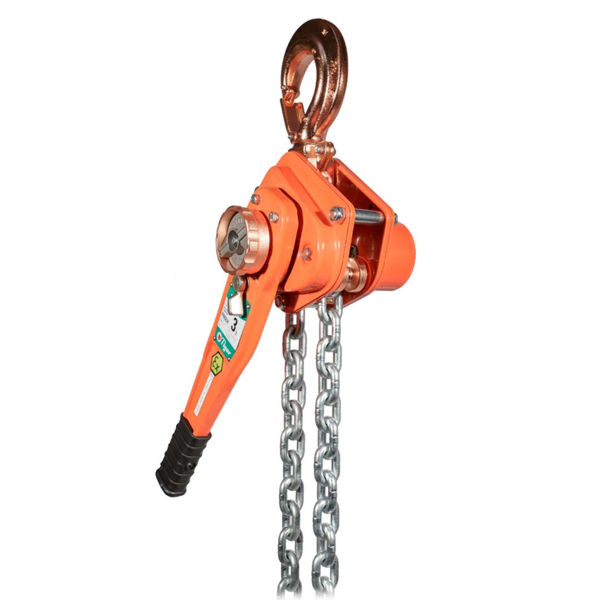

Tiger PROLH Spark Resistant Lever Hoist XLH

Tiger PROLH lever hoists incorporate many of the advanced safety features that Tiger has developed including one-piece construction pinion gears, our unique intelligent dual brake system and our patented Quad Cam Pawl System. These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009, ANSI/ASME B30.21, AS1418.2 and SANS 1636.

The PROLH is ideally suited for applications in the overhead transmission industry, shipyards and offshore platforms and is also suitable for underground mining use.

Tiger Spark Resistant products are manufactured in accordance with ATEX Directive 94/9/EC and the Machinery Directive 2006/42/EC. Our products are lightweight and durable with a proven track record. Atex marking: Ex II 2 GD c IIC T4 IIIC T135°C. Suitable for gas and dust hazardous areas: Zone 1 & 2 (gas) and Zone 21 & 22 (dust).

Main Features

• DNV GL Verification tested according to NORSOK R-002

• UK Network Rail PADS Certification

• Available with slipping clutch overload protection

• Range from 800kg – 10000kg

• Available with forged clevis adaptor components or shipyard hooks

• Equipped with our unique intelligent dual brake system:Thousands of hours of empirical evidence as proof of design

• Globally patent protected Quad Cam pawl and ratchet design

• Unique load sensing torsion brake

• One-piece construction pinion gear

• Light load tested and certified at 2% of the rated capacity

• No requirement for preload tension to activate the ratchet mechanism

• Adaptable to use both inverted and horizontally

• Each hoist is individually proof tested at 1.5 times the rated capacity

• Using only the highest quality alloy calibrated load chains according to EN 818-7 and ISO 16872

• Individual spares readily available

• All major parts are heat treated and precisely machined

• Can be chained up to meet your exact requirements

• Finished in high quality powder coat paint offering excellent corrosion protection

• Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)

• Also available with stainless steel load chain or spark resistant hooks

• Available with load bearing swivel hooks to meet relevant standards i.e. AS 1418.2
