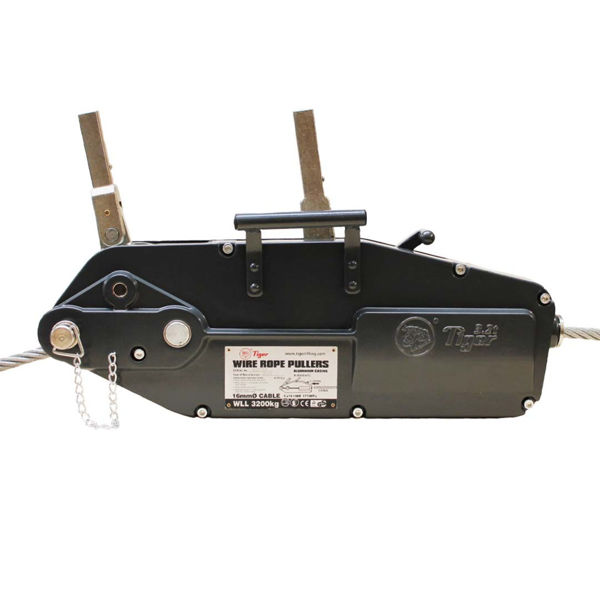

Tiger TRPA Wire Rope Pulling Machine - Aluminium Casing

The Tiger manual wire rope puller is a hand operated lifting and pulling device. The puller could also be used for lowering, tensioning and guying which makes it a versatile, portable and multipurpose tool.

These units meet and exceed all the requirements within BS EN 13157:2004+A1:2009.

Main Features:

• Range from 800kg to 5400kg (Lifting Capacity)

• Lightweight manual pulling machines - simple and safe to operate

• Compact high-strength

• Corrosion free aluminium alloy casing

• Steel versions also available

• Usable at horizontal, vertical and angled working positions

• 20m steel wire with eye hook as standard

• Rope clamp system easily disengaged with a lever allowing smooth installation of wire rope

• Equipped with an anchor bolt offering numerous connection possibilities

• Overload protection built in, with a shearing pin in the forward lever

• Shear pins can be replaced without removing the load

• Spare shear pins supplied

• Parallel clamping system providing evenly distributed grip at a lower force, resulting in less rope wear

• Individually serial numbered for traceability

• Supplied with relevant certification and user instructions

Downloads:

Data Sheet
