Tiger TYAA14 Single-Jaw Sliding Beam Anchor

Capacity 140kg
Manufacturer: Tiger Lifting
SKU: TYAA14*
  • *
£326.00 excl vat
£391.20 inc vat
decrease increase

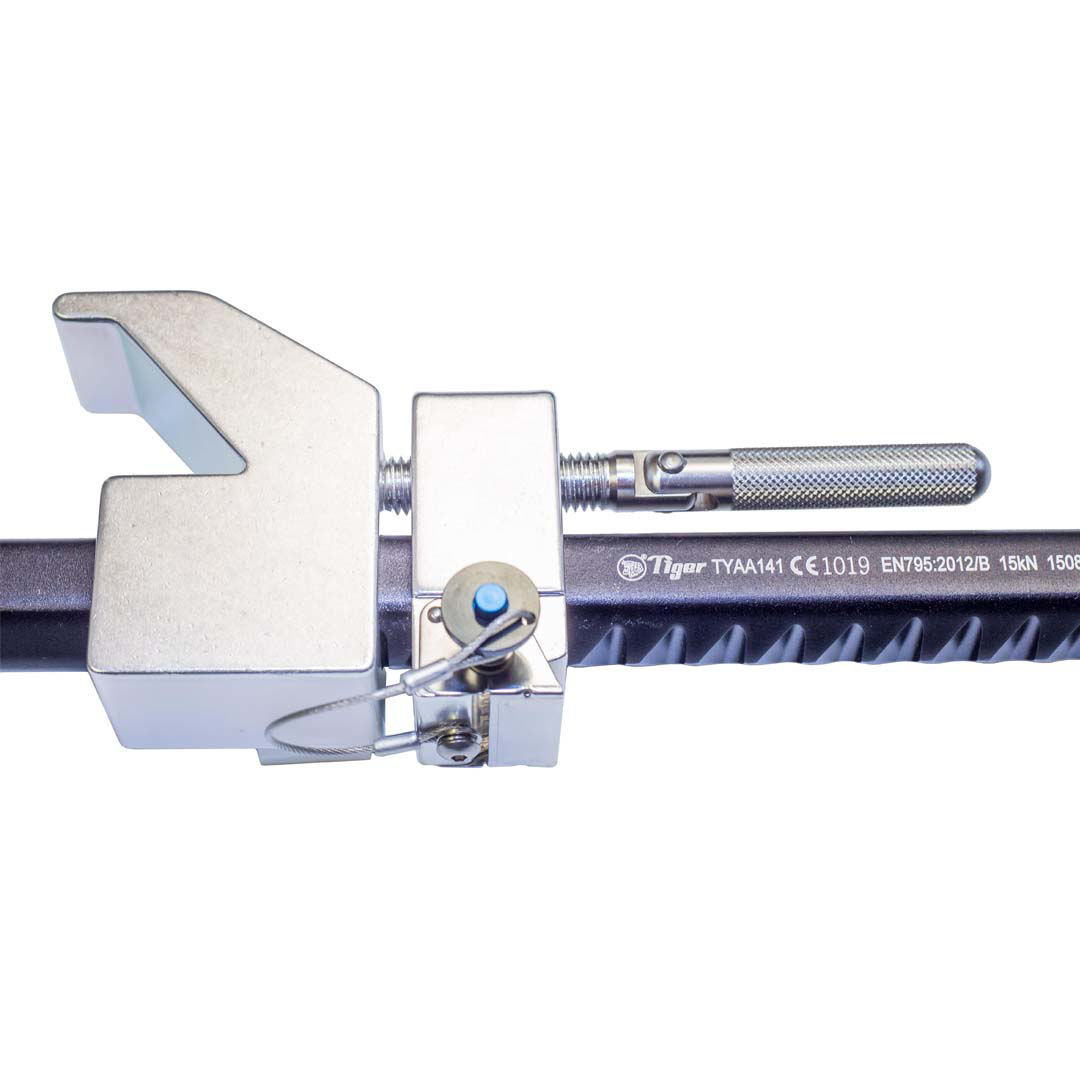

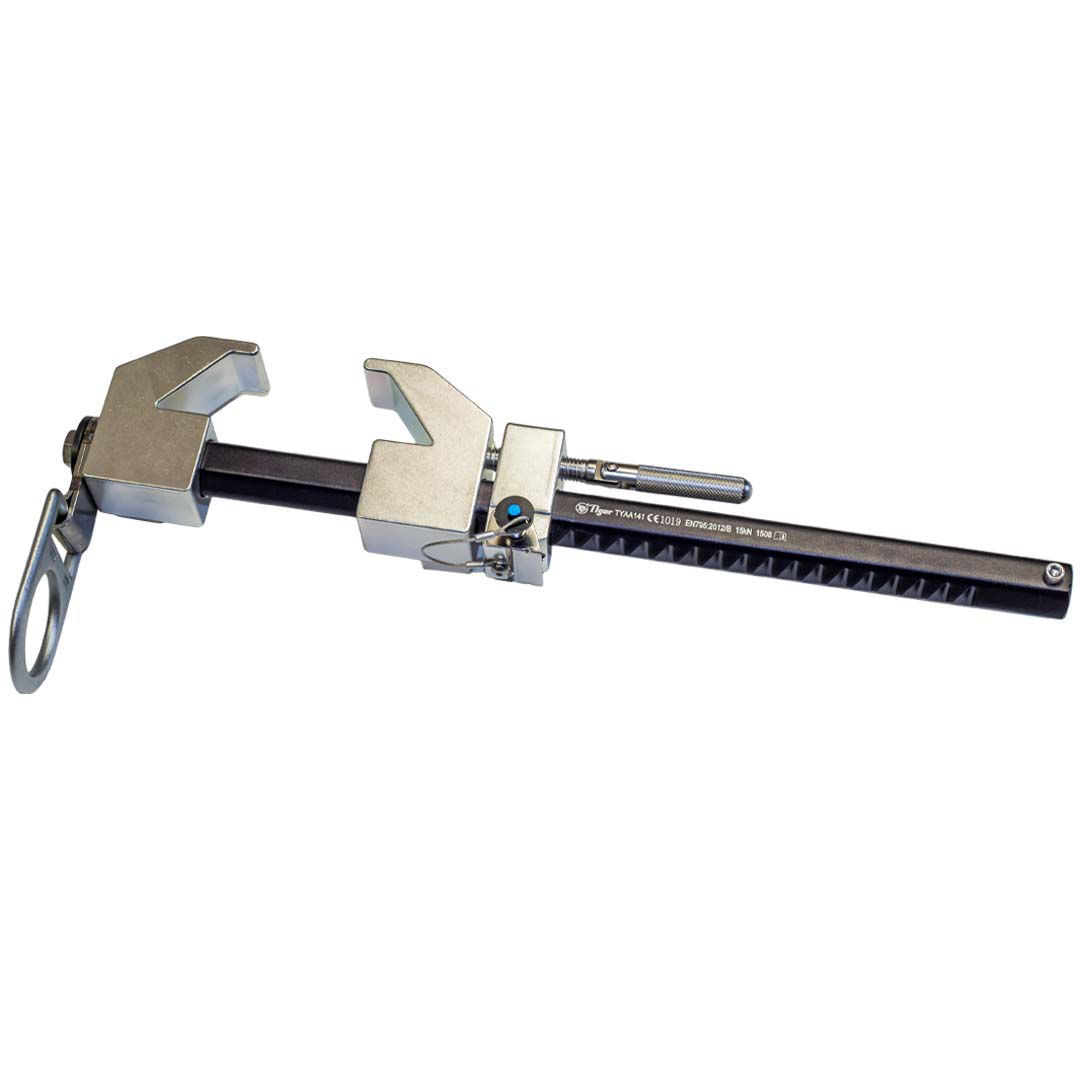

Tiger TYAA14 Single-Jaw Sliding Beam Anchor


Tiger Beam Anchors are used as anchorage connectors for personal fall arrest systems.

They are designed to be attached to Horizontal I-Beams with an attached personal fall arrest system (full body safety harness, shock absorbing lanyard or fall arrest block).

This Tiger single jaw sliding clamp can also be attached to Vertical I-Beams.


Main Features

  • Anchorage connectors for personal fall arrest systems
  • Quick and versatile anchorage point for personal fall protection equipment
  • Unit weight from 2.5kg – 3.1kg
  • Minimum Breaking Strength 22.3 kN (5,000 lb/2.27 tonne)
  • Easy adjustment
  • Capacity 140kg
  • Beam width ranges 2.5" to 24", 6.35cm to 60cm


Minimum Breaking Strength: 22.3 kN (5,000 lb/2.27 tonne)


Beam Flange Sizes: The Fixed Beam Anchor may only be installed on beams with flanges within the adjustment range of the model.


Capacity: This Fixed Beam Anchor is designed for one person use only, with a combined weight (clothing, tools, etc.) of no more than 310 lbs (140kgs). No more than one personal protective system may be connected to this equipment at one time.


Data Sheet

Tiger TYAA14 Single-Jaw Sliding Beam Anchor


Tiger Beam Anchors are used as anchorage connectors for personal fall arrest systems.

They are designed to be attached to Horizontal I-Beams with an attached personal fall arrest system (full body safety harness, shock absorbing lanyard or fall arrest block).

This Tiger single jaw sliding clamp can also be attached to Vertical I-Beams.


Main Features

  • Anchorage connectors for personal fall arrest systems
  • Quick and versatile anchorage point for personal fall protection equipment
  • Unit weight from 2.5kg – 3.1kg
  • Minimum Breaking Strength 22.3 kN (5,000 lb/2.27 tonne)
  • Easy adjustment
  • Capacity 140kg
  • Beam width ranges 2.5" to 24", 6.35cm to 60cm


Minimum Breaking Strength: 22.3 kN (5,000 lb/2.27 tonne)


Beam Flange Sizes: The Fixed Beam Anchor may only be installed on beams with flanges within the adjustment range of the model.


Capacity: This Fixed Beam Anchor is designed for one person use only, with a combined weight (clothing, tools, etc.) of no more than 310 lbs (140kgs). No more than one personal protective system may be connected to this equipment at one time.


Data Sheet
