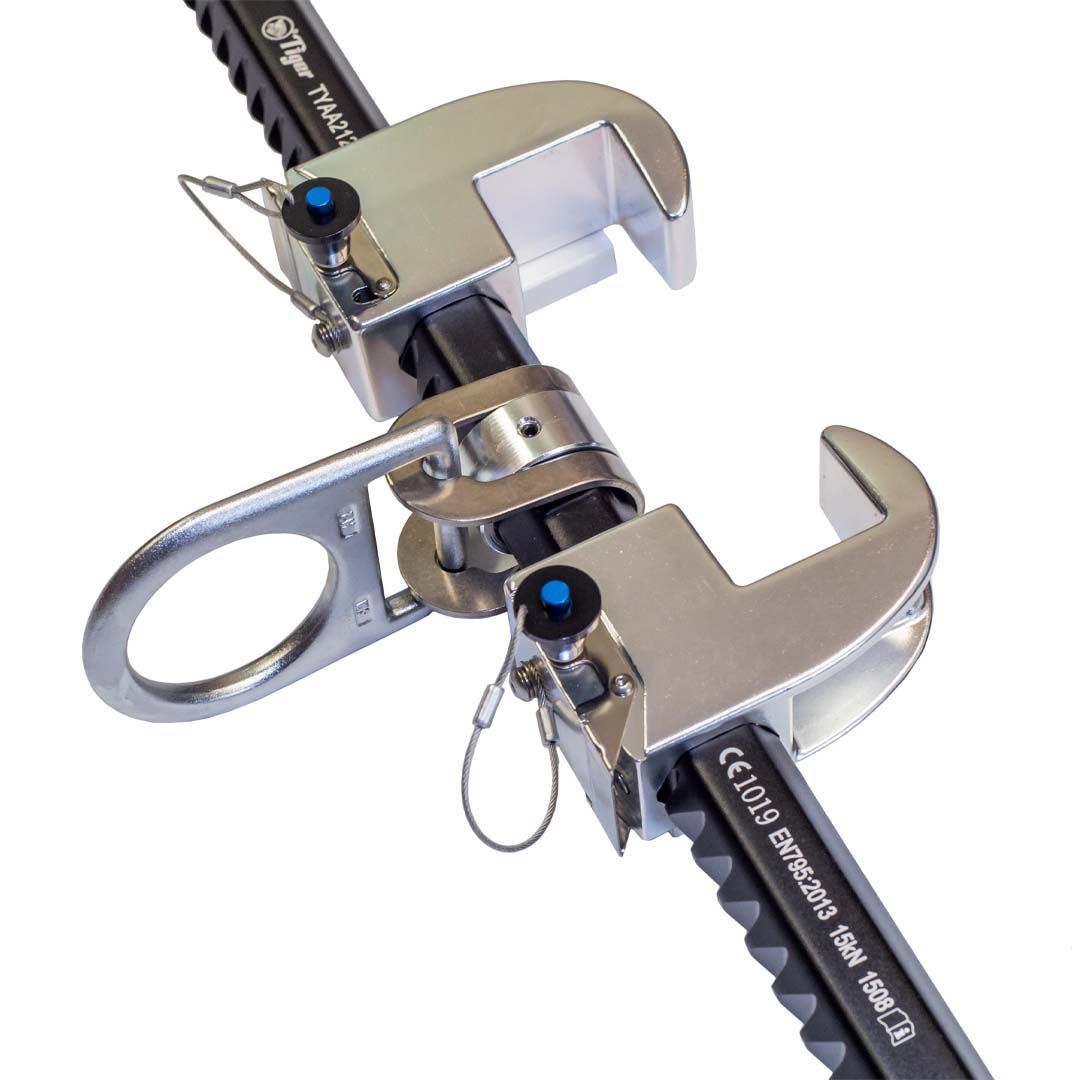

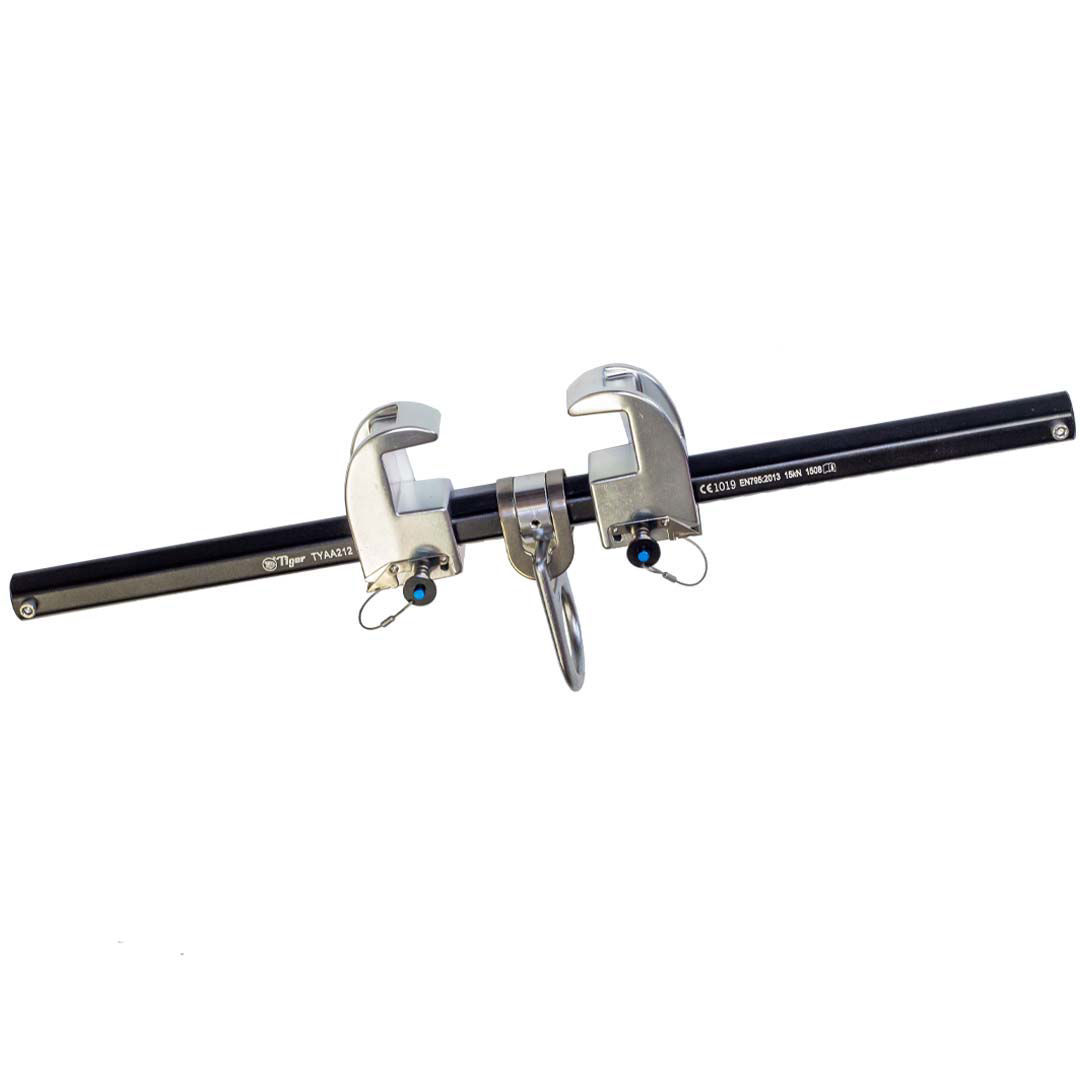

Tiger TYAA21 Two-Jaw Sliding Beam Anchor

Tiger Beam Anchors are used as anchorage connectors for personal fall arrest systems.

They are designed to be attached to Horizontal I-Beams with an attached personal fall arrest system (full body safety harness, shock absorbing lanyard or fall arrest block).

The Tiger single jaw sliding clamp can also be attached to Vertical I-Beams (see model TYAA14).

Main Features

• Anchorage connectors for personal fall arrest systems
• Quick and versatile anchorage point for personal fall protection equipment
• Unit weight from 1.9kg – 2.5kg
• Minimum Breaking Strength 22.3 kN (5,000 lb/2.27 tonne)
• Easy adjustment
• Capacity 140kg
• Beam width ranges 2.5" to 24", 6.35cm to 60cm

Minimum Breaking Strength: 22.3 kN (5,000 lb/2.27 tonne)

Beam Flange Sizes: The Fixed Beam Anchor may only be installed on beams with flanges within the adjustment range of the model.

Capacity: This Fixed Beam Anchor is designed for one person use only, with a combined weight (clothing, tools, etc.) of no more than 310 lbs (140kgs). No more than one personal protective system may be connected to this equipment at one time.

Data Sheet
