3M™ DBI-SALA® 8000119 Davit Arm Systems & Components

Description

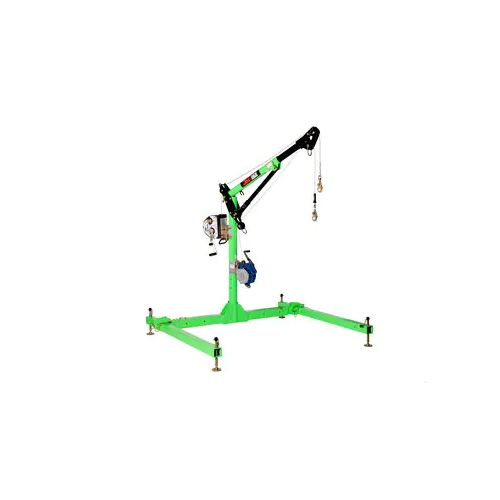

3M™ DBI-SALA® Confined Space HC (High Capacity) Long Reach Davit System is constructed of powder-coated aluminium, and features a modular design for easy transport and storage. Our system is adjustable providing flexibility during installation. This product is certified to EN795:2012, CEN/TS 16415:2013, EN1496:2012, and meets the requirements of machinery directive 2006/42EC for material handling.

Where an adjustable confined space entry system is required, use 3M™ DBI SALA® Confined Space HC (High Capacity) Long Reach Davit System. Our long reach davit system features a modular design, allowing it to be separated into multiple pieces for easy transport and storage. Davit arm height and reach are both adjustable, and securely locked using detent pins which are attached using retracting pin lanyards that help prevent breaks and snags. It's constructed primarily of custom extruded aluminium, and finished in a mixture of hi visibility green and gloss black powder coatings. The system width is adjustable and locked using detent pins providing flexibility during installation. This base is equipped with Integrated alignment features that enable easy assembly, and integrated levelling feet and level indicators which help ensure proper setup. Versus previous 3M™ DBI SALA® models, a larger safe working coverage area is provided with this base and the height adjustment process can be two times faster. Furthermore, accompanying davit arms can be used in all pin positions, and with equipment (SRL/Winch) front or back mounted.   Four independent anchorage locations are available and certified to EN795:2012 for fall arrest. Multiple user fall arrest is supported for up to two users weighing 140 kg each, meeting the requirements of CEN/TS 16415:2013. Material handling capabilities up to 205 kg are made possible by meeting the requirements of the machinery directive for manually operated lifting 2006/42EC.   When it comes to confined space entry/rescue, it's essential that equipment operates perfectly and quickly. 3M has an extensive line of rescue and retrieval systems with decades of proven field service. Safety engineers and site directors trust 3M™ DBI SALA® for the type of high quality, rugged systems that will ensure top performance when it is needed the most.

Details

• Modular design can be separated for easy transportation and storage, and provides a complete confined space rescue and work support system
• System comes with 3-piece base, 84 cm mast extension and long reach davit arm
• Adjustable offset from 69 cm to 112 cm (27 in. to 44 in.)
• Adjustable vertical height from 198 cm to 255 cm (78 in. to 100 in.)
• 180 degree davit mast rotation
• Adjustable width base design with integrated levelling feet and indicator
• Modular design for transport and storage
• Fluorescent green powder coated finish for high visibility
• Short reach davit and large base version also available
• Certified to EN795:2012, EN1496:2006, & CEN/TS 16415:2013
• Meets the requirements of the machinery directive 2006/42/EC for manually-operated lifting up to 340 kg with approved bases.
• Replaces Manufacturer Part Number 8568040
• Replaces Manufacturer Part Number 8568040
