Abtech Configurable Davit

The Configurable Davit is a configurator that allows you to select a Davit specifically to your requirements within the Abtech range of davit components.

Using the option selectors on the right side of this page you may select which sizes/attachments you require on your davit and pricing will change automatically to reflect these choices. If however you require further assistance or wish to speak to our technical team please call us on 0800 678 5708.

Selection options include; Socket Plates, Lower Arms, Upper Arms and Winches/Fall arrest devices.

Please note that base and winch pictured are not included with the davit and must be purchased seperately.

Upper Arms:

• Small - 28" (711mm) Reach, 54" (1390mm) Height
• Large - 28" (711mm) Reach, 66" (1676mm) Height



Lower Arms:

• Small - 40" (1016mm) Height
• Large - 52" (1320mm) Height

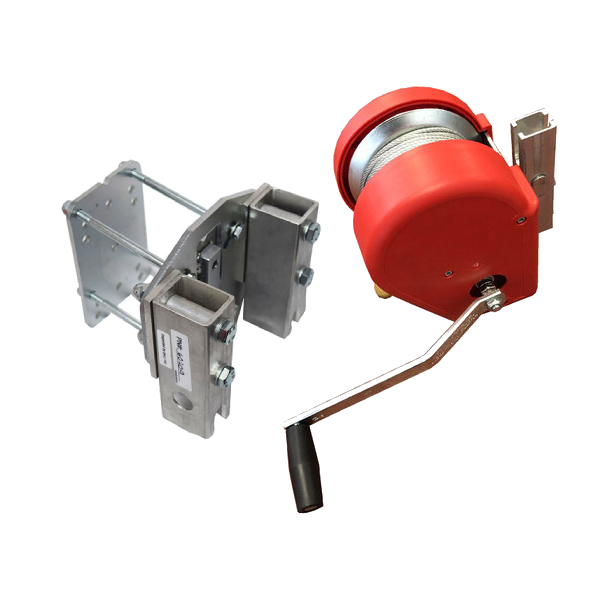

Man Riding Winches:

• 45m - 141kg WLL (282kg Reeved)
• Certified to EN1496



Materials Winch:

• 30m - 315kg WLL

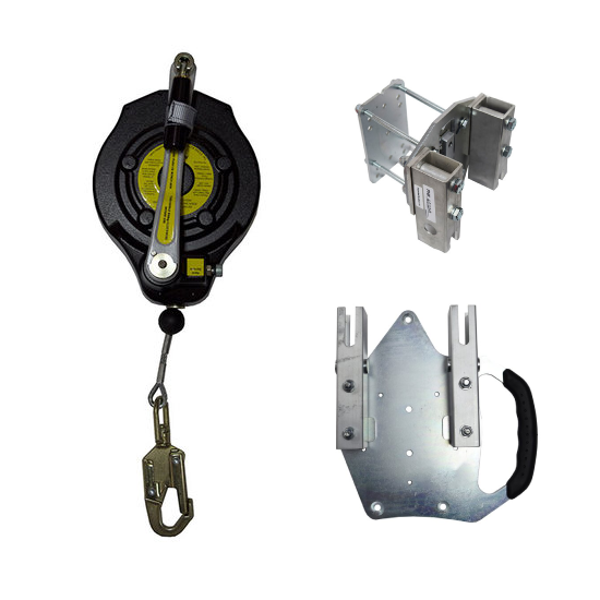

Fall Arrest Devices:

• 15m - 5mm Galvanised Cable, Swivel Anchor Eye & Indicator Hook*
• (*Can be used for Fall Arrest or as a Winch)



Fall Arrest & Auto Descent:

• 34m Fall Arrest Device, 5mm Galvanised Cable
• 34m Fall Arrest Recovery Winch, 5mm Galvanised Cable
• 18m Fall Arrest / Auto Descender, 5mm Galvanised Cable

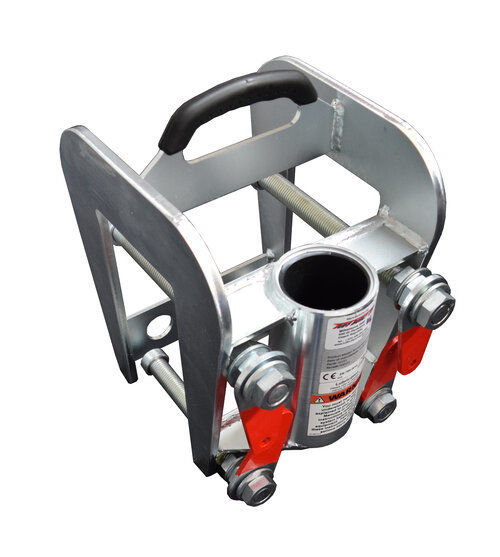

Socket / Base Plates:

• 30031 Floor Mount
• 30032 Wall Mount
• 30023 Flush Floor Mount (For casting into fresh concrete)
• 30021 Flush Floor Mount (For casting into existing concrete)
• 30080 Deck Mount
• 30036 2.25" (57mm) Barrel Mount - Shoring & Trench Boxes
• 30161 5" (127mm) Barrel Mount - Shoring & Trench Boxes
• 30029 2.25" - 25" (57mm - 635mm) Adjustable Barrel Mount - Shoring and Trench Boxes
• 30073 Counterweight Base
• 30445 Counterweight Cart Base



*All above attachments are priced with the neccessary brackets for attachment onto the davit mast.
