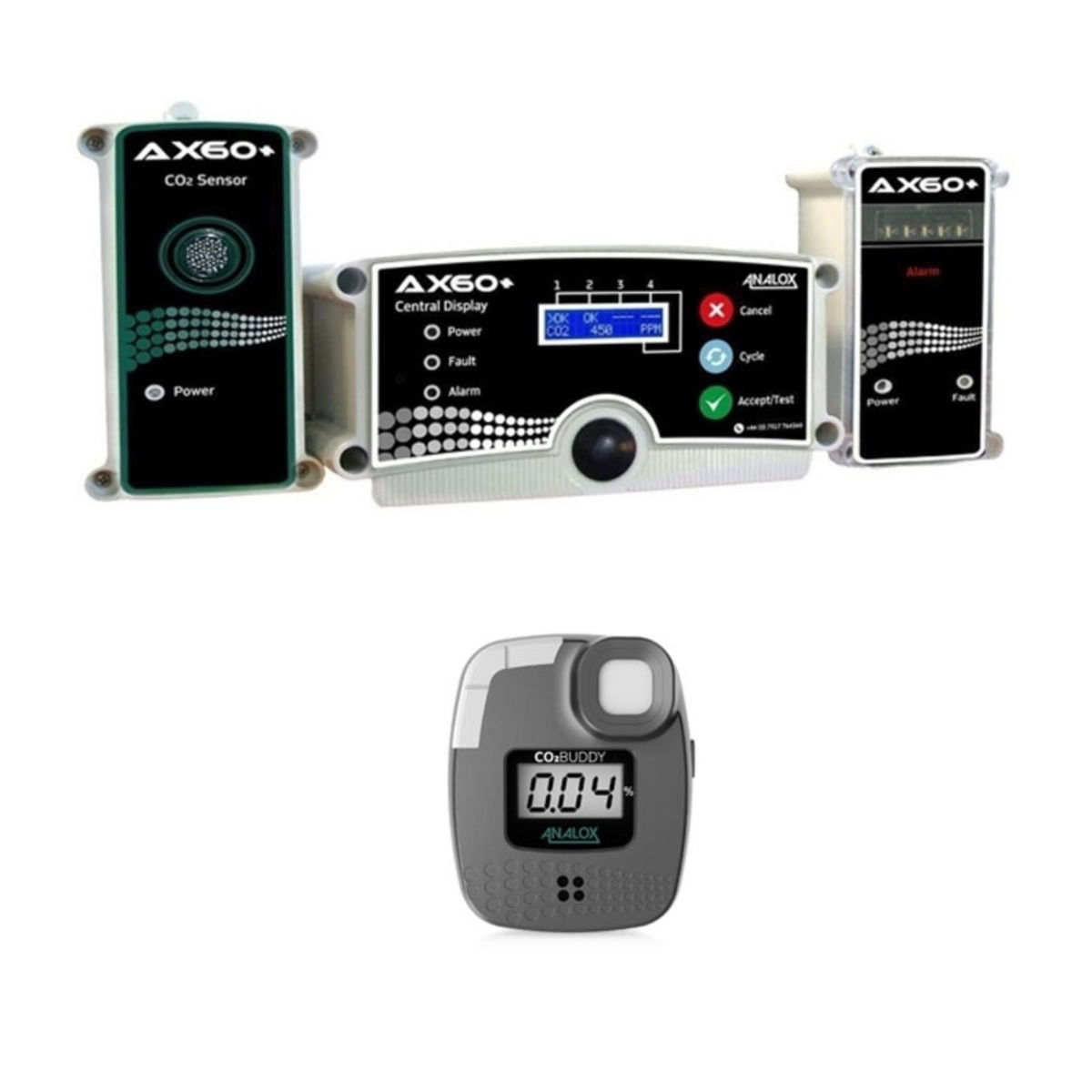

Analox CO2 Package

Analox - AX60 and CO2 Buddy package

Included

1 x Central display unit

1 x Ax60+ CO2 Sensor Unit

1 x Ax60+ Alarm Unit (blue strobe)

1 x Quick connect with universal power supply

1 x Hand held C02 Buddy

AX60

The Ax60+ is a wall-mountable multi gas monitor for detecting carbon dioxide.

The Ax60+ multi gas monitor offers the additional functionality of being able to add modular sensors, creating a fully flexible solution.

The CO₂ sensor is set by default to trigger a low-level alarm at 1.5% CO₂, an evacuation alarm at 3% CO₂ and a time-weighted average alarm (TWA) of 0.5% CO₂ measured over eight hours.

Alarm set-points can be fully customised by the user to adhere to specific local regulations.

The O₂ sensor available to order now, provides an early warning of both oxygen depletion and oxygen enrichment.

The O₂ sensor is set by default to trigger low-going alarms at both 19.5% and at 18% and a high-going alarm at 23%. The alarm setpoints can be changed by the user. Warnings are announced by high-visibility strobe lights and high-volume sounders.

The CO₂ and O₂ sensors are interchangeable and can be fully integrated as part of a multi-point, multi-gas detection and alarm system.

Key features of the Ax60+ wall mountable multi gas monitor

• Multi-point, multi-gas, distributed monitoring system
• 4-channel flexibility allowing any sensor combination - both now and in the future
• Central display unit for remote operation and control
• User-configurable alarms, setpoints and relay outputs
• Built-in software for operation and maintenance tasks
• Relay 'failsafe options'
• Improved accuracy and calibration for CO₂ channels
• Meets TUV, DIN, NFPA, IFC and OSHA requirements
• Up to five year sensor and electronics warranty
• Virtually maintenance free
• The Ax60+ has 2 built in relays as standard.

CO2 Buddy

The CO2Buddy personal alarm is designed to detect carbon dioxide (CO2) and warn of any dangerous levels in confined spaces, providing continuous protection for those working in an environment where CO2 is present.

This extremely lightweight personal alarm can be easily clipped to a pocket or belt, or can be attached to a lanyard. The Analox CO2Buddy is suitable for a wide variety of applications where CO2 is used including pub and bar cellars, walk in coolers, fast food outlets, agricultural grow houses, medical laboratories and food packaging plants.

The Analox CO2Buddy ensures personal protection for delivery drivers, servicing engineers and maintenance personnel who work in multiple locations where CO2 is used but is not guaranteed to be monitored by a fixed system.

The monitor is charged via a Micro USB cable, and is easy and convenient to keep fully powered. The CO2Buddy is a robust, but lightweight safety alarm from Analox.

This monitor complies with standards including EH40 in Europe and OSHA throughout the US. Employees should not be exposed to potentially dangerous levels of CO2 as it can prove to be highly toxic in very small concentrations.

The CO2Buddy has two alarm levels (low and high) which are uniquely identified to the user through different audible and visual sequences. CO2Buddy also monitors a time weighted average (TWA) of exposure to CO2 over an eight hour period and will go into alarm if the TWA of CO2 is above 0.5%. The low and high alarm levels can easily be altered from the factory defaults by selecting from a choice of alarm configurations during commissioning of a unit.

Alarm configurations supported include 1.5% and 3%, 0.5% and 1.5%, 1.5% and 4%, 1% and 2%.

Key Features

Lightweight - Max weight 80g

Rechargeable battery Single button operation

Fresh air calibration

Low maintenance

Choice of low and high alarm point configurations available

TWA Alarm

System Specifications

Display: LCD Power: Internal battery providing a minimum of 12 hours of operation on a single charge with low battery warning

Max Dimensions: 72.5(l) x 62.5(w) x 33(d) mm

Charging: Via Micro USB cables

Mounting: pocket, belt or lanyard

Approvals: CE, FCC

Alarm indicators: Audible, Red Strobe, Vibration
