ATEX HT-500 RECHARGEABLE HEADTORCH

Duration at different power levels: 7, 12, 17 & 23 hrs

Manufacturer: PETZL
SKU: HT-500
£420.00 inc vat £350.00 excl vat
decrease increase

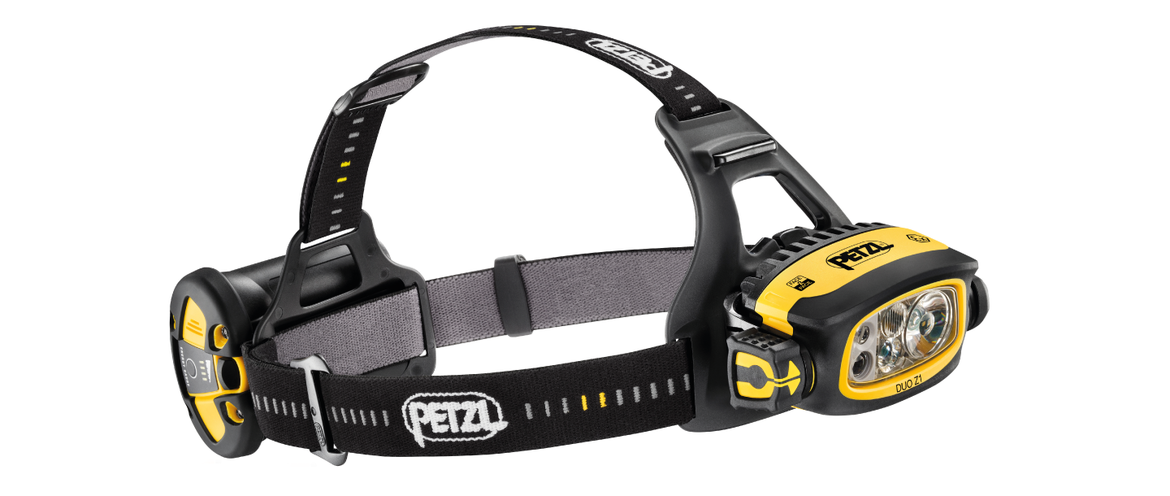

ATEX HT-500 Petzl Duo Z1 RECHARGEABLE HEADTORCH

Product featured is ATEX Zone 1 and Zone 21 Headtorch Complete with Lithium Ion batteries in compliance with section II of PI967 (<4 cells/2 batteries) UN3481.

Available from Safety Gear Store, the HT-500 Petzl Duo Z1 is a powerful, Zone 1 Rechargeable multi-beam Headtorch for use in Hazardous Areas, featuring four lighting modes and a maximum output of 360 lumens on BOOST mode.

PRODUCT INFORMATION

HT-500
ZONES: 1, 2, 21 AND 22

The DUO Z1 is a headlamp with a maximum 360 lumens of lighting in BOOST mode that runs on a rechargeable battery. It is multi-beam, and has four lighting modes, making it adaptable to every situation: close-range work, proximity, movement and long-range vision. Featuring the FACE2FACE anti-glare function, the DUO Z1 headlamp allows those working in a group to face each other without blinding one another, enabling them to work more effectively together. It can be worn on VERTEX and STRATO helmets, thanks to the included mounting plates. It meets ATEX zone 1/21 (II 2 GD Ex ib IIB T4 Gb IIIB T135° C Db) certification requirements for work in hazardous areas.

Light output/duration/power

  • Long life LED light source
  • Multiple beam options for varying work tasks: BOOST mode 360lm, distance vision 140lm, movement 300lm, proximity 170lm & close range work 70lm
  • Duration at different power levels: 7, 12, 17 & 23 hrs.
  • Additional ‘reserve mode’ provides 10lm for 1.5 hrs
  • Rechargeable Lithium-Ion battery charges in 8 hrs.
  • Flood, spot and mixed beam options, depending on power setting

Certification

  • ATEX Zone 1/21
  • T4 temperature class
  • IP67 water and dust tight

Features

  • FACE2FACE anti-glare feature, allows users to face one another without blinding
  • Robust, reliable and proven materials
  • Ergonomic design
  • Compact and lightweight
  • Large tactile switch (easy to use even when wearing gloves)
  • Highly robust
  • Helmet ready with mounting plates included for VERTEX and STRATO helmets

Including FACE2FACE anti-glare function allowing users to face one another without blinding

Easily operational with either gloved or non gloved hands

Can be worn on VERTEX and STRATO helmets thanks to included mounting plates

Data Sheet

TECHNICAL INFORMATION

PRODUCT REFERENCE HT-500
PRODUCT DESCRIPTION ATEX Rechargeable Headtorch
CODEINDUSTRIALII 2 GD Ex ib IIB T4 Gb IIIB T135° C Db
TYPE OF PROTECTION 'ib' intrinsic safety
AREA OF CLASSIFICATION (GAS) Zone 1
TEMP. CLASSIFICATION (GAS) T4
AMBIENT TEMPERATURE -20° C to +40° C
AREA OF CLASSIFICATION (DUST)Zone 21
MAX SURFACE TEMPERATURE (DUST)T135° C
CERTIFICATE 17ATEX3009X
BEAM TYPE Flood, Focused or Mixed
LIGHT SOURCE:TYPELED
OUTPUT360 lumens
POWER SOURCE:  PART NUMBERHT-500/ACCU2
TYPELithium-Ion ACCU 2 DUO Z1 battery
VOLTS3.7 V
RECHARGE TIME8 h
LIGHT DURATION

Up to 23 hrs

(Reserve mode 10lm for 1.5hrs)

INGRESS PROTECTION IP67
WEIGHT (INC. CELLS) 370 g
PRODUCT REFERENCE HT-500

Other products available in this range include:

HT-500/5 5 Headtorch 100-230V AC Charging Rack c/w 5 X HT-500
HT-500/ACCU2 Rechargeable Battery for the HT-500 Headtorch
HT-500/ADPT HT-500 Pro Adaptor Mount For Hard Hats
HT-500/ACCU2 Rechargeable Battery for the HT-500 Headtorch

ATEX HT-500 Petzl Duo Z1 RECHARGEABLE HEADTORCH

Product featured is ATEX Zone 1 and Zone 21 Headtorch Complete with Lithium Ion batteries in compliance with section II of PI967 (<4 cells/2 batteries) UN3481.

Available from Safety Gear Store, the HT-500 Petzl Duo Z1 is a powerful, Zone 1 Rechargeable multi-beam Headtorch for use in Hazardous Areas, featuring four lighting modes and a maximum output of 360 lumens on BOOST mode.

PRODUCT INFORMATION

HT-500
ZONES: 1, 2, 21 AND 22

The DUO Z1 is a headlamp with a maximum 360 lumens of lighting in BOOST mode that runs on a rechargeable battery. It is multi-beam, and has four lighting modes, making it adaptable to every situation: close-range work, proximity, movement and long-range vision. Featuring the FACE2FACE anti-glare function, the DUO Z1 headlamp allows those working in a group to face each other without blinding one another, enabling them to work more effectively together. It can be worn on VERTEX and STRATO helmets, thanks to the included mounting plates. It meets ATEX zone 1/21 (II 2 GD Ex ib IIB T4 Gb IIIB T135° C Db) certification requirements for work in hazardous areas.

Light output/duration/power

  • Long life LED light source
  • Multiple beam options for varying work tasks: BOOST mode 360lm, distance vision 140lm, movement 300lm, proximity 170lm & close range work 70lm
  • Duration at different power levels: 7, 12, 17 & 23 hrs.
  • Additional ‘reserve mode’ provides 10lm for 1.5 hrs
  • Rechargeable Lithium-Ion battery charges in 8 hrs.
  • Flood, spot and mixed beam options, depending on power setting

Certification

  • ATEX Zone 1/21
  • T4 temperature class
  • IP67 water and dust tight

Features

  • FACE2FACE anti-glare feature, allows users to face one another without blinding
  • Robust, reliable and proven materials
  • Ergonomic design
  • Compact and lightweight
  • Large tactile switch (easy to use even when wearing gloves)
  • Highly robust
  • Helmet ready with mounting plates included for VERTEX and STRATO helmets

Including FACE2FACE anti-glare function allowing users to face one another without blinding

Easily operational with either gloved or non gloved hands

Can be worn on VERTEX and STRATO helmets thanks to included mounting plates

Data Sheet

TECHNICAL INFORMATION

PRODUCT REFERENCE HT-500
PRODUCT DESCRIPTION ATEX Rechargeable Headtorch
CODEINDUSTRIALII 2 GD Ex ib IIB T4 Gb IIIB T135° C Db
TYPE OF PROTECTION 'ib' intrinsic safety
AREA OF CLASSIFICATION (GAS) Zone 1
TEMP. CLASSIFICATION (GAS) T4
AMBIENT TEMPERATURE -20° C to +40° C
AREA OF CLASSIFICATION (DUST)Zone 21
MAX SURFACE TEMPERATURE (DUST)T135° C
CERTIFICATE 17ATEX3009X
BEAM TYPE Flood, Focused or Mixed
LIGHT SOURCE:TYPELED
OUTPUT360 lumens
POWER SOURCE:  PART NUMBERHT-500/ACCU2
TYPELithium-Ion ACCU 2 DUO Z1 battery
VOLTS3.7 V
RECHARGE TIME8 h
LIGHT DURATION

Up to 23 hrs

(Reserve mode 10lm for 1.5hrs)

INGRESS PROTECTION IP67
WEIGHT (INC. CELLS) 370 g
PRODUCT REFERENCE HT-500

Other products available in this range include:

HT-500/5 5 Headtorch 100-230V AC Charging Rack c/w 5 X HT-500
HT-500/ACCU2 Rechargeable Battery for the HT-500 Headtorch
HT-500/ADPT HT-500 Pro Adaptor Mount For Hard Hats
HT-500/ACCU2 Rechargeable Battery for the HT-500 Headtorch
