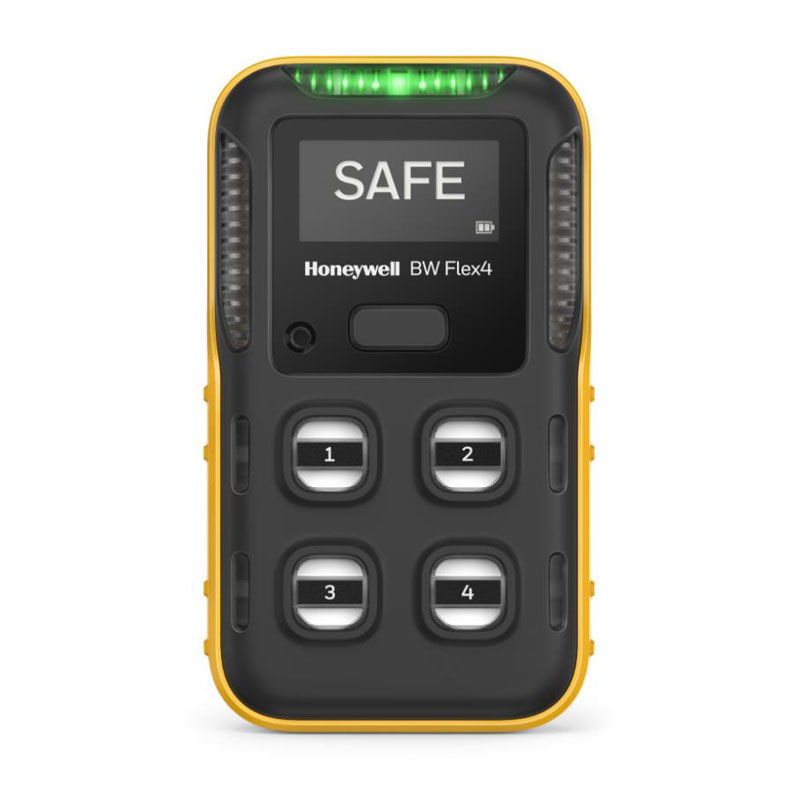

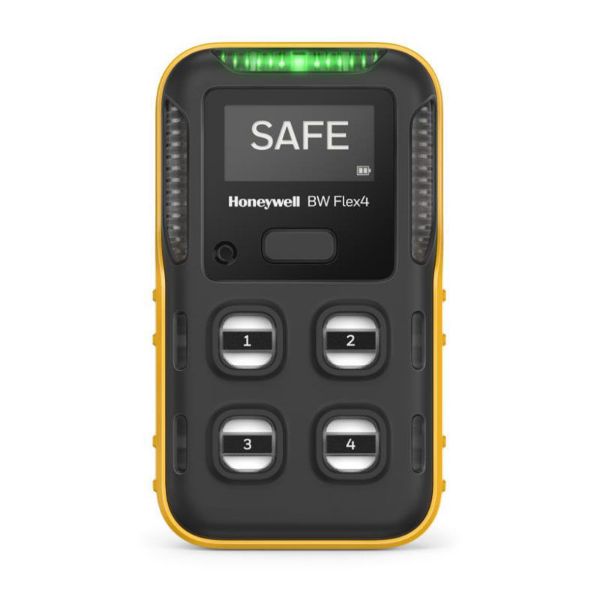

BW Flex4 Multi Gas Detector CPD-W6X1H1M1-Y-00



Honeywell BW Flex Multi-Gas Monitor: Intelligent Protection, Unmatched Reliability

Product Featured: BW Flex4 (CPD-W5X1H1M1-Y-00) detecting %LEL(F), O2, H2S, CO (Yellow)

Introducing Honeywell's next-generation multi-gas monitor, the BW Flex. Engineered to redefine safety and efficiency, this compact, lightweight, and incredibly user-friendly device leverages Honeywell BW gas detection expertise to deliver advanced protection in hazardous environments. Choose from over 15 sensor options to simultaneously detect up to four gas hazards, providing real-time readings at a glance.

Intelligent Sensing for Proactive Safety The Honeywell BW Flex integrates revolutionary i-Series intelligent sensors. These sophisticated sensors go beyond simple detection, offering advanced predictive insights such as real-time calibration notice, end-of-life information, and critical maintenance alerts. This proactive approach helps you avoid safety incidents, reduce the likelihood of equipment failure, and increase awareness for timely preventive action, ultimately minimising unexpected downtime.

Seamless Connectivity and Simplified Management Enhance your productivity with the BW Flex's effortless Bluetooth® pairing to your smartphone. With the Honeywell Safety Suite Device Configurator app (available via Safety Gear Store), you gain quick and precise control over device management, reporting, maintenance, and data analysis. Streamline tasks like incident recording and save valuable time with one-click data downloads for all instrument information.

Key Features & Benefits:

• Easy to Use: Small, lightweight, and wearable with intuitive one-button operation.
• Highly Accurate: Features a low-power infrared LEL sensor immune to silicone poisoning, ensuring reliable detection of combustible gases.
• Rapid Response: i-Series sensors respond to dangerous gas levels in seconds, even in extreme temperatures (-40°C to 60°C).
• Exceptional Battery Life: Enjoy up to two months of runtime on a single 4.5-hour charge (with the low-power IR LEL sensor), eliminating the need for daily charging and preventing unexpected downtime.
• Robust & Reliable: With IP66 and IP68 ingress protection, the BW Flex is built to withstand the toughest conditions.
• Smart Maintenance: The IntelliFlash™ green light confirms compliance, while an amber light instantly signals the need for maintenance.
• Comprehensive Compatibility: Wirelessly integrates with the IntelliDoX instrument management system and Honeywell Safety Suite via Bluetooth.
• Peace of Mind: Backed by a three-year warranty on both sensors and the detector.

Technical Specifications:

• Size:
  • With Alligator Clip: 108.2 mm x 61.5 mm x 43.2 mm (4.29 in x 2.44 in x 1.7 in)
  • With Klick Fast Stud: 108.2 mm x 61.5 mm x 37.8 mm (4.29 in x 2.44 in x 1.49 in)
• Weight:
  • With Catalytic LEL: 189 g (6.7 oz) with Alligator Clip, 173 g (6.1 oz) with Klick Fast Stud
  • With IR LEL: 186 g (6.6 oz) with Alligator Clip, 170 g (6.0 oz) with Klick Fast Stud
• Working Temperature: -40°C to 60°C (-40°F to 140°F); -20°C to 60°C (-4°F to 140°F) with Catalytic LEL sensor
• Working Humidity: 5% to 95% RH non-condensing
• Ingress Protection: IP66, IP68
• Alarms & Type: Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, Negative Drift, Over Limit, Multi-alarm
• Self-Test: Automatic diagnostic of sensor and circuitry on activation; analog sensor diagnostic every 10 minutes, digital sensor diagnostic every second.
• Typical Battery Life:
  • 40 days @ 8 hours/day with IR LEL
  • 15 hours with Catalytic LEL (with NDIR CH4 sensor)
• Connected Worker: Bluetooth® Low Energy (BLE) – Connects to Honeywell’s Safety Communicator App, Device Configurator App, and Safety Suite Device Configurator Software.
• User Options: Customizable High, Low, TWA, STEL alarm set points; Latching alarms; Calibration and/or bump test reminders; Worker and location assignments; "Always On" mode (options available via Device Configurator / Safety Suite Device Configurator).
• Certifications: ATEX, IEC Ex, contains FCCID, contains IC, CSA approval pending.
• Device Warranty: Three-year warranty for sensors and detector.

Available Accessories:

• Mains 5-way charger, BW ICON/FLEX GA-PA-1-MC5-UK
• USB Charger Cable CP-USB
• 5-way cradle charger, BW ICON/FLEX CP-C01-5
• IR connectivity kit GA-USB1-IR
• External Auxiliary Filter Kit, BW Flex/Flex-i CP-AF-K3
• Replacement External Filters (10pcs) CP-SS-AF-K1
• Calibration Cap, BW Icon/Flex CP-TC-1
• Manual aspirator pump kit with probe and filter (0.3 m/1 ft.) GA-AS02
• Neck strap with safety release GA-NS-1
• Short strap (6 in./15.2 cm) GA-LY-1
• Extension strap (4 ft./1.2 m) GA-ES-1
• Chest Harness GA-CH-2
