WLL: 2000 - 20,000kg
Various Models Available
£288.00 excl vat
£313.94 inc vat £261.62 excl vat

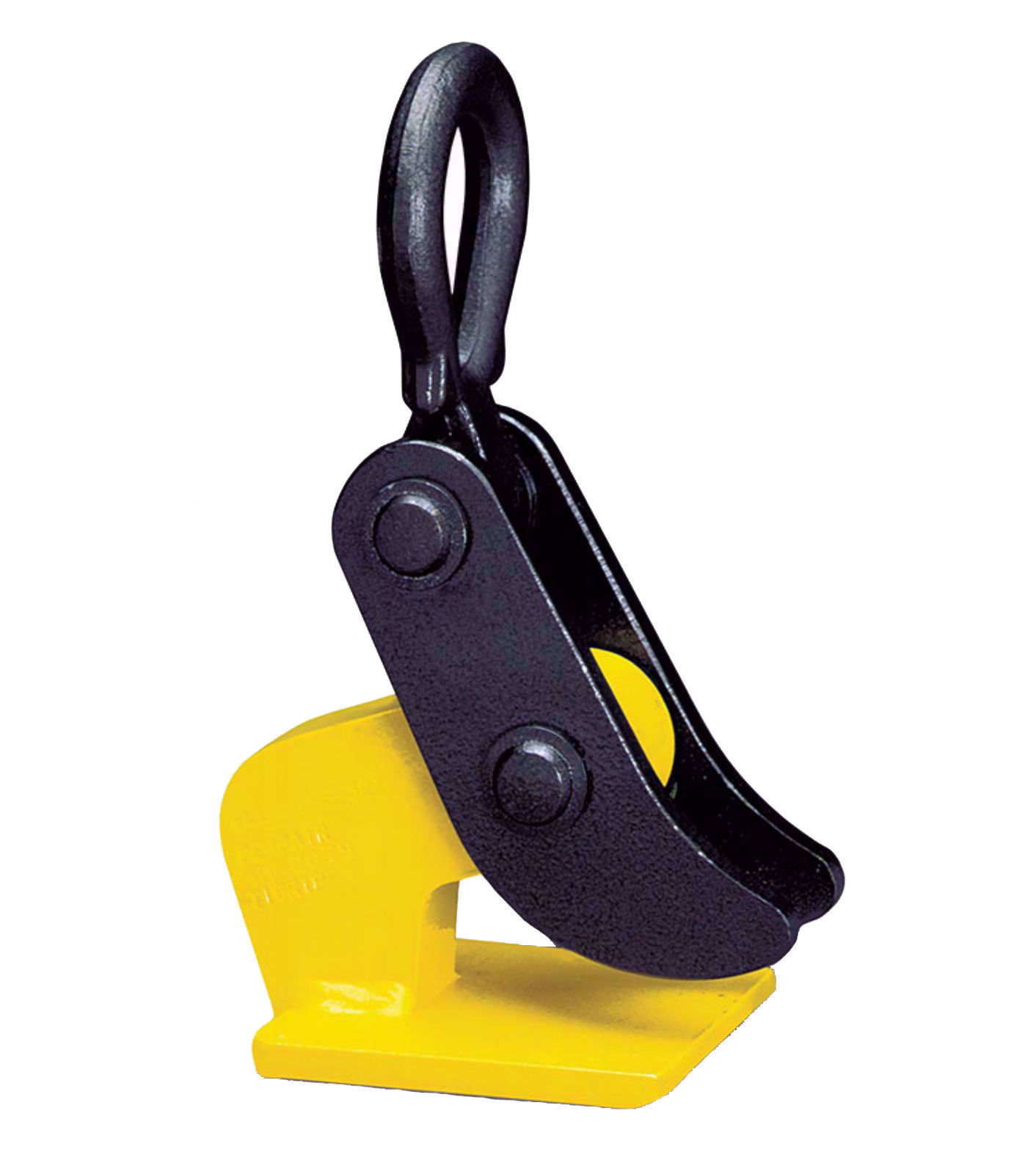

Camlok CH Horizontal Plate Clamps - Serrated Jaw
Industry standard horizontal plate clamps
The CH horizontal plate clamps have been specifically designed to be used in pairs for the transportation of plate bundles as well as single plates with a minimum thickness of 5mm.
A pair of clamps used with a two legged chain sling are suitable for small plates. It is recommended to use two pairs in conjunction with a spreader beam for handling of larger plates. These units are supplied as standard with a smooth jaw. There is also the option of hardened steel teeth jaws for special applications.
The HH horizontal plate clamps incorporate all of the features of the CH clamps, yet are manufactured from high strength steel giving them exceptionally low tare weights.
Workmanship and parts
These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs are available through the factory, or can be done by a competent person.
Models with Serrated jaws can only be used for single plates, NOT bundles
For short plates a single pair of of clamps can be used, for long plates a spreader beam is strongly advised.
The angle between the chain/rope legs must not exceed 45 degrees from vertical
This item is fitted with a single jaw
These units must NOT be used with endless chain slings.
Prices stated are per pair
