Crowcon Open Path Gas Detectors (FM)

FM approved, 3/4" cable entries
Detects combustible gases & vapours

Manufacturer: Crowcon

SKU: C03644

Range

Call for pricing

Qty:

Description

Crowcon Open Path Gas Detectors

Require Install, Commissioning, Calibration or Servicing?

Safety Gear Store are able to install, commission and service your fixed gas detection system. We offer a professional service from fully trained, certified and manufacturer approved engineers, we are also one of the only suppliers with engineers that carry spares in their vehicles to ensure a quick and efficient service that will enable you to continue using your facility.
For more information on what we offer please visit one of the below pages:

Fixed Gas Detection System Install and Commissioning

Fixed Gas Detection System Calibration and Servicing

Crowcon offers open-path infra-red (IR) gas detection systems based on well-proven technology for fast detection of combustible gases and vapours over a line-of-sight up to 200m long.

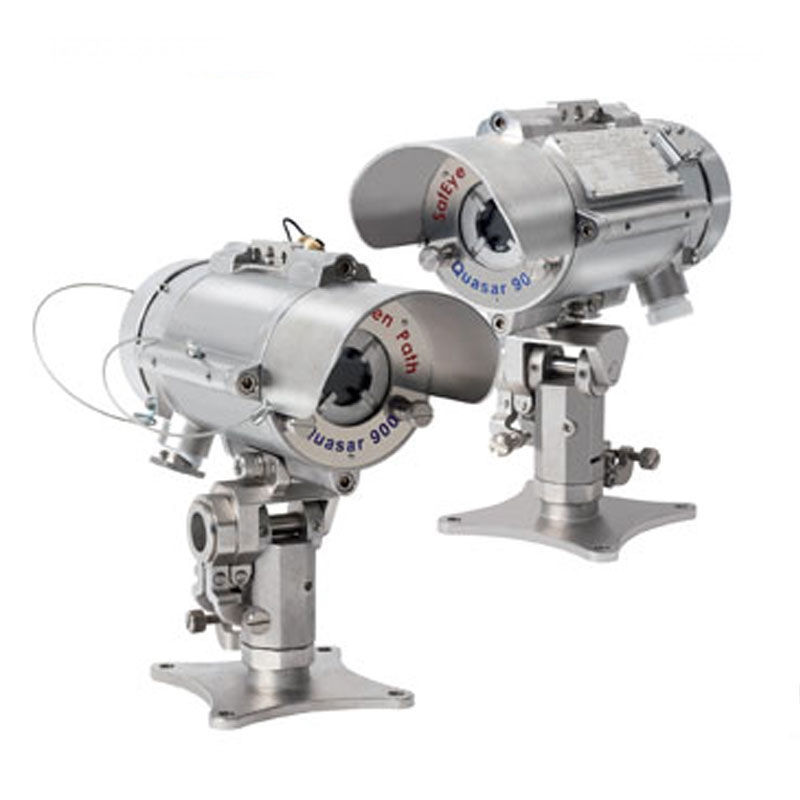

Product Freatured is the C03644 SafEye Quasar 901 Open Path IR Gas Detector, FM, 3/4" NPT cable entry 7-20m range. Spectrex Ref: QT-F112+QR-F112

Contact Safety Gear Store if detectors are required with ATEX and 1/2"NPT or FM and M25 entries.

Overview:

Using superior “Xenon Flash” technology the SafEye range is immune to false alarms caused by partial blockage and extreme weather conditions (fog, rain or snow) and direct or reflected sunlight, flame or other black body radiation sources.

SafEye Quasar 900

The New SafEye Quasar 900 is an open path detection system. It employs “spectral fingerprint” analysis of the atmosphere using the Differential Optical Absorption Spectroscopy (DOAS) technique. With a range from 7m up to 200m the Quasar 900 detects gas hazards in extremely harsh environments where dust, fog, rain, snow or vibration can cause a high reduction of signal.

The main stainless steel enclosure is Exd flameproof with an integral, segregated, Exe terminal section.
An I.S. communicator can be connected for diagnostic/maintenance purposes.
Includes heated windows to eliminate condensation and icing
HART capability for digital communication
Designed to meet SIL2 per IEC61508 and FM performance approved per FM6325 and tested per EN60079-29-4.

Duct Mounted SafEye Flammable Gas Detectors

Specially designed Duct Open Path Detectors designed and widely used to monitor ingress of hazardous flammable gas concentrations into air intakes of turbine engines and HVAC air ducts.

C03640	SafEye Quasar 901 Open Path IR Gas Detector, ATEX, M25 cable entry, 7-20m range. Spectrex Ref: QT-C111+QR-C111
C03641	SafEye Quasar 902 Open Path IR Gas Detector, ATEX, M25 cable entry 15-40m range. Spectrex Ref: QT-C211+QR-C111
C03642	SafEye Quasar 903 Open Path IR Gas Detector, ATEX, M25 cable entry 35-100m range. Spectrex Ref: QT-C311+QR-C111
C03643	SafEye Quasar 904 Open Path IR Gas Detector, ATEX, M25 cable entry 80-200m range. Spectrex Ref: QT-C411+QR-C111

FM approved versions with 3/4"* cable entries

C03644	SafEye Quasar 901 Open Path IR Gas Detector, FM, 3/4" NPT cable entry 7-20m range. Spectrex Ref: QT-F112+QR-F112
C03645	SafEye Quasar 902 Open Path IR Gas Detector, FM, 3/4" NPT cable entry 15-40m range. Spectrex Ref: QT-F212+QR-F112
C03646	SafEye Quasar 903 Open Path IR Gas Detector, FM, 3/4" NPT cable entry 35-100m range. Spectrex Ref: QT-F312+QR-F112
C03647	SafEye Quasar 904 Open Path IR Gas Detector, FM, 3/4" NPT cable entry 80-200m range. Spectrex Ref: QT-F412+QR-F112

SafEye Quasar 900 Series Accessories
Commissioning Kits - Quasar 900 OPIR Gas Detectors. Includes alignment telescope, magnetic mode selector, two function check filters, key for rear cover plus tools in a carry case. Includes USB / RS485 Harness converter kit (794079, non-Ex approved) for PC / laptop USB port, including software. Connects via RS485 terminals in safe area.

Product Code	Description
C03650/1	Quasar 900-Series OPIR Commissioning Kit: Methane Spectrex Ref: 888247-1
C03650/2	Quasar 900-Series OPIR Commissioning Kit: Propane Spectrex Ref: 888247-2
C03650/3	Quasar 900-Series OPIR Commissioning Kit: Ethylene Spectrex Ref: 888247-3

Converters and cables for use with clients PC/Laptop's.

C03654	Quasar OPIR HART Hand-held harness kit. Connects to the 900 OPIR I.S. port. Spectrex Ref: 888815
794079	USB/485 converter kit for PC USB port. Universal for all Flame and OPIR detectors. Download appropriate PC software from: https://www3.spectrex-inc.com/product-software.aspx Spectrex Ref: 794079

SafEye Quasar 900 Series Accessories
The following accessories may be used with any model from the Quasar 900 range.

C03648	Quasar OPIR Gas Detector Pole Mount (U-bolt, 5"). Spectrex Ref: 799225
C03649	Quasar Open Path IR Gas Detector Sun-shade. Spectrex Ref: 888263
C03652	Hand-held diagnostics unit. ATEX hazardous area certified (I.S.). Complete with converter and cable harness (1m), software and manual in case. Connects to 700 & 900 series detectors. Spectrex Ref: 888810
888816	Cable/converter to connect to 900 Series external connection port from mini laptop kit or USB/RS-485 harness converter kit. Safe area use only. Spectrex Ref: 888816

Accessories:
Below is a small selection of the accessories available for the Open Path Gas Detectors.

Swival mount - Made of stainless steel 316L, the swivel mount enables the detector to rotate up to 30º in all directions and fine alignment of up to 3º.
Tilt device - Stainless steel 316L, designed for easy and precise alignment. Enables the detector to rotate up to 30º in all directions and fine alignment of up to 5º.
Magnetic switch - The magnetic mode selector is used in the field to change the detector’s modes for alignment and calibration procedures.
Alignment telescope - Is used for simple on-site alignment of the detector with the light source.
Function check filter - Used for on-site functional testing of the detector.

Products specifications

Attribute name	Attribute value
Open Path IR Detectors	FM approved versions with 3/4" cable entries
