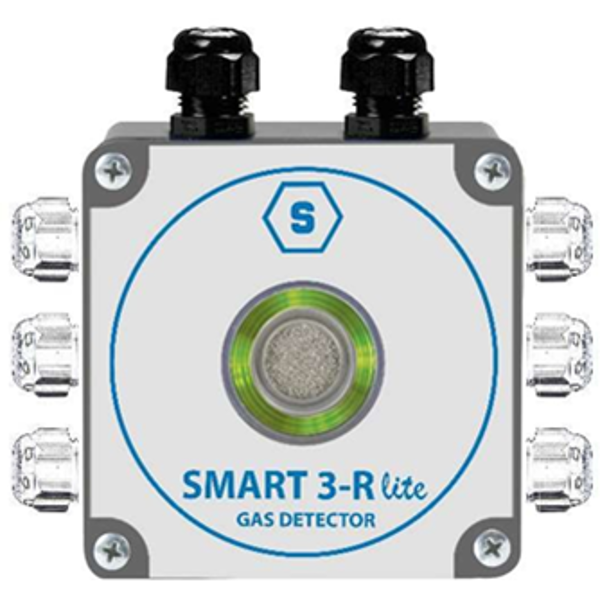

Crowcon SMART3-R LITE – refrigerant gases (Infrared sensor) Range 0-5000 ppm

Range: 0-5000 ppm
Manufacturer: Crowcon
SKU: Crowcon SMART3-R LITE – 5000ppm
  • *
£695.00 excl vat
£834.00 inc vat
decrease increase

Crowcon SMART3-R LITE – refrigerant gases (Infrared sensor) Range 0-5000 ppm


For a Full breakdown of all Crowcon SMART3 accessories, go HERE


The SMART3-R LITE allow to monitor A1 and A2L refrigerant gasses in machinery rooms and refrigeration plants.

The detectors employ a unique cost-effective IR sensor and provide 2- output relays. A front LED ring offers a visual indication of the detector' status while an internal buzzer activates to warn of any fault or alarm condition.

SMART3-R are rated to IP42 (IP54 on request) and feature one-man calibration via the STS/CKD+ series calibration keypad.


SMART3-R LITE satisfy the following standards:

  • EN 378-3
  • EN14624
  • EN 50676
  • IEC 60335-2-40 Annex LL
  • ISO 5149-3
  • F-Gas Regulation


SMART3-R LITE feature:

  • 2 pre-set output relays
  • Optional RS485 communication with STS/IDI card
  • Multicolour LED ring
  • Standard ranges: 0-20% LFL and 0-5000 ppm
  • Internal buzzer for audible warning
  • Ongoing system self-diagnosis
  • Standard 12-24 Vdc.

Crowcon SMART3-R LITE – refrigerant gases (Infrared sensor) Range 0-5000 ppm


For a Full breakdown of all Crowcon SMART3 accessories, go HERE


The SMART3-R LITE allow to monitor A1 and A2L refrigerant gasses in machinery rooms and refrigeration plants.

The detectors employ a unique cost-effective IR sensor and provide 2- output relays. A front LED ring offers a visual indication of the detector' status while an internal buzzer activates to warn of any fault or alarm condition.

SMART3-R are rated to IP42 (IP54 on request) and feature one-man calibration via the STS/CKD+ series calibration keypad.


SMART3-R LITE satisfy the following standards:

  • EN 378-3
  • EN14624
  • EN 50676
  • IEC 60335-2-40 Annex LL
  • ISO 5149-3
  • F-Gas Regulation


SMART3-R LITE feature:

  • 2 pre-set output relays
  • Optional RS485 communication with STS/IDI card
  • Multicolour LED ring
  • Standard ranges: 0-20% LFL and 0-5000 ppm
  • Internal buzzer for audible warning
  • Ongoing system self-diagnosis
  • Standard 12-24 Vdc.
Products specifications
Gases DetectedRefrigerant Gases
Gases DetectedCarbon Dioxide (CO2)
*
*
*
Products specifications
Gases DetectedRefrigerant Gases
Gases DetectedCarbon Dioxide (CO2)
