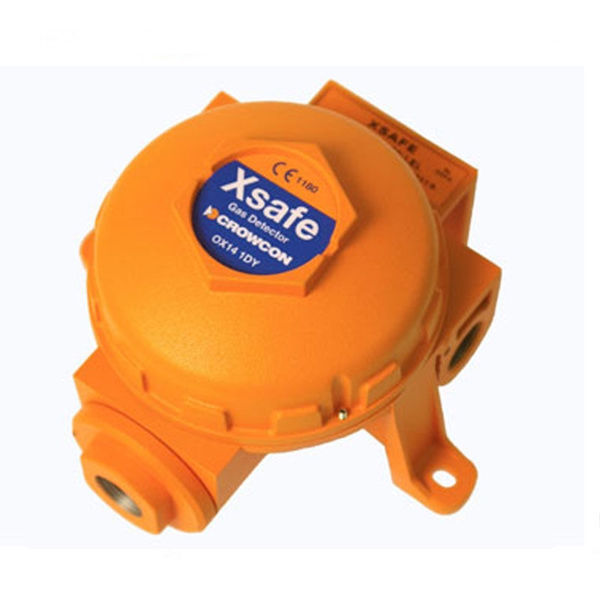

Crowcon Xsafe

Gas detection
Detects: Flammable & toxic gas

Be the first to review this product

Manufacturer: Crowcon

SKU: Xsafe

Call for pricing

Qty:

Description

Crowcon Xsafe

Require Install, Commissioning, Calibration or Servicing?

Safety Gear Store are able to install, commission and service your fixed gas detection system. We offer a professional service from fully trained, certified and manufacturer approved engineers, we are also one of the only suppliers with engineers that carry spares in their vehicles to ensure a quick and efficient service that will enable you to continue using your facility.
For more information on what we offer please visit one of the below pages:

Fixed Gas Detection System Install and Commissioning

Fixed Gas Detection System Calibration and Servicing

Overview:

The Xgard range of gas detectors has been specifically designed to meet your requirements. The dangers presented by toxic and flammable gases as well as oxygen deficiency vary with each application. Xsafe is a non-certified low cost catalytic bead type detector with 3-wire 4-20mA or mV bridge output.

Low cost of ownership

Designed for easy installation and maintenance – keeps costs down
Three junction box options – designed to make replacement of sensors and sinters extremely simple. Spare sensors simply plug-in
Many spare parts are common to all Xgard models – keeps spares holding requirements to a minimum

Flexible installation options

Designed for either wall or ceiling mounting – no need for additional brackets
Can accommodate M20, 1/2″ NPT or 3/4″ NPT cable glands – suits all site requirements
Accessories are available for duct mounting and sampling applications as well as remote gassing – simple sensor checking

Rugged and reliable

Manufactured using a choice of three materials: glass reinforced nylon, highly durable aluminium with a tough polyester coating, or 316 stainless steel for ultimate corrosion resistance – designed to operate even in the harshest environments
Spray deflectors and weatherproof caps are available for use in areas subject to regular wash-downs, or offshore environments
All models have been validated to the functional safety standard IEC 61508 (SIL 1 to SIL 3)

Specifications:

Size	156 x 166 x 111mm (6.1 x 6.5 x 4.3 inches)
Weight	1kg (2.2lbs)
Enclosure material	Aluminium
Ingress protection	IP65
Cable entries	1 x M20, 1/2 “NPT or 3/4 NPT* on right-side
Terminations	0.5 to 2.5mm2
Sensor type	Catalytic bead
Operating temperature	mV: -40 to +80°C (-40 to 176°F) mA: -40 to +55°C (-40 to 131°F)
Storage	-25°C to +65°C (-13°F to +149°F)
Humidity	10 to 95% RH
Repeatability Zero drift	<2% FSD (Typical) <2% FSD per Month (Typical)
Response time	T90 <15s (Typical)
OPerating voltage	mA: 10-30V dc mV: 2.0V dc
Power requirements	mA: 50mA at 24V dc 1.2W mV: 300mA (Typical)
Electrical output	mA: 3- wire 4-20mA (current sink or source) mV: 3- wire mV bridge Typical signal: 12-15mV/ %LEL CH4
Approvals	Not certified for use in hazardous environments Safe area only
EMC compliance	EN 50270 FCC Part 15 ICES- 003

*3/4 ” cable entry only available on aluminium juntion boxes.

Fixed-point flammable gas detector using a poison resistant pellistor contained within an aluminium enclosure which has one cable gland entry on the right-hand side, with 3-wire mV or 4-20mA output. Operating temperature -40 to +80°C (mV version), -40 to +55°C (mA version).
Notes:
Xsafe is NOT certified for use in a hazardous area.
enclosure options for Xsafe: Aluminium only

C01955	methane, mV version, M20 cable entry
C01957	methane, mV version, 1/2" NPT cable entry
C01958	propane (LPG), mV version, M20 cable entry
C01959	propane (LPG), mV version, 1/2" NPT cable entry
C01960	methane, 4-20mA version, M20 cable entry. Calibration: 100%LEL= 4.4%vol CH4
C01961	methane, 4-20mA version, 1/2" NPT cable entry. Calibration: 100%LEL= 4.4%vol CH4
C01962	propane (LPG), 4-20mA version, M20 cable entry. Calibration: 100%LEL= 1.7%vol Propane
C01963	propane (LPG), 4-20mA version, 1/2" NPT cable entry. Calibration: 100%LEL= 1.7%vol Propane
C011117	methane, 4-20mA version, M20 cable entry. Calibration: 100%LEL= 5%vol CH4
C011115	methane, 4-20mA version, 1/2" NPT cable entry. Calibration: 100%LEL= 5%vol CH4
C011116	propane (LPG), 4-20mA version, M20 cable entry. Calibration: 100%LEL= 2.2%vol Propane
C011118	propane (LPG), 4-20mA version, 1/2" NPT cable entry. Calibration: 100%LEL= 2.2%vol Propane

Accessories:
Below is a small selection of the accessories available for the Xsafe.

Spray defector - C01052 - For outdoor installations and protection from water sprays, for example in water treatment or food processing plants. Includes accessory adaptor. (Not suitable for use with Xgard Type 4)
Sun Shield - C011063 - Protects against excessive heat build-up due to direct sunlight. Supplied with fixing rivets.
Collector Cone - C01051 - For aiding detection of light gases such as methane. 38cm/15″ Dia. Includes accessory adaptor.
Weatherproof cap - C01442 - For offshore or other extremely wet environments. Includes accessory adaptor. (Not suitable for use with Xgard Type 4)
Flow adaptor - C01339 - For use where a gas sample is being piped to the detector.
Calibration adaptor - C03005 - To enable calibration gas to be applied to the detector. One adaptor can be used for several detectors.
Duct mounting kit - S011918 - Allows sampling within tubes and ducts. Stainless steel plate with 6mm remote calibration fitting. Maximum duct airflow: 6 metres per second. (Not compatible with Stainless Steel Xgard or Xgard Type 4.)
