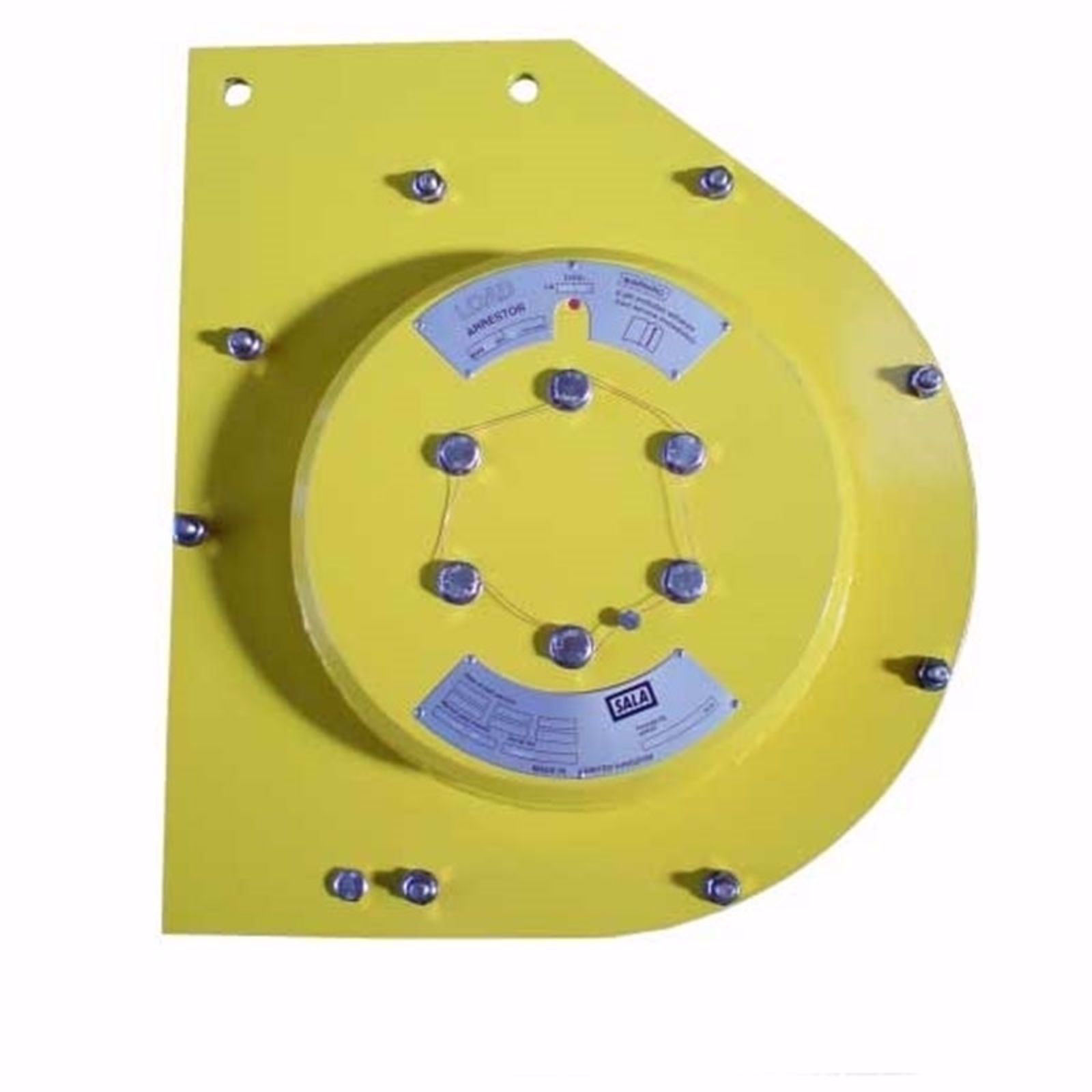

DBI-Sala KD4PLA3000 Load Arrestor - Large


Not suitable for personal fall arrest. Load arrestors are safety devices used in conjunction with lifting devices such as cranes and hoists.


The Load arrestor provides independent protection that will arrest the fall of a load in the event of the primary system failing and reduces the risk of equipment damage and protects personnel in and around the danger zone. Models available to protect loads from 100 kg to 3,000 kg.


The Sala range of load Arrestors are safety devices used in conjunction with lifting devices, such as cranes and hoists, The load arrestor provides independent protection that will arrest the fall of a load in the event of the primary system failing and, being completely Independent of the primary lifting system, it reduces the risk of equipment damage and protects personnel in and around the danger zone.


The minimum temperature is -5 degrees C and the maximum temperature is 100 degrees C.


A range of load arrestors available in three body sizes, small, medium, and large to protect loads from 100kg up to 3000kg, with a variety of wire cable lengths.


The sala load arrestor is installed adjacent to the primary lifting device and fixed to a suitable anchorage point.


Its retractable steel cable is then secured to the load.


The wire rope is attached to the arrestor via an internal spring loaded drum that keeps the rope under a constant light tension yet allows unrestricted movement of the protected load


In the event of a failure of the primary lifting device that allows the load to fall or descend too quickly, the sala arrestor senses a descent speed in excess of O.5m/sec and automatically engages an internal inertia-activated mechanical brake that acts on the rope drum. This decelerates and stops the lowering of the suspended load within 1m and absorbs the shock forces.

Products specifications
Attribute nameAttribute value
Capacity - kg0kg - 499kg

Sorry - this product is no longer available

DBI-Sala KD4PLA3000 Load Arrestor - Large

WLL: 3000kg
Manufacturer: 3M
SKU: KD4PLA3000
Old price: £20,281.00 excl vat
£18,252.90 excl vat £21903.48 inc vat

DBI-Sala KD4PLA3000 Load Arrestor - Large

Old price: £20,281.00 excl vat
£18,252.90 excl vat £21903.48 inc vat
