Globestock GSEWK-20G Tripod Kit

Sorry - this product is no longer available

Max: Height - 2400mm
Complete Kit - No Configuration Required
Manufacturer: Globestock
SKU: GSEWK-20G
£1534.74 inc vat £1,278.95 excl vat
decrease increase

Globestock GSEWK-20G Tripod Kit

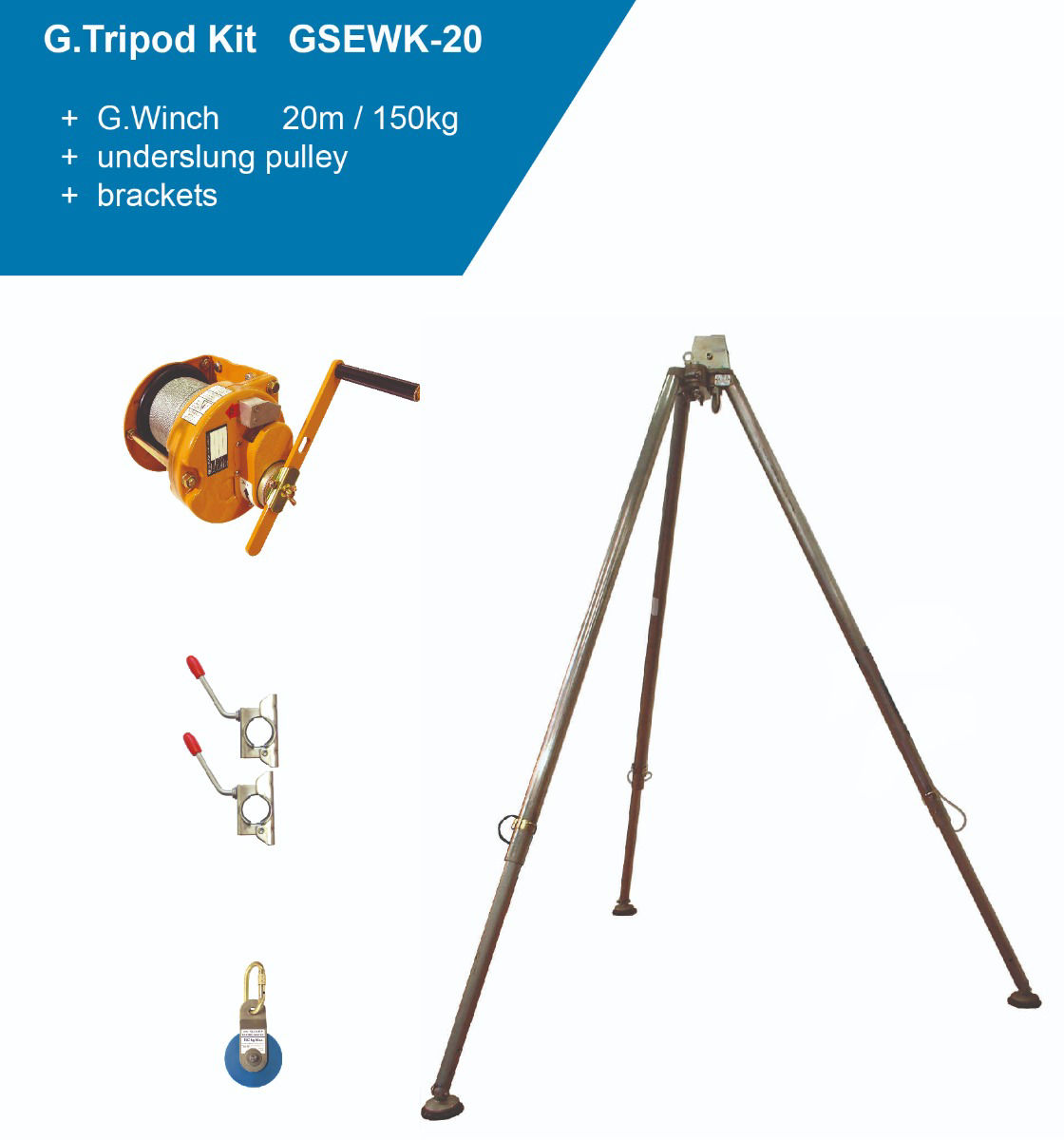

The GSEWK-20G Tripod Kit consists of:

  • GSE210 G.Tripod
  • GSE070-150-20G 150kg G.Winch
  • x2 SA200WB Brackets
  • SA070USP Pulley

G.Tripod

The G.Tripod is an EN795 anchorage device that is durable and lightweight. It provides a secure and stable anchorage for confined space access and down-hole applications.

Commonly used in conjunction with the G.Saver II and G.Winch.

  • Tubular aluminium (robust & lightweight)
  • Simple folding design
  • Twin pulley option (two devices can be mounted in tandem)
  • Suitable for up to 1.75m diameter aperture
  • 136kg Safe Working Load

Pulleys

  • Globestocks lifting pulleys are suitable for many applications, in this configuration they would be used alongside the tripod and winch.
  • The two side plates rotate apart, allowing a rope to be fitted.
  • The pulley is supplied with the required karabiner and suits both 5mm & 6mm rope.
  • Both a 150kg and 250kg pulley is available, as the G.Tripod allows the use of 2 pulleys.

Load Winch - G.Winch

The G.Winch is specifically certified for the lifting and lowering of personnel. It is a personnel winch that may also be used for load lifting. The anti-run braking mechanism means that, if the winding arm is released during lifting, the winch automatically locks. Holding the person / load steady until the handle is rotated again by the operator. The 1:8.9 gear ratio make personnel lifting easy, and allows 50mm of cable retrieval per rotation.

There are two versions available:

150kg MWL - up to 50m

250kg MWL - up to 40m

Data Sheet

Globestock GSEWK-20G Tripod Kit

The GSEWK-20G Tripod Kit consists of:

  • GSE210 G.Tripod
  • GSE070-150-20G 150kg G.Winch
  • x2 SA200WB Brackets
  • SA070USP Pulley

G.Tripod

The G.Tripod is an EN795 anchorage device that is durable and lightweight. It provides a secure and stable anchorage for confined space access and down-hole applications.

Commonly used in conjunction with the G.Saver II and G.Winch.

  • Tubular aluminium (robust & lightweight)
  • Simple folding design
  • Twin pulley option (two devices can be mounted in tandem)
  • Suitable for up to 1.75m diameter aperture
  • 136kg Safe Working Load

Pulleys

  • Globestocks lifting pulleys are suitable for many applications, in this configuration they would be used alongside the tripod and winch.
  • The two side plates rotate apart, allowing a rope to be fitted.
  • The pulley is supplied with the required karabiner and suits both 5mm & 6mm rope.
  • Both a 150kg and 250kg pulley is available, as the G.Tripod allows the use of 2 pulleys.

Load Winch - G.Winch

The G.Winch is specifically certified for the lifting and lowering of personnel. It is a personnel winch that may also be used for load lifting. The anti-run braking mechanism means that, if the winding arm is released during lifting, the winch automatically locks. Holding the person / load steady until the handle is rotated again by the operator. The 1:8.9 gear ratio make personnel lifting easy, and allows 50mm of cable retrieval per rotation.

There are two versions available:

150kg MWL - up to 50m

250kg MWL - up to 40m

Data Sheet
