SKU
GSEWTPK-14G

Globestock GSEWTPK-14G Tripod Kit

Max: Height - 2400mm
Complete Kit - No Configuration Required
£ 2376.15 £1,663.30 £1,995.96

Globestock GSEWTPK-14G Tripod Kit

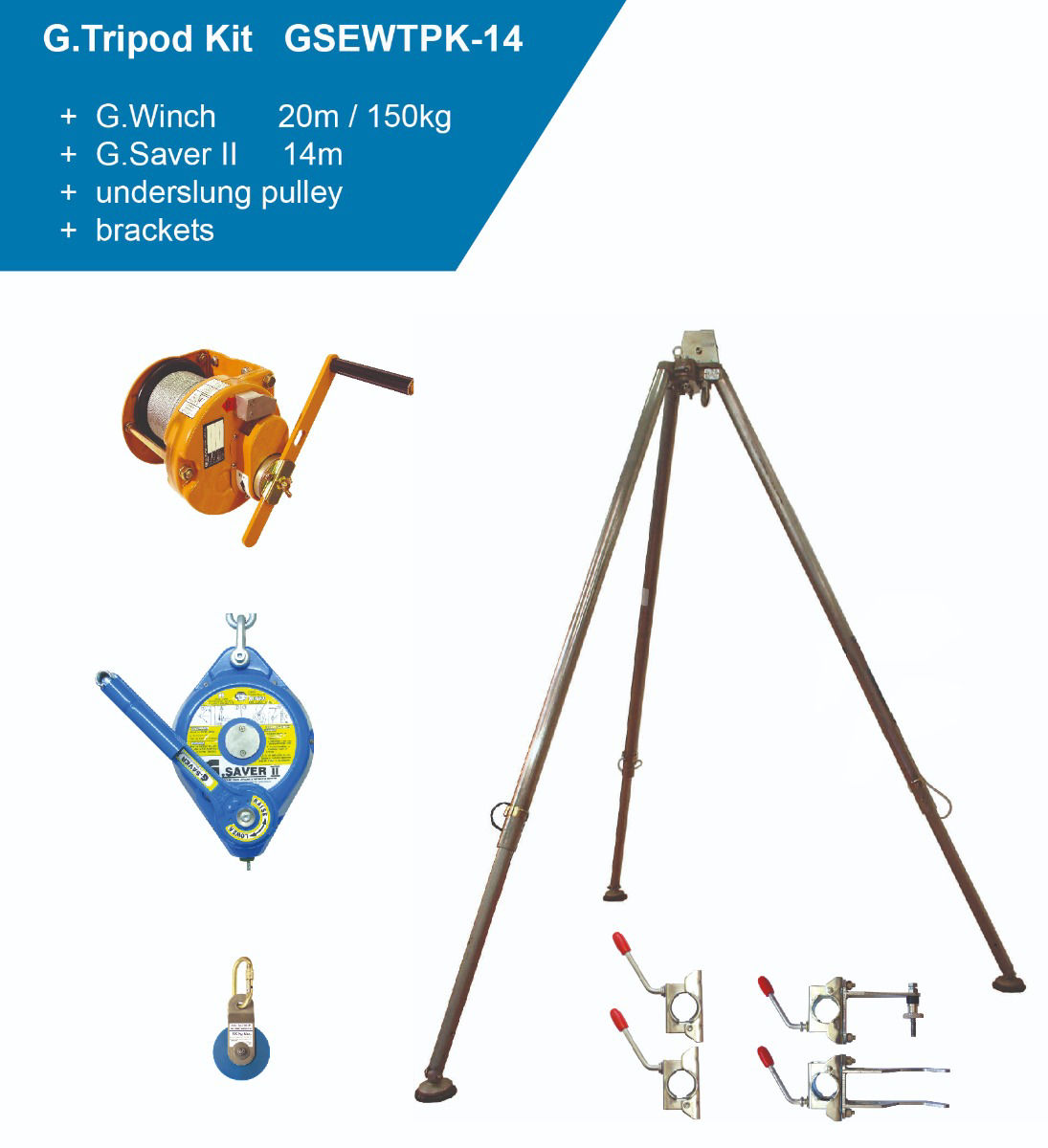

The GSEWTPK-14G Tripod Kit consists of:

  • GSE210 G.Tripod
  • GSE414G 14m G.Saver II
  • GSE070-150-20G 150kg G.Winch
  • SA070USP Pulley
  • SA210UMB Bracket
  • SA210LMB Bracket
  • x2 SA200WB Brackets



G.Tripod

The G.Tripod is an EN795 anchorage device that is durable and lightweight. It provides a secure and stable anchorage for confined space access and down-hole applications.

Commonly used in conjunction with the G.Saver II and G.Winch.

  • Tubular aluminium (robust & lightweight)
  • Simple folding design
  • Twin pulley option (two devices can be mounted in tandem)
  • Suitable for up to 1.75m diameter aperture
  • 136kg Safe Working Load



Pulleys

Globestocks lifting pulleys are suitable for many applications, in this configuration they would be used alongside the tripod and winch.

The two side plates rotate apart, allowing a rope to be fitted.

The pulley is supplied with the required karabiner and suits both 5mm & 6mm rope.

Both a 150kg and 250kg pulley is available, as the G.Tripod allows the use of 2 pulleys.



Fall Arrester - G.Saver II

The G.Saver II fall arrester features a recovery winch with anti-run brake and shock absorbing brake mechanism.

  • Approximately 3m per minute retrieval
  • Stopping distance 0.6m to 1m
  • Auto-lock Karabiner
  • Conforms to EN1496 & EN360
  • 136kg Capacity
  • Available in 7m, 14m, 20m and 34m lengths



G.Winch

The G.Winch is specifically certified for the lifting and lowering of personnel. It is a personnel winch that may also be used for load lifting.

The anti-run braking mechanism means that, if the winding arm is released during lifting, the winch automatically locks. Holding the person / load steady until the handle is rotated again by the operator.

The 1:8.9 gear ratio make personnel lifting easy, and allows 50mm of cable retrieval per rotation.

There are two versions available:

150kg MWL - up to 50m

250kg MWL - up to 40m

Data Sheet

More Information
Free Shipping
No
Manufacturer's Suggested Retail Price
£2,376.15
