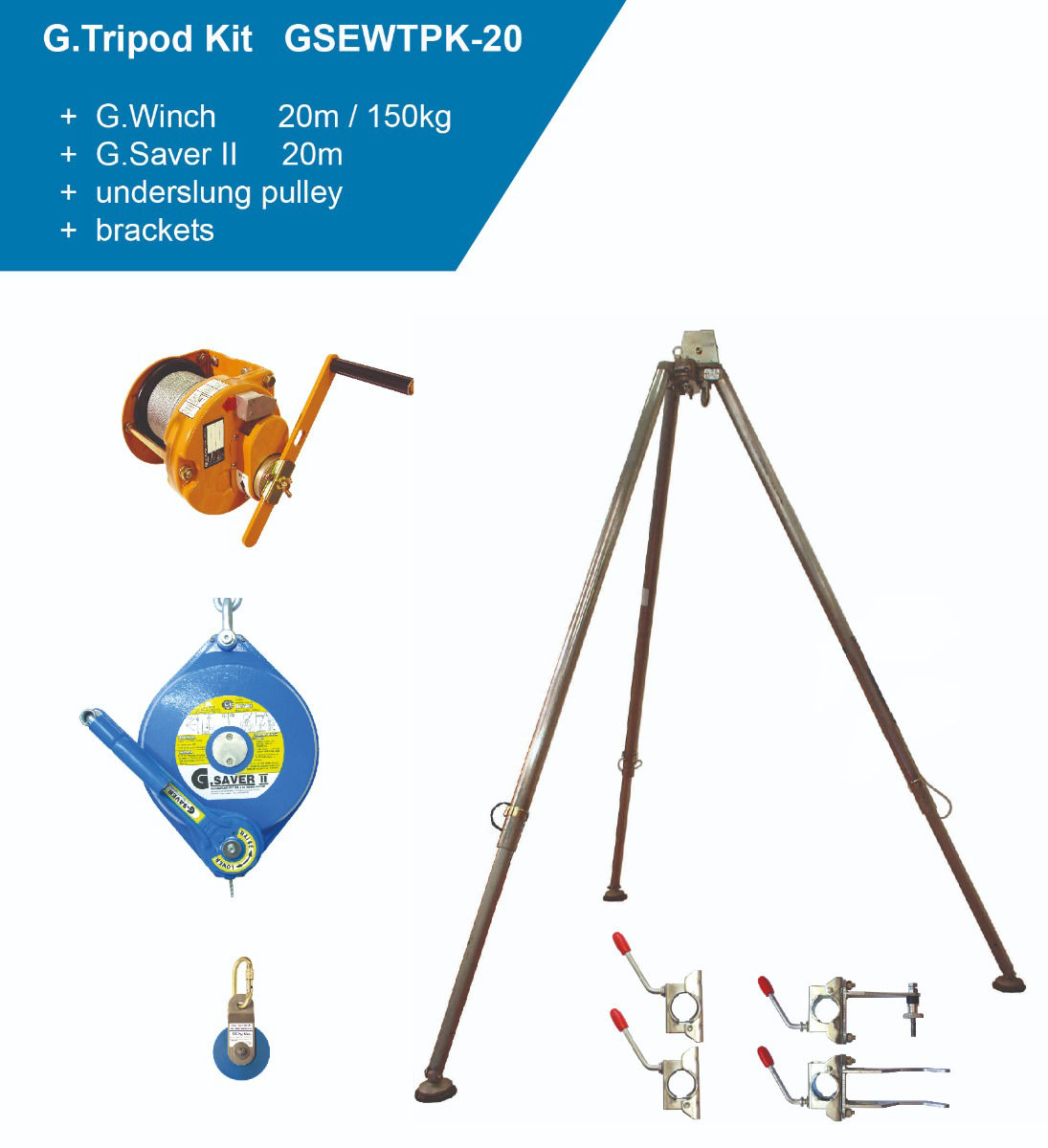

Globestock GSEWTPK-20G Tripod Kit

The GSEWTPK-20G Tripod Kit consists of:

• GSE210 G.Tripod

• GSE420G 20m G.Saver II

• GSE070-150-20G 150kg G.Winch

• SA070USP Pulley

• SA210UMB Bracket

• SA210LMB Bracket

• x2 SA200WB Brackets


G.Tripod

The G.Tripod is an EN795 anchorage device that is durable and lightweight. It provides a secure and stable anchorage for confined space access and down-hole applications.

Commonly used in conjunction with the G.Saver II and G.Winch.

• Tubular aluminium (robust & lightweight)

• Simple folding design

• Twin pulley option (two devices can be mounted in tandem)

• Suitable for up to 1.75m diameter aperture

• 136kg Safe Working Load



Pulleys

• Globestocks lifting pulleys are suitable for many applications, in this configuration they would be used alongside the tripod and winch.
• The two side plates rotate apart, allowing a rope to be fitted.
• The pulley is supplied with the required karabiner and suits both 5mm & 6mm rope.
• Both a 150kg and 250kg pulley is available, as the G.Tripod allows the use of 2 pulleys.



Fall Arrester - G.Saver II

The G.Saver II fall arrester features a recovery winch with anti-run brake and shock absorbing brake mechanism.

• Approximately 3m per minute retrieval

• Stopping distance 0.6m to 1m

• Auto-lock Karabiner

• Conforms to EN1496 & EN360

• 136kg Capacity

• Available in 7m, 14m, 20m and 34m lengths



Load Winch - G.Winch

The G.Winch is specifically certified for the lifting and lowering of personnel. It is a personnel winch that may also be used for load lifting. The anti-run braking mechanism means that, if the winding arm is released during lifting, the winch automatically locks. Holding the person / load steady until the handle is rotated again by the operator. The 1:8.9 gear ratio make personnel lifting easy, and allows 50mm of cable retrieval per rotation.

There are two versions available:

150kg MWL - up to 50m

250kg MWL - up to 40m
