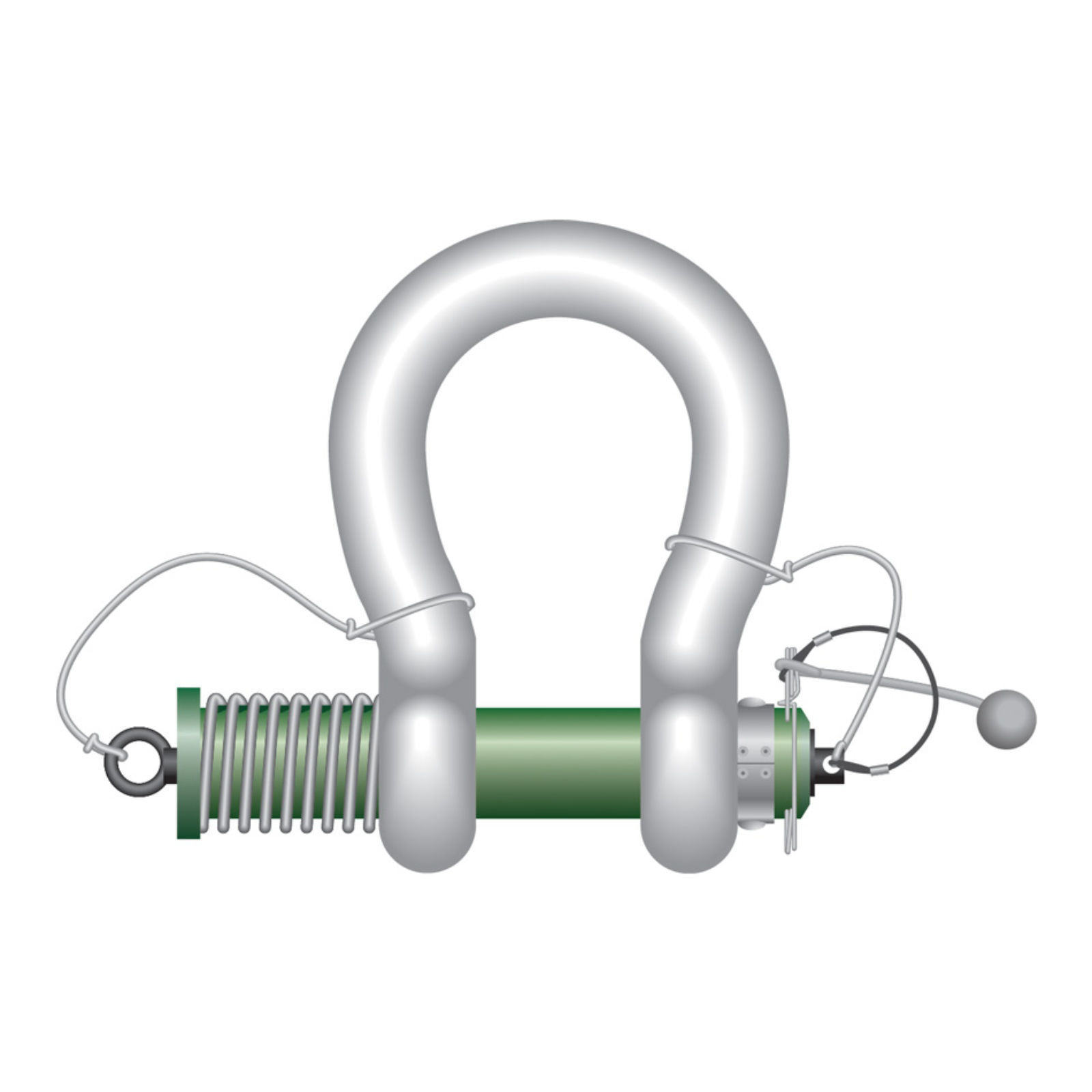

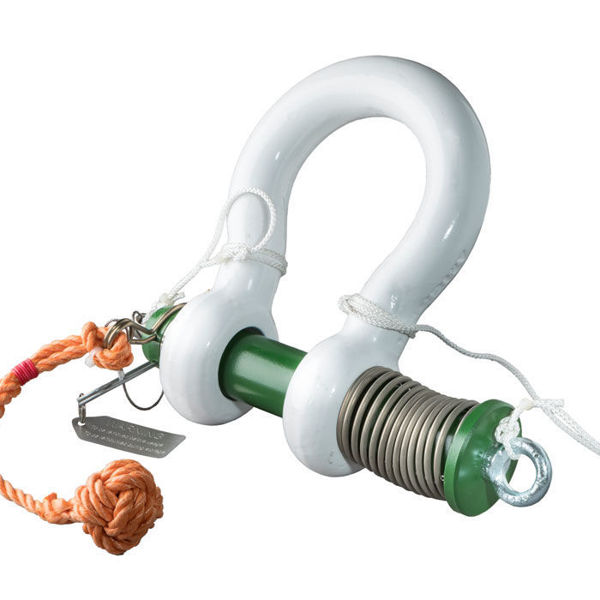

Green Pin ROV Spring Release Polar Shackle - GPROV5367

• Model: P-5367.

• Grade 8 alloy steel body and pin, quenched and tempered.

• Minimum breaking load is 6 times the W.L.L.

• White painted body & green painted pin.

• Temperature range -40°C up to +200°C.

• Supplied with an EC declaration of conformity.

• Supplied with a 3.1 material certificate upon request.

• For in-line use only.

• This shackle is assembled with wire rope slings and monkey’s fist for size starting from WLL 42.5 up to and including 150t.

• A special compression tool (sold separately) is required to assemble the shackle.

• Full CAD support available upon request.

Data Sheet
