GT Lifting G10ESH6 Grade 10 Eye Type Sling Hook C/W Safety Latch

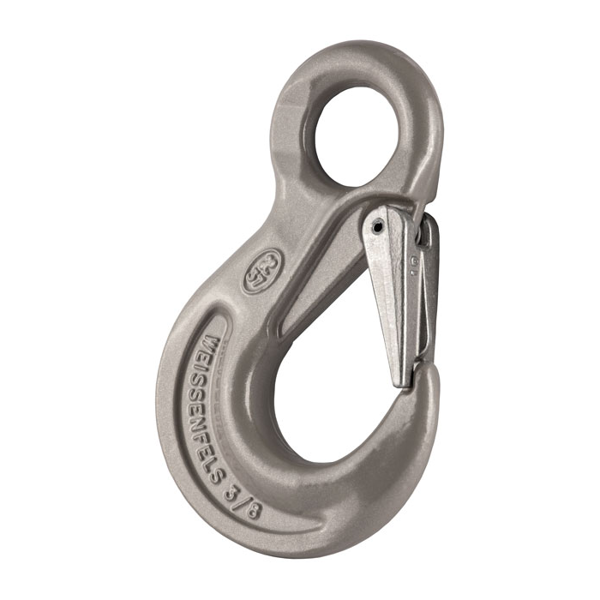

Picture of GT Lifting G10ESH6 Grade 10 Eye Type Sling Hook C/W Safety Latch

Picture of GT Lifting G10ESH6 Grade 10 Eye Type Sling Hook C/W Safety Latch

Description

GT Lifting G10ESH6 Grade 10 Eye Type Sling Hook C/W Safety Latch

Meets the performance requirements of EN1677 - 2.
Can be certified in accordance with ASTM A 952.
Suitable for use with grade 10 chain and fittings and fibre / wire rope sling.
Painted finish.
Alloy steel, quenched and tempered.
Marked with manufacturers identification, traceability mark, size and material grade.
Spare latch kit available.

Dimensions:

Code	Part No	Chain Dia	D	E	F	G	H	O	O1	R
		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
G10ESH6	SHE6	6	18	10	20	16.5	21	25	19	84.5
G10ESH8	SHE7-8	7-8	24	11	25	19	27	32	25	106
G10ESH10	SHE10	10	30	16	34	26	33	40	31	131
G10ESH13	SHE13	13	38	19	43	33	42	48	39	164
G10ESH16	SHE16	16	44	25	50	40	50	55	45	182.5
G10ESH20	SHE19-20	19-20	53	27	55	48	54	61	54	205
G10ESH22	SHE22	22	60	29	60	50	61	71	61	225
G10ESH26	SHE26	26	72	36	70	60	69	84	73	265

Technical Data:

Chain Dia	Working Load Limit	Manufacturing Proof Force	Breaking Force	Weight
(mm)	(tonnes)	(kN)	(kN min)	(kg)
6	1.4	35.3	56.5	0.33
7-8	2.5	62.8	100	0.56
10	4	98.2	157	1.20
13	6.7	166	265	2.35
16	10	251	402	3.72
19-20	16	393	628	5.95
22	19	475	760	7.87
26	26.5	662	1060	12.8

GT Lifting G10ESH6 Grade 10 Eye Type Sling Hook C/W Safety Latch

Suitable For Use With Wire Rope Sling.
Type: Grade 10 Chain & Fittings

Manufacturers: GT Lifting , KITO weissenfels

SKU: G10ESH6

Chain Size mm *

Call for pricing

Qty:

GT Lifting G10ESH6 Grade 10 Eye Type Sling Hook C/W Safety Latch

Call for pricing

Qty:
