GT Lifting G10ML76 Grade 10 Master Link

Picture of GT Lifting G10ML76 Grade 10 Master Link

Description

GT Lifting G10ML76 Grade 10 Master Link

Meets the performance requirements of EN 1677-4.
Suitable for use with grade 10 chains and wire / fibre rope slings.
Painted finish, welded, quenched and tempered.
Designed for use with 1 or 2 leg slings
Proof loaded to 2.5 times the W.L.L.
Minimum breaking load 4 times the W.L.L.
Marked with size, manufacturers traceability code and part number.
Alloy Steel, heat treated.

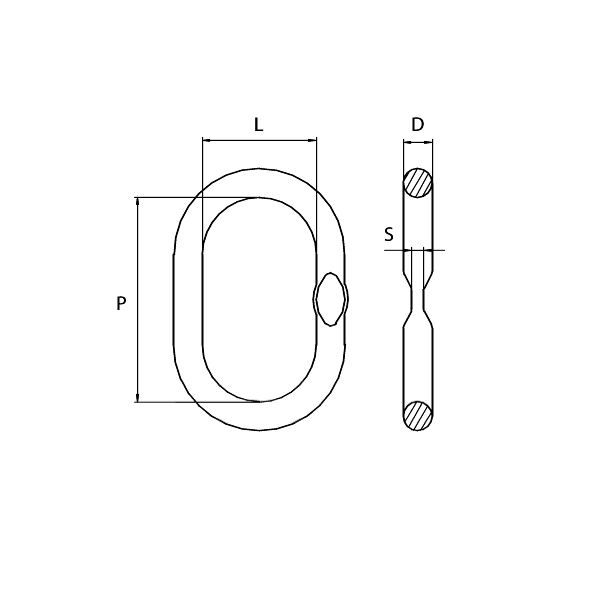

Code	Part No	Chain Dia 1 leg	Chain Dia 2 leg	D	P	L	S	W.L.L.	Weight
		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(tonnes)	(kgs)
G10ML76	D13	6/7	6	13	110	60	8	2.4	0.34
G10ML87	D16	8	7	16	110	60	8	3.4	0.53
G10ML108	D18	10	8	19	135	75	8	5.05	0.92
G10ML1310	D22	13	10	23	160	90	11.5	6.95	1.60
G10ML1613	D26	16	13	27	180	100	14	12	2.50
G10ML2016	D32	19/20	16	33	200	110	18	18	4.20
G10ML2220	D38	22	19/20	38	275	150	-	27.7	7.50
G10ML2622	D45	-	22	45	340	180	-	36	12.82

GT Lifting G10ML76 Grade 10 Master Link

Suitable For Use With Fibre Rope Slings
Type: Grade 10 Chain & Fittings

Manufacturers: GT Lifting , KITO weissenfels

SKU: G10ML76

WLL(Working Load Limit ) in Tonnes *
