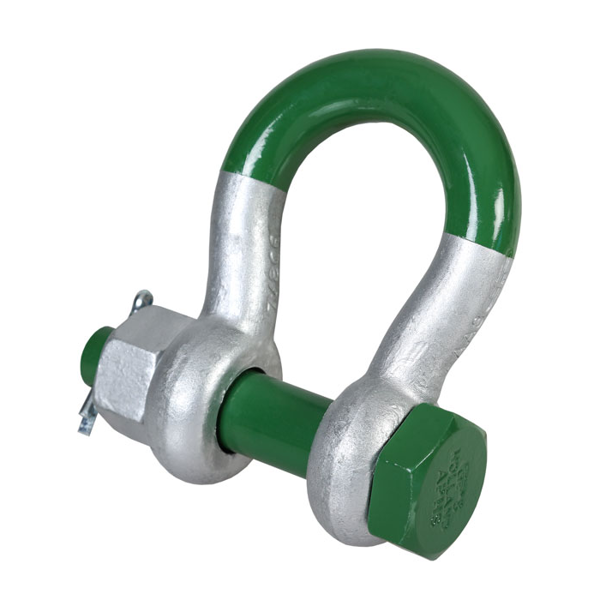

Picture of GT Lifting GPSUP Green Pin Super Bow Shackles

Picture of GT Lifting GPSUP Green Pin Super Bow Shackles

Description

Green Pin Super Bow Shackles with Safety Nut and Bolt Pin - GPSUP

Grade 8 Alloy steel body and pin, quenched and tempered.
Minimum breaking load is 5 times the W.L.L.
Meets performance requirements of US Fed Spec RRC - 271 Type IVA.
Hot dipped galvanised finish(175 tonne shackle is painted).
Marked with ID mark, size, W.L.L and manufacturers mark.
150 & 175 tonne with round headed bolt.
Certification types available for this product: 2.1, 2.2, 3.1, MTCa, CE.

Code	W.L.L	a	b	c	d	e	f	g	h	i	j	k	Weight
	tonnes	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	kgs
GPSUP3.3	3.3	13.5	16	34	13.5	22	51	32	91	81	63	11	0.44
GPSUP5	5	16	19	40	16	27	64	43	114	99	79	17	0.79
GPSUP7	7	19	22	47	19	31	76	51	136	115	94	20	1.26
GPSUP9.5	9.5	22	25	53	22	36	83	58	157	131	107	23	1.88
GPSUP12.5	12.5	25	28	60	25	43	95	68	176	151	124	25	2.78
GPSUP15	15	28	32	67	28	47	108	75	197	167	137	28	3.87
GPSUP18	18	32	35	74	32	51	115	83	218	179	154	31	5.26
GPSUP21	21	35	38	80	35	57	133	92	240	198	170	34	6.94
GPSUP30	30	38	42	89	38	60	146	99	262	203	183	19	8.79
GPSUP40	40	45	50	104	45	74	178	126	314	244	226	24	15
GPSUP55	55	57	57	133	50	83	197	138	365	286	264	27	22.0
GPSUP85	85	70	70	159	65	105	260	180	468	342	339	33	42.0
GPSUP120	120	83	83	171	75	127	329	190	564	400	371	40	70.0
GPSUP150	150	95	95	215	89	144	381	238	667	440	416	50	112
GPSUP175	175	105	108	245	100	165	400	275	702	490	485	60	160

GT Lifting GPSUP Green Pin Super Bow Shackles

with Safety Nut and Bolt Pin
Type: Shackle

Manufacturers: GT Lifting , Green Pin

SKU: GPSUP

WLL(Working Load Limit ) in Tonnes

Call for Pricing *

Sorry, this Model requires that you contact SafetyGearStore at 0800 678 5708 for pricing.

Call for Pricing *

Sorry, this Model requires that you contact SafetyGearStore at 0800 678 5708 for pricing.

Call for pricing

Qty:

GT Lifting GPSUP Green Pin Super Bow Shackles

Call for pricing

Qty:
