Guardian Checkmate EchoAnchor Mobile Man Anchor

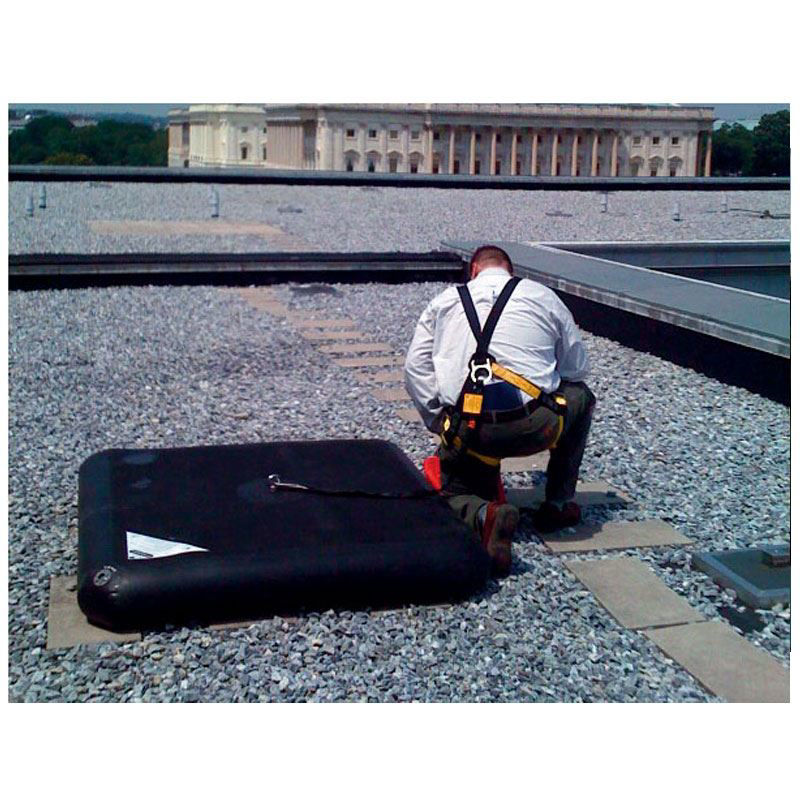

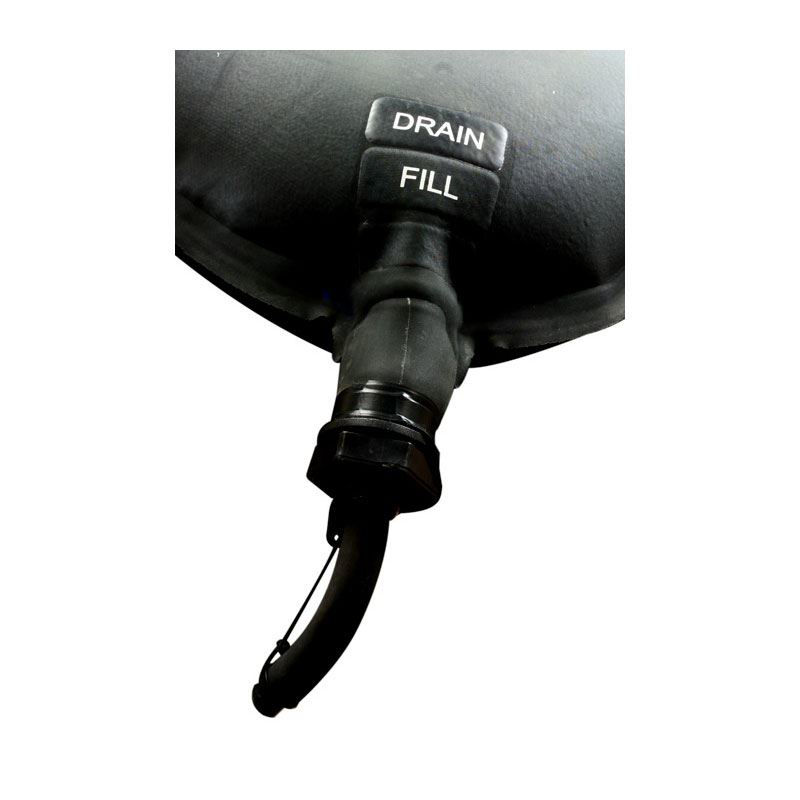

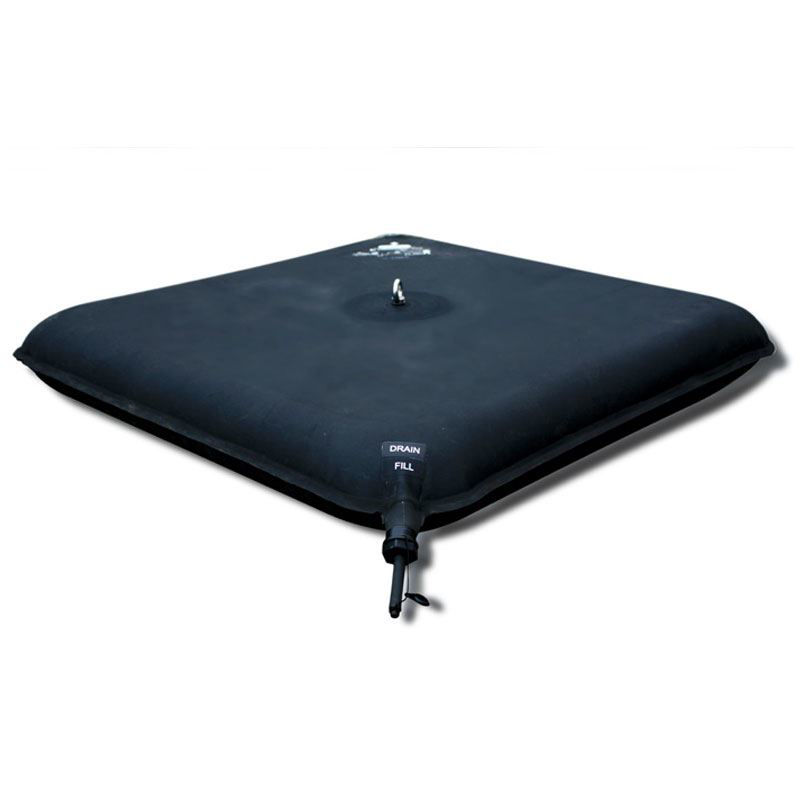

The ecoAnchor is a totally unique concept in fall protection and uses renewable resources for both manufacture and installation. Due to the massive weight saving for transportation it can also reduce the carbon footprint. The anchor is constructed of a special natural rubber material that holds the bag in a solid cube form when filled with water.

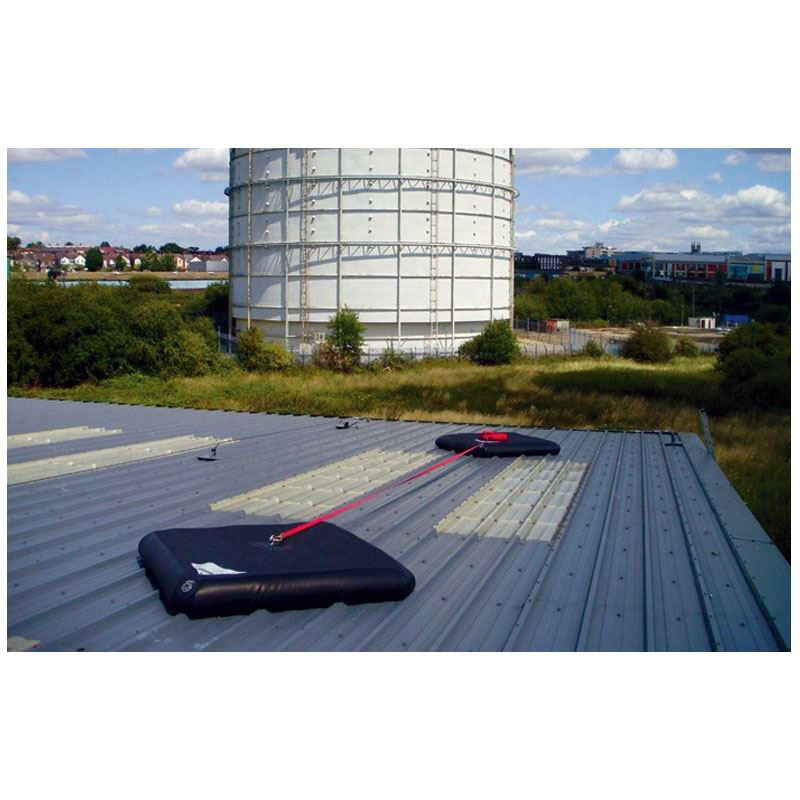

The ecoAnchor is compatible with a large variety of roof surfaces including composite and mineral felts. It has been tested to exceed the EN795 class E standard and is suitable for use on pitched roofs of up to 15 degrees. It is also compatible for use with our temporary life line systems . This will allow spans of up to 25m by linking two ecoAnchors together to create a 2D system simply and quickly.

When collapsed, the ecoAnchor weighs just 8kg, fitting in a small bag(bag not included), and avoiding the need to transport, or carry, heavy weights to the top of a building prior to installation.

  • Patent Pending No. 0901634.6
  • ecoAnchor is a Registered Trade Mark of Checkmate Limited.


Features:

  • Materials - Fire resistant Neoprene re-enforced with Nylon
  • Dimensions - 1.45m x 1.45m x 0.2m
  • Weight - 8kg (empty) 430kg (full)
  • Capacity - 430 ltrs of water
  • Arrest force - All devices must be load limiting to under 6kN
  • Max user weight - 100kg (as per class e of EN 795)
  • Pressure loading - 2.4kN/m2
  • Roof types - EPDM, Mineral Felts, Concrete and Metal Deck
  • Puncture resistance - Meets FED STD 191 Part 1520

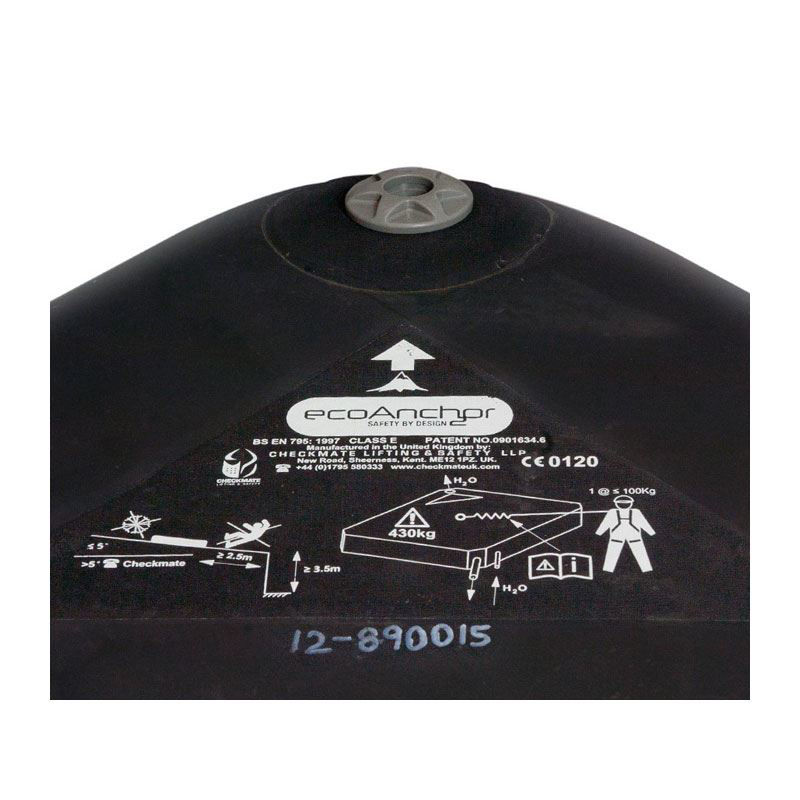

EN 795 Class E
*Price is for 1 EcoAnchor. If you require them for use in a tandem, you must purchase 2. Lifeline is not included.

Products specifications
Attribute nameAttribute value
Anchorage TypeMobile Man Anchors

Sorry - this product is no longer available

Guardian Checkmate EchoAnchor Mobile Man Anchor

Anchor Type: Dead Weight
Manufacturers: Checkmate , Guardian
SKU: EC0-MKII
Old price: £1,683.00 excl vat
£1,430.55 excl vat £1716.66 inc vat
