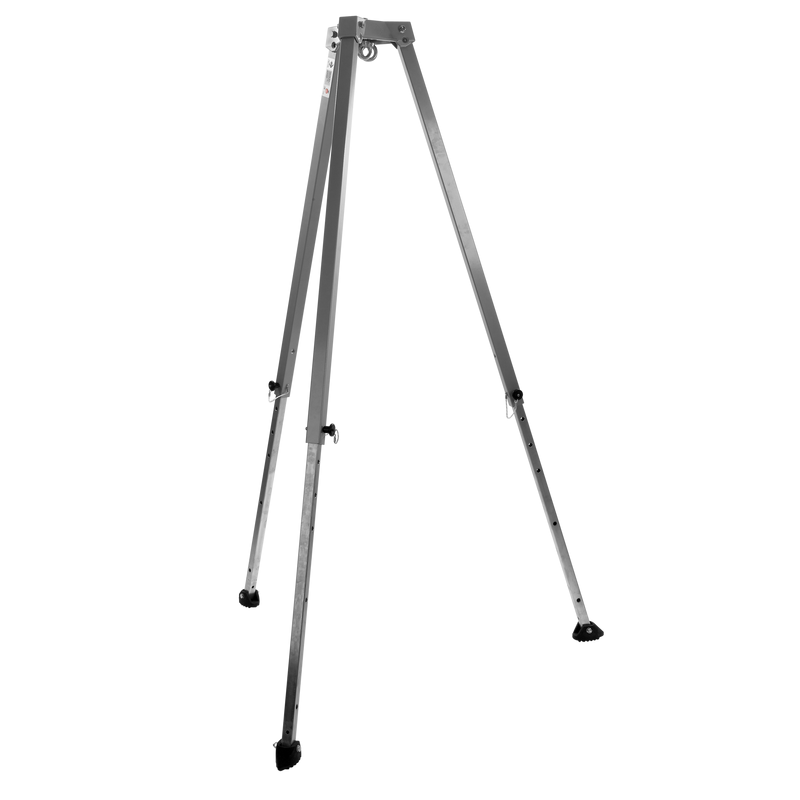

Ikar 3.18m Aluminium Tripod DB-A2XL with Adjustable Square Section Legs

• EN795

• High functional stability

• High quality and reliability

• Load carrying capacity: 2 persons max.

• Foldable rubber feet

• For use with IKAR fall arrest and rescue device HRA

• For use with IKAR Load and Personnel winches: ALKO901T, PLWT

• Corrosion resistant coating

• Two eye bolts in the head of the tripod

• Adjustable square section legs, with stainless steel retaining pins

• Stainless steel leg individually locking pin for use and storage

• Mountable accessories available



HRA Fall Arrest Block:

The HRA is a fall arrest block / Inertia reel / retractable type fall arrester, with built in two-way rescue/recovery mechanism.

Fall arrest device with rescue lifting and lowering facility, equipped with a recovery mechanism operated by a device mounted handle. After an arrested fall, or if the user becomes incapacitated at the bottom of a shaft, the recovery mechanism can easily be engaged by a second person to raise or lower the person to a place of safety.

The HRA can be mounted onto the DB-AR tripod via the required  bracket (Included in the price of the HRA)

The HRA is not suitable for use over a leading edge and has not been edge tested.

• EN360

• Aluminium housing, galvanised steel cable lifeline

• Release pin and two-way winding handle

• Can be switched from Engage rescue and recovery mode

• Fixed handle anchor attachment point

• Can be fitted to the DB-AR tripod via the 41-54/9.5-30 bracket

• Aluminium double action hook on end of lifeline to EN362




PLWT Personnel & Load Winch

The PLWT winch is designed for lifting personnel or loads, featuring a weight capacity of 300kg.

The PLWT is compatiable with all IKAR tripods via the 41-54 DWS Tripod bracket (Included in the price of the PLWT winch).

Complies to EN1808

ALKO901T Load Winch

The ALKO901T is a 20m winch designed for lifting loads only

The ALKO901 winch features a 250kg capacity for loads and is compatiable with all IKAR tripods via the required 41-54DWS mounting bracket. (Included with the price of the winch).

Specifications:

DB-A2 Declaration of Conformity
