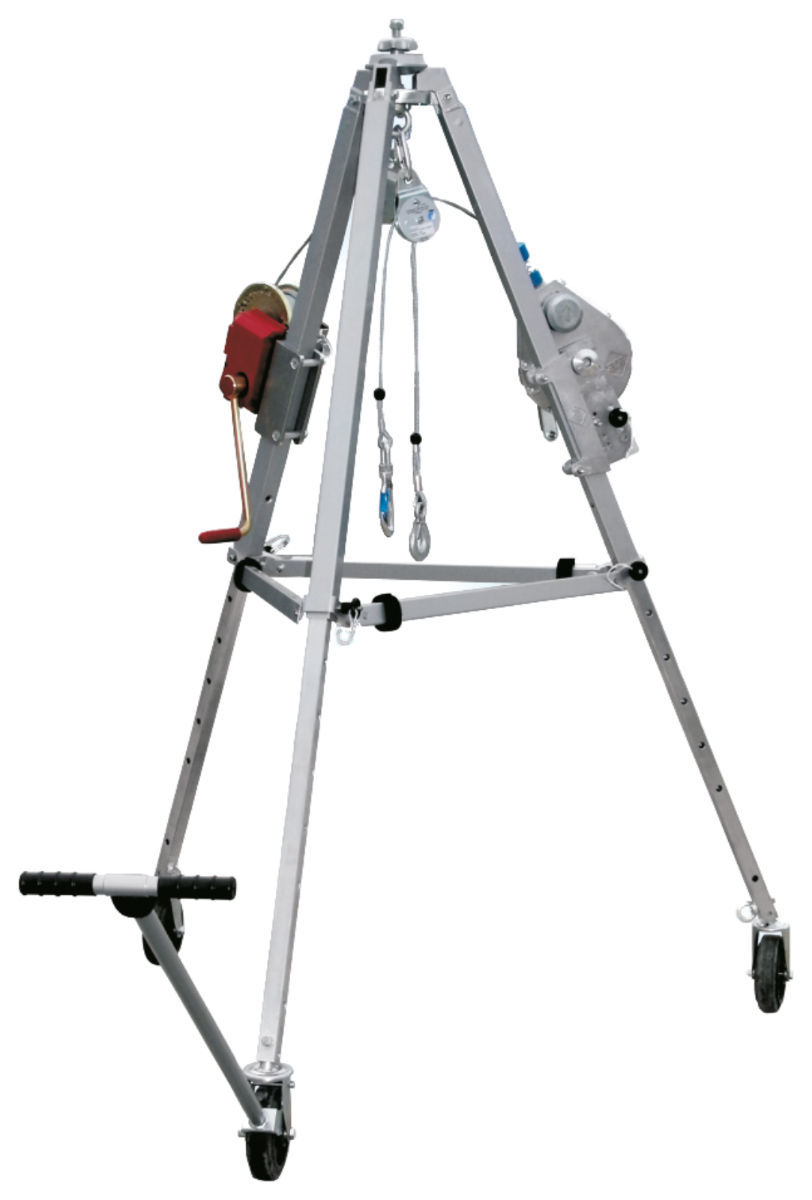

Ikar DB-AR Aluminium Rescue Tripod

  • EN795
  • High functional stability
  • High quality and reliability
  • Load carrying capacity: 2 persons max.
  • Height adjustable to almost double
  • For use with IKAR fall arrest and rescue device: HRA up to 42m
  • For use with IKAR Load and Personnel winches: ALKO901T, PLWT (Not Included)
  • Corrosion resistant coating
  • Two eye bolts in the head of the tripod
  • Stainless steel leg locking pins
  • Mountable accessories available

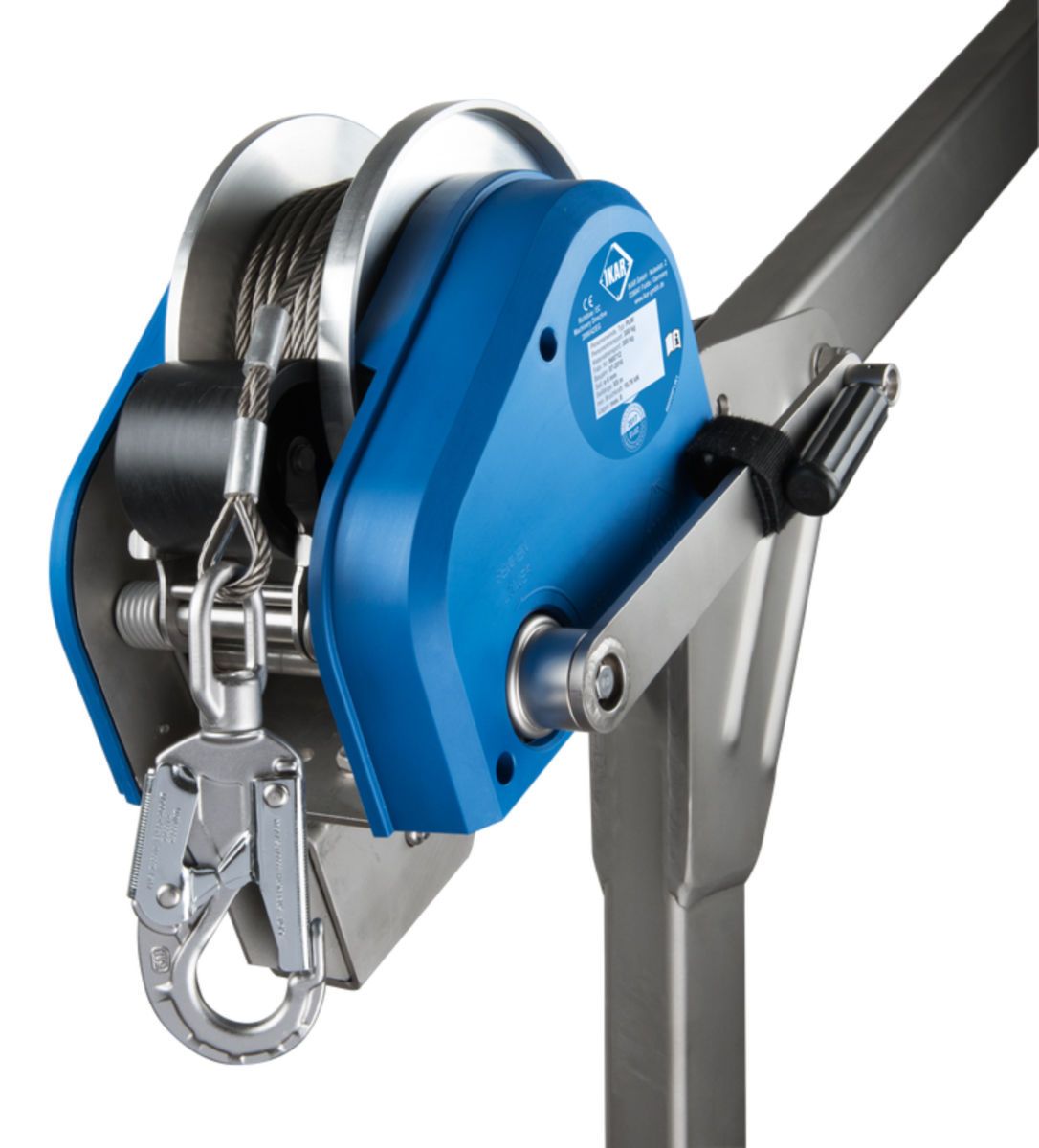

HRA Fall Arrest Block:

The HRA is a fall arrest block / Inertia reel / retractable type fall arrester, with built in two-way rescue/recovery mechanism.

Fall arrest device with rescue lifting and lowering facility, equipped with a recovery mechanism operated by a device mounted handle. After an arrested fall, or if the user becomes incapacitated at the bottom of a shaft, the recovery mechanism can easily be engaged by a second person to raise or lower the person to a place of safety.


The HRA can be mounted onto the DB-AR tripod via the required  bracket (Included in the price of the HRA)

The HRA is not suitable for use ove a leading edge and has not been edge tested.

  • EN360
  • Aluminium housing, galvanised steel cable lifeline
  • Release pin and two-way winding handle
  • Can be switched from Engage rescue and recovery mode
  • Fixed handle anchor attachment point
  • Can be fitted to the DB-AR tripod via the 41-54/9.5-30 bracket
  • Aluminium double action hook on end of lifeline to EN362


PLWT Personnel & Load Winch

The PLWT winch is designed for lifting personnel or loads, featuring a weight capacity of 300kg.

The PLWT is compatiable with all IKAR tripods via the 41-54 DWS Tripod bracket (Included in the price of the PLWT winch).

Complies to EN1808

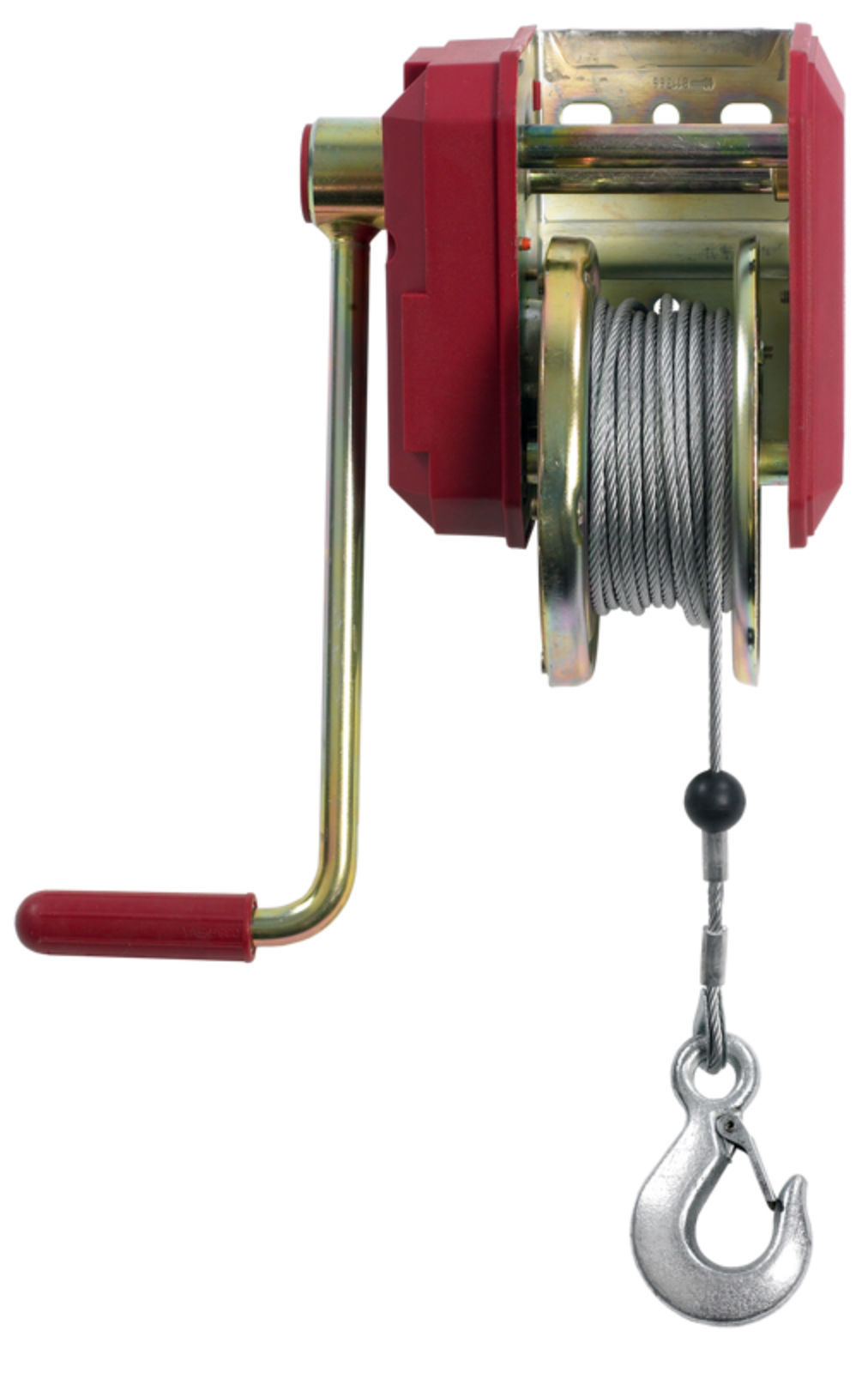

ALKO901T Load Winch

The ALKO901T is a 20m winch designed for lifting loads only

The ALKO901 winch features a 250kg capacity for loads and is compatiable with all IKAR tripods via the required 41-54DWS mounting bracket. (Included with the price of the winch).

Specifications:

Capacity2 persons max.
BrandIKAR
EquippedYes
ModelDB-AR
Dimensions2.02m
Weight28 Kg
Product TypesTripod
StandardsEN795 Class B


DB-AR Declaration of Conformity

Ikar DB-AR Aluminium Rescue Tripod

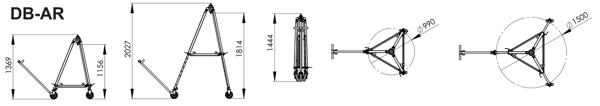

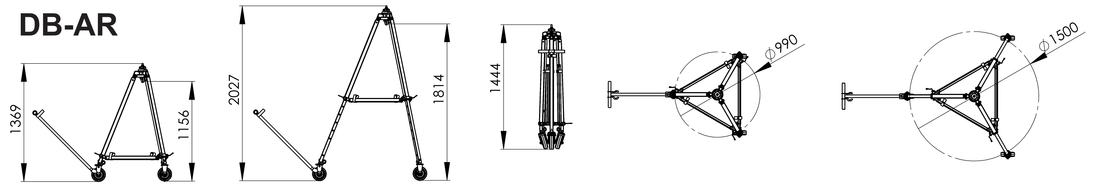

Max: Height - 2027mm Configurable on Details Page
Manufacturer: Ikar
SKU: DB-AR
*
*
*
*
*
Call for pricing
