Ikar DBA2 Tripod with 24m Winch

Use: Rescue
24m Recovery Inertia Winch
Manufacturer: Ikar
SKU: DBA224
£1,492.85 excl vat
£1,268.92 excl vat
£1522.70 inc vat
decrease increase

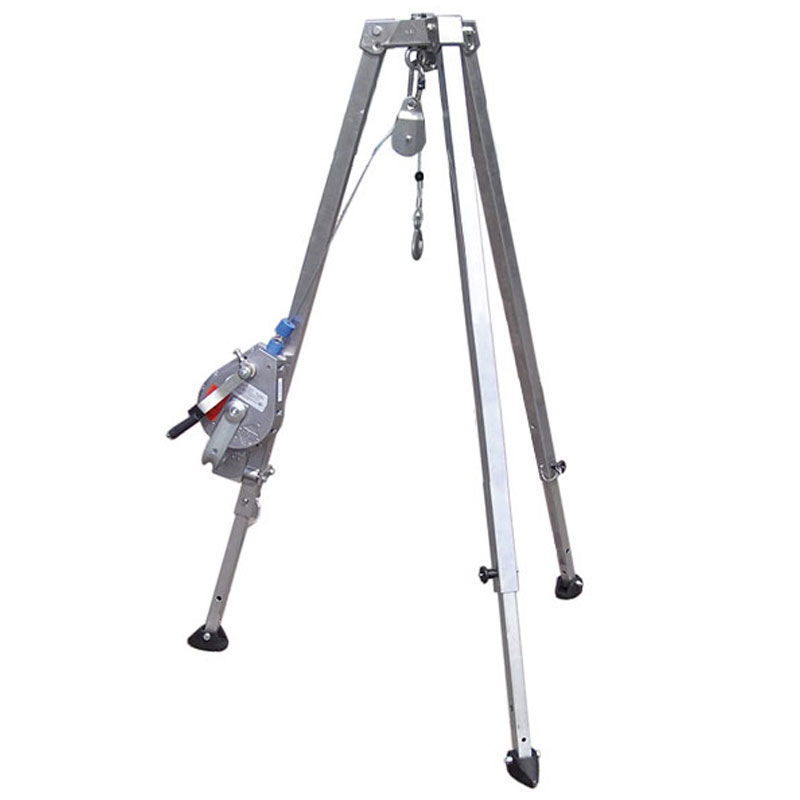

Ikar DBA2 Rescue Tripod with 24m Rescue / Recovery Inertia Reel Winch

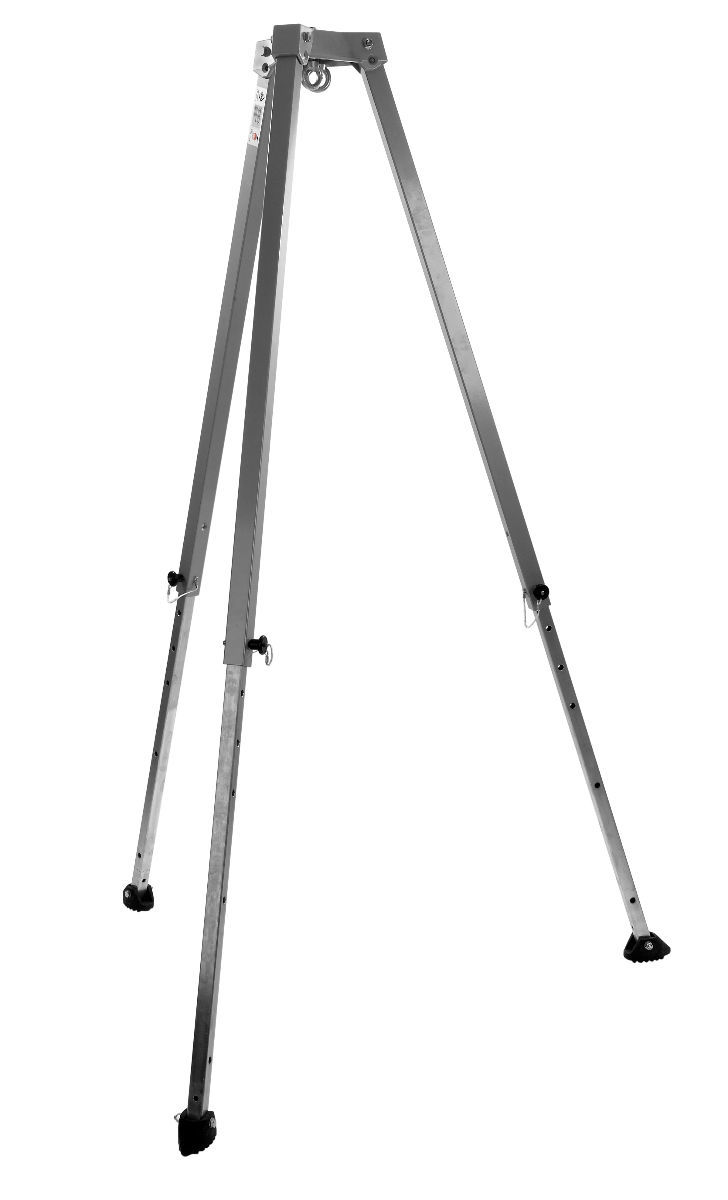

Ikar DB-A2 Tripod

  • EN795
  • High functional stability
  • High quality and reliability
  • Load carrying capacity: 2 persons max
  • Foldable rubber feet
  • For use with IKAR fall arrest and rescue device: HRA
  • For use with IKAR Load/Personnel winches: ALKO901T, PLWT
  • Corrosion resistant coating
  • Two eye bolts in the head of the tripod
  • Stainless steel leg locking pins
  • Mountable accessories available

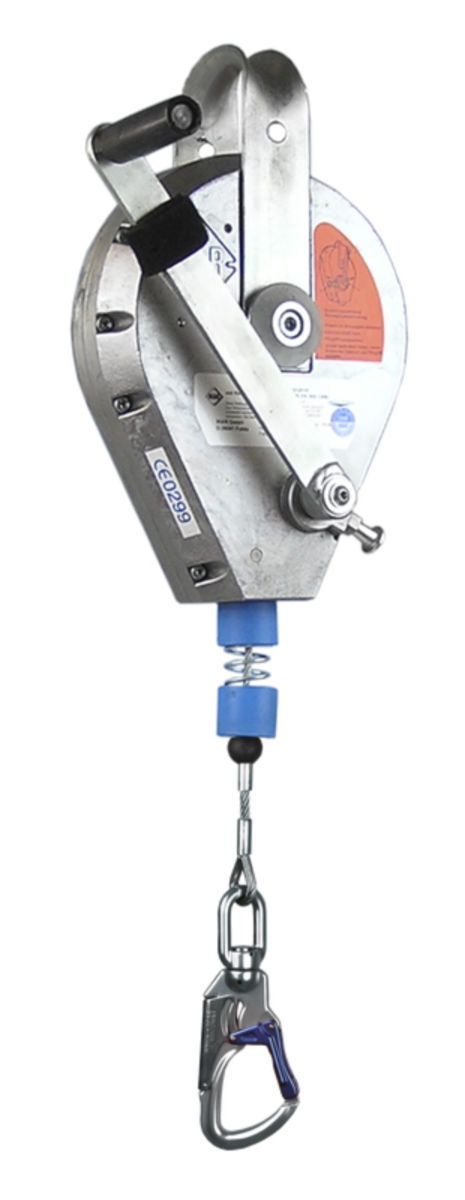

24m Rescue Winch Fall Arrest Block:

The HRA is a fall arrest block / Inertia reel / retractable type fall arrester, with built in two-way rescue/recovery mechanism.

Fall arrest device with rescue lifting and lowering facility, equipped with a recovery mechanism operated by a device mounted handle. After an arrested fall, or if the user becomes incapacitated at the bottom of a shaft, the recovery mechanism can easily be engaged by a second person to raise or lower the person to a place of safety.

The HRA can be mounted onto the DB-AR tripod via the required bracket (Included in the price of the HRA) The HRA is not suitable for use over a leading edge and has not been edge tested.

  • EN360
  • Aluminium housing, galvanised steel cable lifeline
  • Release pin and two-way winding handle
  • Can be switched from Engage rescue and recovery mode
  • Fixed handle anchor attachment point
  • Can be fitted to the DB-AR tripod via the 41-54/9.5-30 bracket (Included in pricing)
  • Aluminium double action hook on end of lifeline to EN362

Declaration of Conformity

Ikar DBA2 Rescue Tripod with 24m Rescue / Recovery Inertia Reel Winch

Ikar DB-A2 Tripod

  • EN795
  • High functional stability
  • High quality and reliability
  • Load carrying capacity: 2 persons max
  • Foldable rubber feet
  • For use with IKAR fall arrest and rescue device: HRA
  • For use with IKAR Load/Personnel winches: ALKO901T, PLWT
  • Corrosion resistant coating
  • Two eye bolts in the head of the tripod
  • Stainless steel leg locking pins
  • Mountable accessories available

24m Rescue Winch Fall Arrest Block:

The HRA is a fall arrest block / Inertia reel / retractable type fall arrester, with built in two-way rescue/recovery mechanism.

Fall arrest device with rescue lifting and lowering facility, equipped with a recovery mechanism operated by a device mounted handle. After an arrested fall, or if the user becomes incapacitated at the bottom of a shaft, the recovery mechanism can easily be engaged by a second person to raise or lower the person to a place of safety.

The HRA can be mounted onto the DB-AR tripod via the required bracket (Included in the price of the HRA) The HRA is not suitable for use over a leading edge and has not been edge tested.

  • EN360
  • Aluminium housing, galvanised steel cable lifeline
  • Release pin and two-way winding handle
  • Can be switched from Engage rescue and recovery mode
  • Fixed handle anchor attachment point
  • Can be fitted to the DB-AR tripod via the 41-54/9.5-30 bracket (Included in pricing)
  • Aluminium double action hook on end of lifeline to EN362

Declaration of Conformity

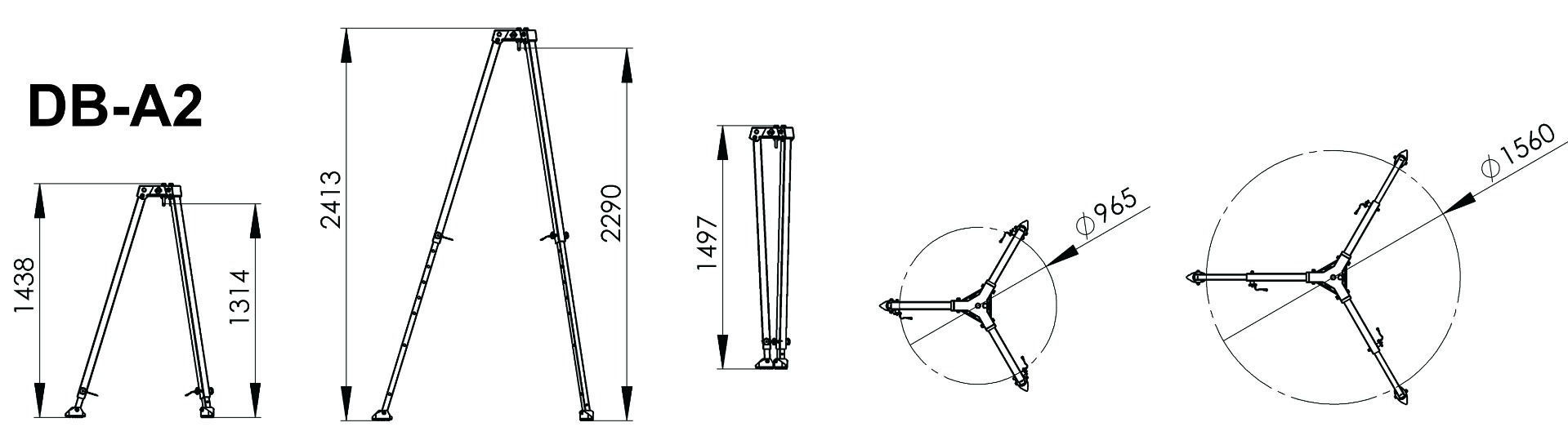

Products specifications
Tripod UseRescue
Tripod Min Working Height1m - 1.5m
Tripod Max Working Height2.0m - 2.5m
Tripod Winch Length20m - 29m
Tripod AttachmentsRecovery & Rescue Inertia / Winch
Write your own review
  • Only registered users can write reviews
*
*
Bad
Excellent
*
*
*
Products specifications
Tripod UseRescue
Tripod Min Working Height1m - 1.5m
Tripod Max Working Height2.0m - 2.5m
Tripod Winch Length20m - 29m
Tripod AttachmentsRecovery & Rescue Inertia / Winch
