Parsun Outboard Motor F15 Series

SKU: Parsun Outboard Motor F15 Series
£2,143.00 excl vat
£2571.60 inc vat
decrease increase

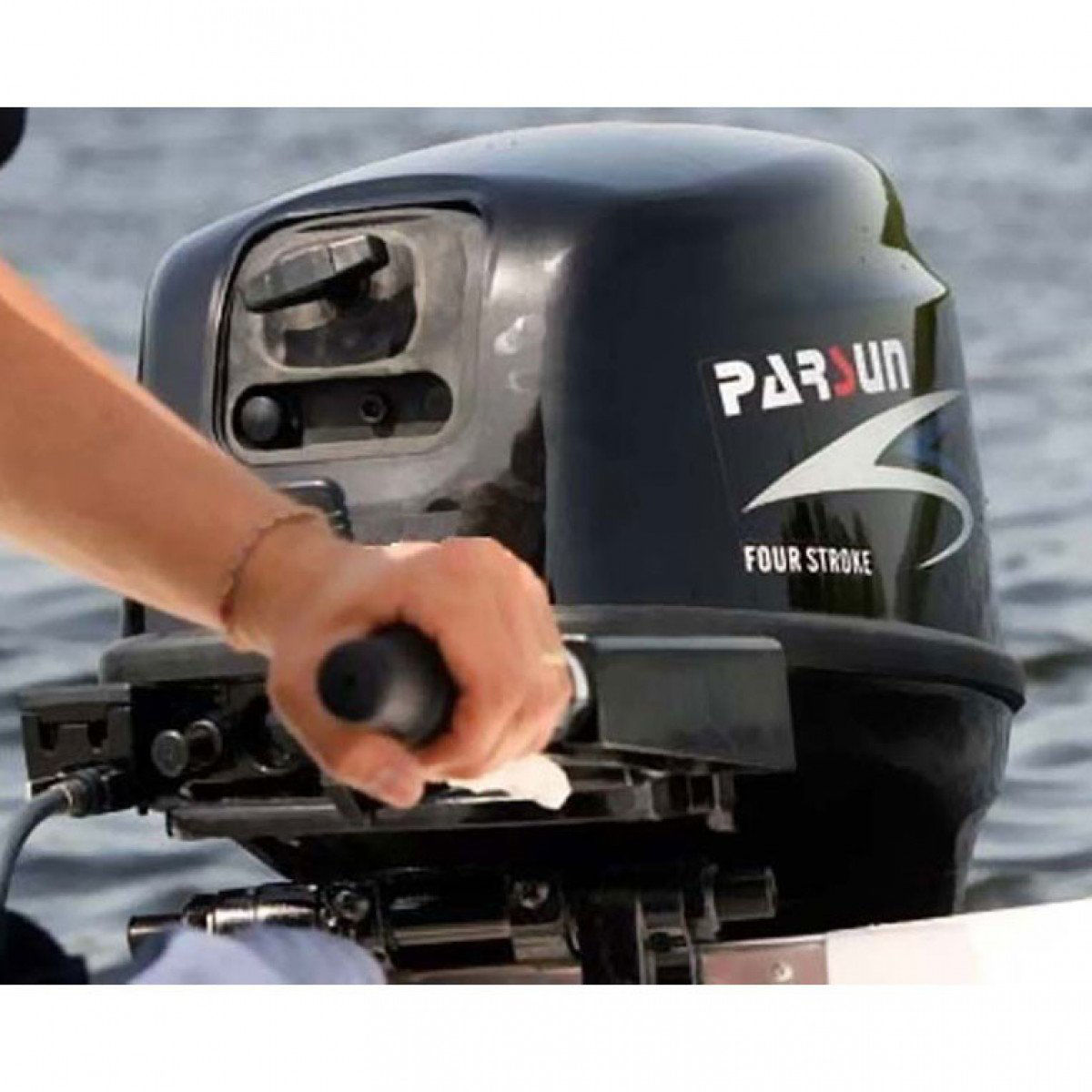

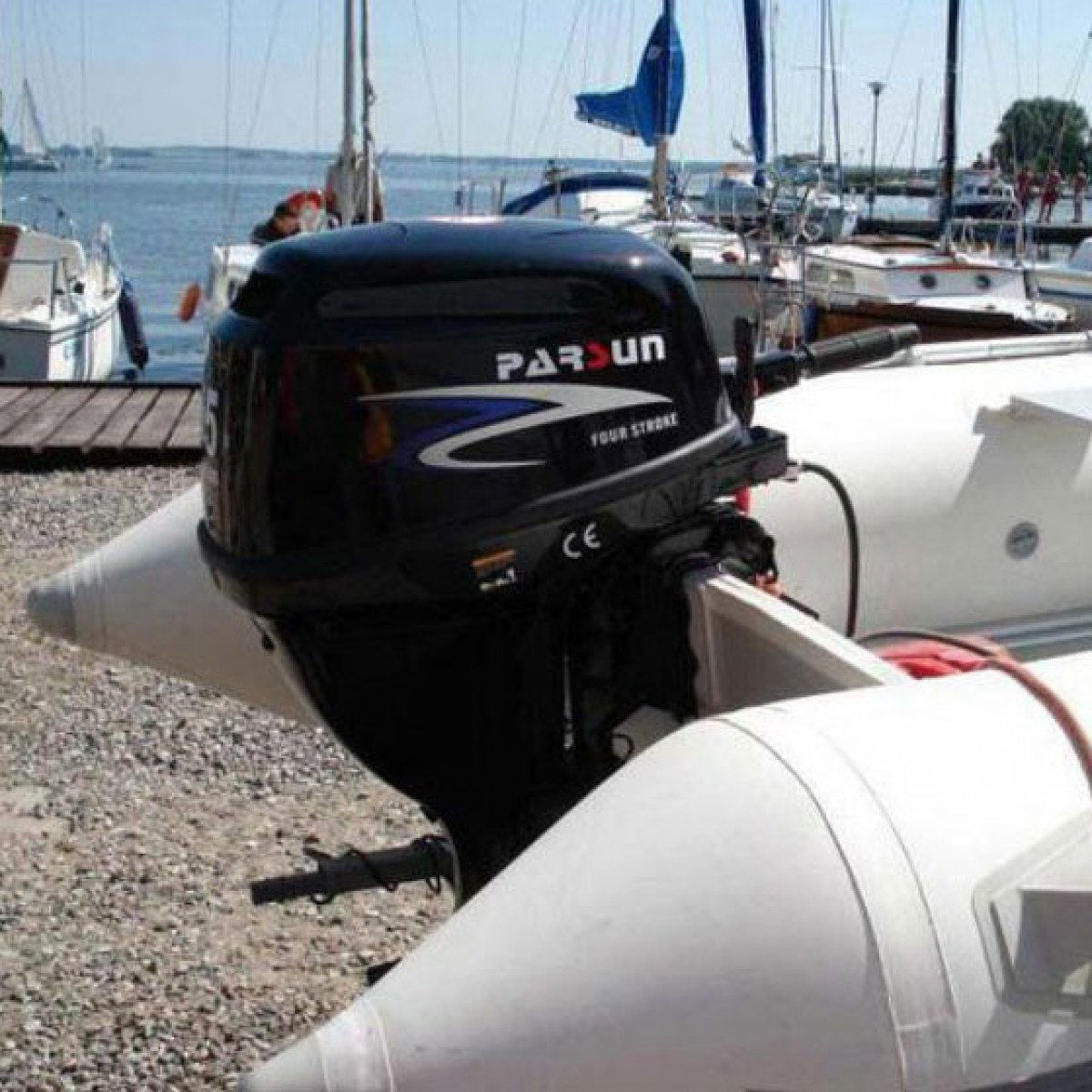

Parsun Outboard Motor F15 Series

Parsun F15 series outboard motors feature greater flexibility and durability with a greatly convenient operation, making it the perfect choice for inflatable, small boats and pontoon boats.

Compact and easy to transport the Parsun F15’s weigh 49kg - 51kg (depending on model purchased), while boasting muscular performance.

ITEMMODEL
 F15 BMLF15 BMSF15 BWLF15 BWSF15 FWLF15 FWS
OVERALL LENGTH (mm/in)1001 / 39.4643 / 25.3
OVERALL WIDTH (mm/in)427 / 16.8369 / 14.5
OVERALL HEIGHT (mm/in)1207 / 47.51080 / 42.51207 / 47.51080 / 42.51207 / 47.51080 / 42.5
TRANSON HEIGHT (mm/in)508 / 20.0381 / 15.0508 / 20.0381 / 15.0508 / 20.0381 / 15.0
WEIGHT (kg)514953515351
FULL THROTTLE OPERATING RANGE (r/min)4500 ~ 5500
MAX. OUTPUT (kW (HP)@min)11(15)@5000
IDLING SPEED (NEUTRAL) (r/min)900 ~ 1000
ENGINE TYPEOHC
CYLINDERSL2
DISPLACEMENT (cm3)323
BORE X STROKE (mm/in)59.0 X 59.0 / 2.32 X 2.32
IGNITION SYSTEMCDI
CONTOL SYSTEMTiller controlRemote control
STARTING SYSTEMManual startElectric start + manual start
GEAR POSITIONSForward/Neutral/Reverse
GEAR RATIO2.08 (27/13)
TRIM & TILT SYSTEMManual tilt
FUEL TANK CAPACITY (L)24
MAX. FUEL CONSUMPTION (L/h)5.3
ENGINE OIL CAPACITY (L)                            *without oil filter1
GEAR OIL CAPACITY  (cm3)250
PROPELLER OPTIONS (in)                             *options vary by boat size & application3 - 9 1/4" X8" or 3 - 9 1/4" X10" or 3 - 9 1/4" X11"or 3 - 9 1/4" X12"

B = Back control (Tiller control)   F = Front control (remote control)   M = Manual start   W = Electric start + manual start   S = Short shaft    L = Long shaft
