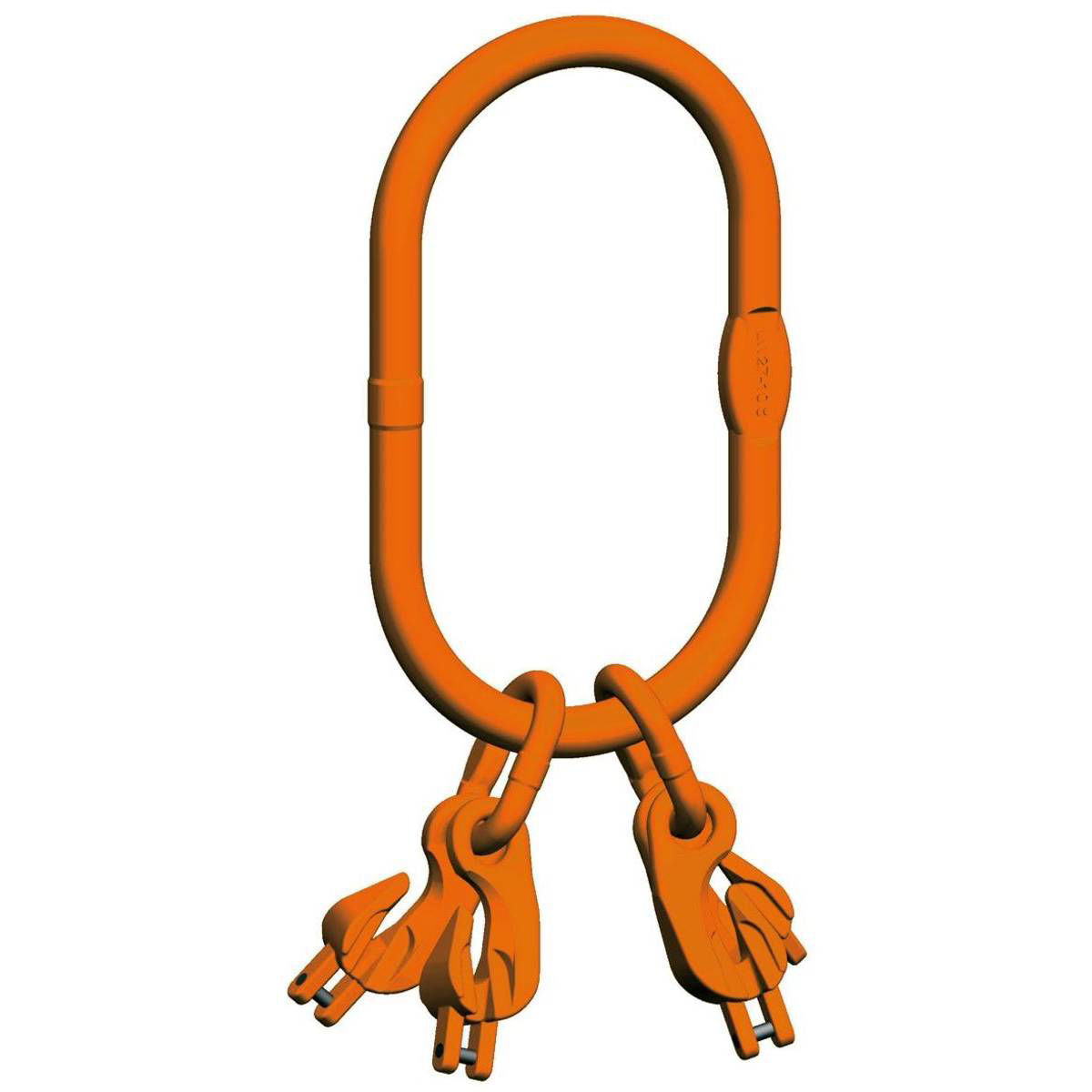

PEWAG 16mm winner Grade 10 Oversized Clevis Master Link Set with Shortener(4 legs)

This high-grade clevis master set was designed for the creation of IV-leg chain slings in the assembled system. The benefits of this system are obvious: the chain can simply be mounted directly in the captive coupling of the shortening element, thereby eliminating the need for an additional connecting link. The hook functions both as a connecting link and a shortening element and the master link is suitable for crane hooks up to no. 25 according to DIN 15401 and up to no. 32 according to DIN 15402.

A full operating manual instructs competent person in the assembly of the set, without any need for special tools. The set is manufactured according to EN 818‑4 with the mechanical values of G10 and, because of its large master ring, it is frequently used on mobile cranes that must withstand multiple loads.

The coupling pin and the lock pin are available as a KBSW spare parts set. CE-marking and BG-approval are part of our standard programme.
