Porta-Base Counterbalance Standard – 1200mm radius

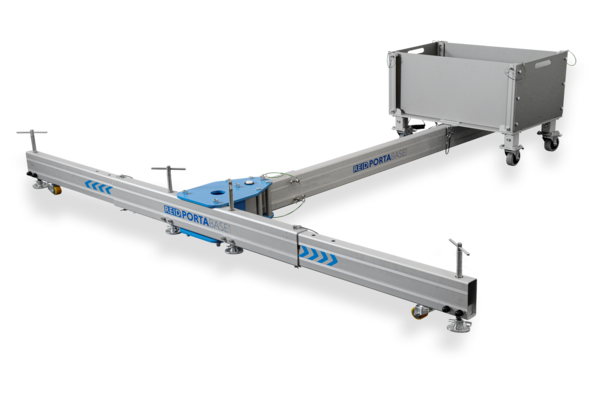

The PORTABASE Counterbalance is a five-piece, portable lifting system which can be easily broken down for transportation. Expertly engineered, the system is compatible with the Reid davit range providing maximum flexibility where the installation or use of a fixed socket is not possible.

The PORTABASE Counterbalance enables Reid davit systems to be used for lifting goods up to 600kg, as well as providing access and egress for confined space and work at height tasks, including as an anchor point for fall arrest scenarios.

The Reid Porta-Base Counterbalance is a truly portable anchor solution for materials handling and working at height tasks.

Key features and benefits of the PORTABASE Counterbalance:

• EN795:2012 certified

• Can support goods and personnel lifting; Goods WLL of up to 600kg and Personnel WLL of up to 300kg

• Suitable for up to 1 persons for fall protection applications

• Breaks down into 5 components for ease of transportation and stowage

• Designed for ease of assembly using pins, with no bolted sections or the need for tools

• Detachable legs and foldable basket for ease of transportation

• Levelling feet designed to support the system to function correctly on uneven ground

• Integrated swivel castors, as standard

• Compatible with the use of TDAVIT and PORTADAVIT QUANTUM

• Clean, anodised finish for increased corrosion resistance

• Uses 20kg hand weights for the basket, reducing manual handling risks

• weights are not supplied

• Engineered designs and bespoke sections reduce weight, providing lightweight portability
