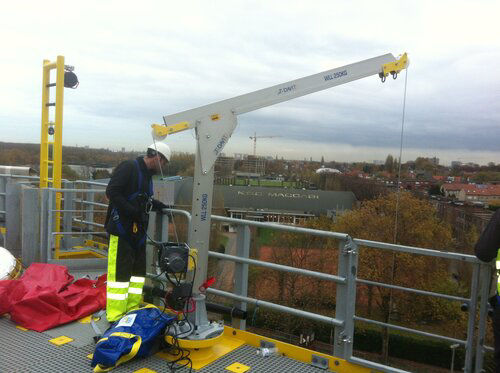

Reid Winched T-Davit - TDWA5A2

Max - H:2342mm R:1200mm

500kg Load Rating

Manufacturer: Reid Lifting
SKU: TDWA5A2
£2140.04 inc vat £1,783.37 excl vat
decrease increase

Reid Winched T-Davit - TDWA5A2

Model Breakdown:

  • Reach (Position A:B) - 1200mm / 1110mm
  • Height of Lift: Position A - 1954mm - Position B - 2342mm
  • Load Rating - 500kg

Key Features:

  • EN795:2012 Certified

  • ATEX Certified

  • Can support goods and personnel lifting;

    • Goods WLL of up to 500kg

    • Personnel WLL of up to 250kg

  • Can be operated and assembled by one person, no tools required

  • Can be rotated 360° under full load using fingertip control

  • Designed with a universal kingpin suitable for all REID sockets

  • Clean, anodised finish for increased corrosion resistance

  • A variety of attachments for a range of applications

  • Engineered designs and bespoke sections reduce weight, providing lightweight portability


Downloads:

Technical Drawings

TDWA5A2

Bridge Mount

Flush Mount

500mm Pedestal

800mm Pedestal

1100mm Pedestal

Side Mount Socket

Top Mount Socket


Product Overview

Assembly Video

Reid Winched T-Davit - TDWA5A2

Model Breakdown:

  • Reach (Position A:B) - 1200mm / 1110mm
  • Height of Lift: Position A - 1954mm - Position B - 2342mm
  • Load Rating - 500kg

Key Features:

  • EN795:2012 Certified

  • ATEX Certified

  • Can support goods and personnel lifting;

    • Goods WLL of up to 500kg

    • Personnel WLL of up to 250kg

  • Can be operated and assembled by one person, no tools required

  • Can be rotated 360° under full load using fingertip control

  • Designed with a universal kingpin suitable for all REID sockets

  • Clean, anodised finish for increased corrosion resistance

  • A variety of attachments for a range of applications

  • Engineered designs and bespoke sections reduce weight, providing lightweight portability


Downloads:

Technical Drawings

TDWA5A2

Bridge Mount

Flush Mount

500mm Pedestal

800mm Pedestal

1100mm Pedestal

Side Mount Socket

Top Mount Socket


Product Overview

Assembly Video

Products specifications
Davit Applications Man Riding / Suspended Access
Max Reach (mm) 1001-1200
