ThermoProbe TP7D-075-SW-SM



Intrinsically safe thermometer for accurate temperature measurement in bulk liquid storage tanks
  • Ideal alternative to hazardous glass thermometers
  • Reliable and stable RTD sensor technology
  • Accuracy ±0.2°F from 32 to 200°F (0 to 100°C)
  • Easy to calibrate and make adjustments using faceplate controls
  • Cable marked every 5 feet



The ThermoProbe are designed as rugged, field-use, portable precision digital thermometers, involving volume-temperature gauging of petroleum and chemical products. Convenient design allows for easy retrieval of the cable probe and eliminates the need to bring the probe to the surface to take multiple readings. Typical applications include custody transfers, tanks, pipelines, ships, railcars, barges, tanker trucks, and proving systems.

Zone 0 intrinsically safe meters are manufactured of materials which are both immune to petrochemicals and are nonsparking. The probe assembly is constructed with a very flexible, static-dissipating, aramid fiber reinforced, nonstick cable and stainless steel components.

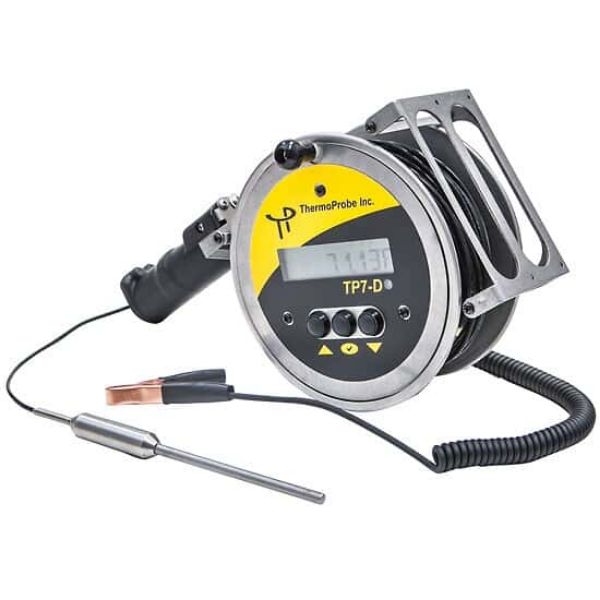

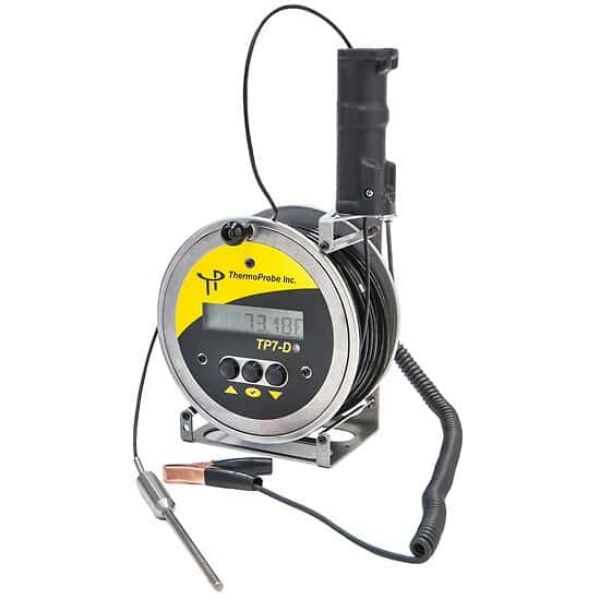

Large LCD displays temperature, plus arrows indicate the direction of the temperature reading and whether stability has been reached. Stabilized temperatures can be logged at numerous liquid levels for a running average and later displayed for documenting. Advanced features, accessible through a user-friendly menu, include Min/Max/Avg reading, readout integrity, photosensor-controlled backlight, selectable (°F/°C) unit of measure, battery status, and automatic shut-off.

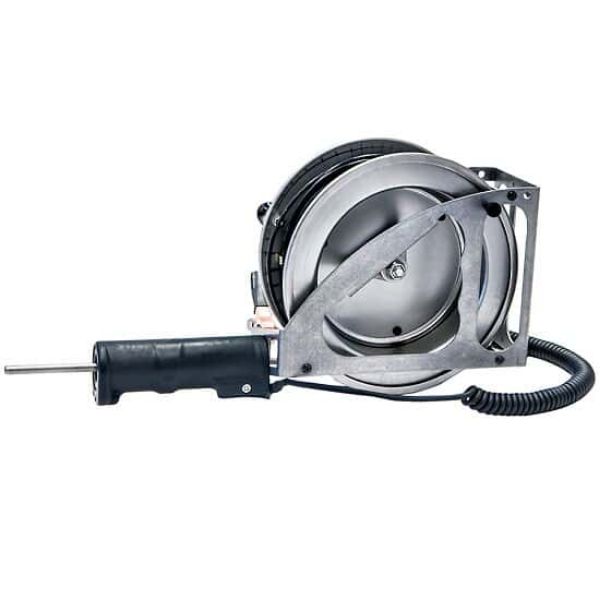

Model TP7D features a high-impact plastic case and a built-in reel for fast and easy retrieval of the cable with probe.



INCLUDES

2 AA batteries and NIST traceable calibration report supplied by manufacturer.

KEY FEATURES

  • Ideal alternative to hazardous glass thermometers
  • Reliable and stable RTD sensor technology
  • Accuracy ±0.2°F from 32 to 200°F (0 to 100°C)
  • Easy to calibrate and make adjustments using faceplate controls
  • Cable marked every 5 feet
  • Includes 4-point NIST traceable calibration report
  • 1 year warranty



Specifications & Description

Meter Measurement TypeRTD
Number of Probe Channels 1
Types of Probes Accepted RTD
Min Temperature (°F)-40
Max Temperature (°F)400
Min Temperature (°C)-40
Max Temperature (°C)204
Accuracy ±0.2°F; ±0.5°F above 200°F [±0.1°C; ±0.3°C above 100°C]
Resolution0.01°
Low Battery Indicator Yes
Height (in)14
No. of Probe(s) included1
Battery Life200 hours
BatteryAA Battery (2)
DescriptionSpool-Type 75ft Std Prob
Warranty1 year

ThermoProbe TP7D-075-SW-SM

Spool-Type 75ft Sd Probe
SKU: TP7D-075-SW-SM
Call for pricing

ThermoProbe TP7D-075-SW-SM

Call for pricing
