Tiger Lifting CPH Horizontal Plate Clamp

WLL: 5000 - 20,000kg
Various Models Available
Manufacturer: Tiger Lifting
SKU: CPH-0050
  • *
£140.00 excl vat
£168.00 inc vat
decrease increase

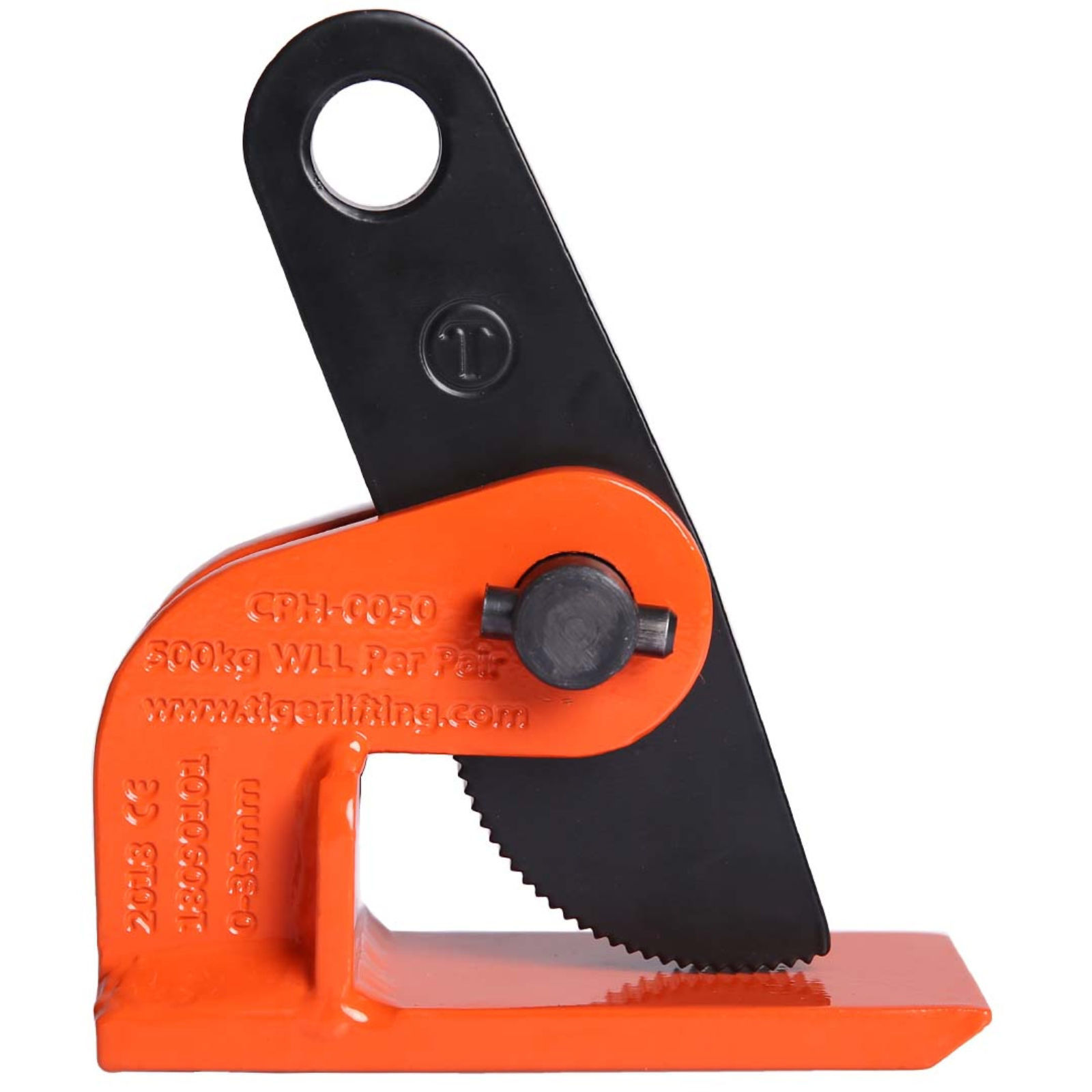

Tiger Lifting CPH Horizontal Plate Clamp


The Tiger CPH clamp is a horizontal lifting clamp intended to be used in pairs, sets of pairs, or in a tripod arrangement for transporting steel plates horizontally.  They can be used to lift all types of materials in plate form providing that the plate can withstand the forces imposed on it. These clamps are only suitable for lifting single plates with a surface hardness below 300 Brinell (HB) / 32 Rockwell C (HRC).

Product CodeCapacity (Tonne)Jaw Opening mmABCDENet Weight (kg)
CPH-00500.50-35140653820162.3
CPH-01001.00-60180806825165.8
CPH-02002.00-60180806825166.7


Downloads:

Data Sheet
