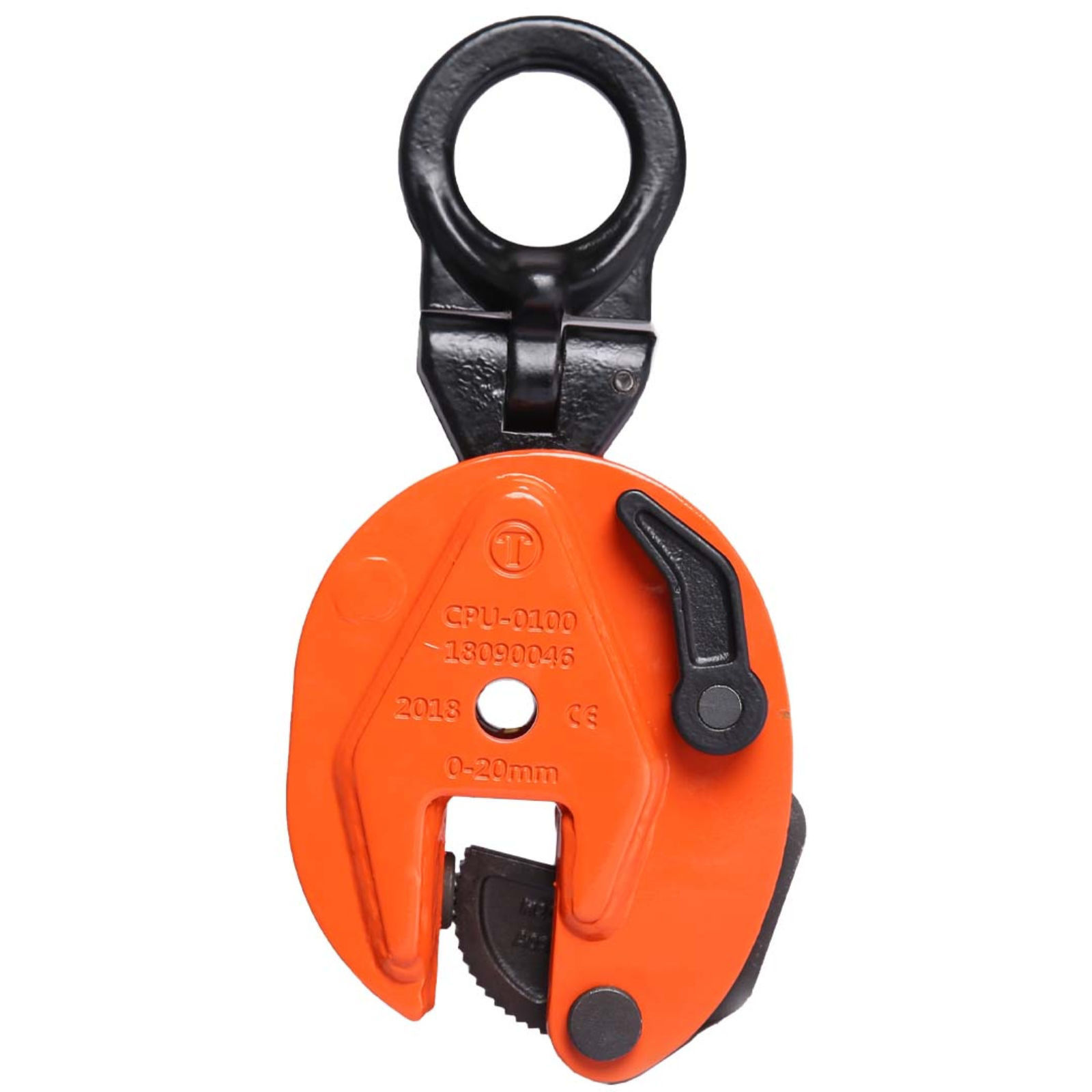

Tiger Lifting CPU Universal Plate Clamp

WLL: 5000 - 50,000kg
Various Models Available
Manufacturer: Tiger Lifting
SKU: CPU-0050
  • *
£130.50 inc vat £108.75 excl vat
decrease increase

Tiger Lifting CPU Universal Plate Clamp


The Tiger CPU Clamp can be used for lifting and transporting steel plates and structures from all positions (horizontal, vertical and sidelong). As well as transporting plate, this clamp is well-suited to turning over steel structures and welded constructions. It has an articulated lifting shackle so can be fitted to a steel plate in any position. It is designed to be used with a two leg chain sling for lifting longer plates without the need for a spreader beam. The CPU is equipped with a pre-tension mechanism ensuring the clamp does not slip when lifting force is applied and when a load is being lowered. For use with plates with surface hardness of up to 300 Brinell (HB) / 32 Rockwell C (HRC).


Plate Clamps should not be used if the surface temperature of the material being lifted is above 100°C. (212°F). The ambient temperature of the operating environment should not be lower than -20°C (-4°F) and not be higher than +50°C. (122°F).


Main Features:

  • 0.5t to 5.0t capacities available
  • Articulating lifting shackle
  • No tools required – integrated adjusting handle
  • For lifting and transporting steel plates and structures from all positions (horizontal, vertical and side loading)
  • For lifting applications
  • Suitable for plates ranging from 0-50mm (model dependent)


Downloads:

Data Sheet


Products also available in this range include;


Tiger Lifting CPU Universal Plate Clamp

CPU-0100, CPU-0200, CPU-0320, CPU-0500

Tiger Lifting CPU Universal Plate Clamp


The Tiger CPU Clamp can be used for lifting and transporting steel plates and structures from all positions (horizontal, vertical and sidelong). As well as transporting plate, this clamp is well-suited to turning over steel structures and welded constructions. It has an articulated lifting shackle so can be fitted to a steel plate in any position. It is designed to be used with a two leg chain sling for lifting longer plates without the need for a spreader beam. The CPU is equipped with a pre-tension mechanism ensuring the clamp does not slip when lifting force is applied and when a load is being lowered. For use with plates with surface hardness of up to 300 Brinell (HB) / 32 Rockwell C (HRC).


Plate Clamps should not be used if the surface temperature of the material being lifted is above 100°C. (212°F). The ambient temperature of the operating environment should not be lower than -20°C (-4°F) and not be higher than +50°C. (122°F).


Main Features:

  • 0.5t to 5.0t capacities available
  • Articulating lifting shackle
  • No tools required – integrated adjusting handle
  • For lifting and transporting steel plates and structures from all positions (horizontal, vertical and side loading)
  • For lifting applications
  • Suitable for plates ranging from 0-50mm (model dependent)


Downloads:

Data Sheet


Products also available in this range include;


Tiger Lifting CPU Universal Plate Clamp

CPU-0100, CPU-0200, CPU-0320, CPU-0500
