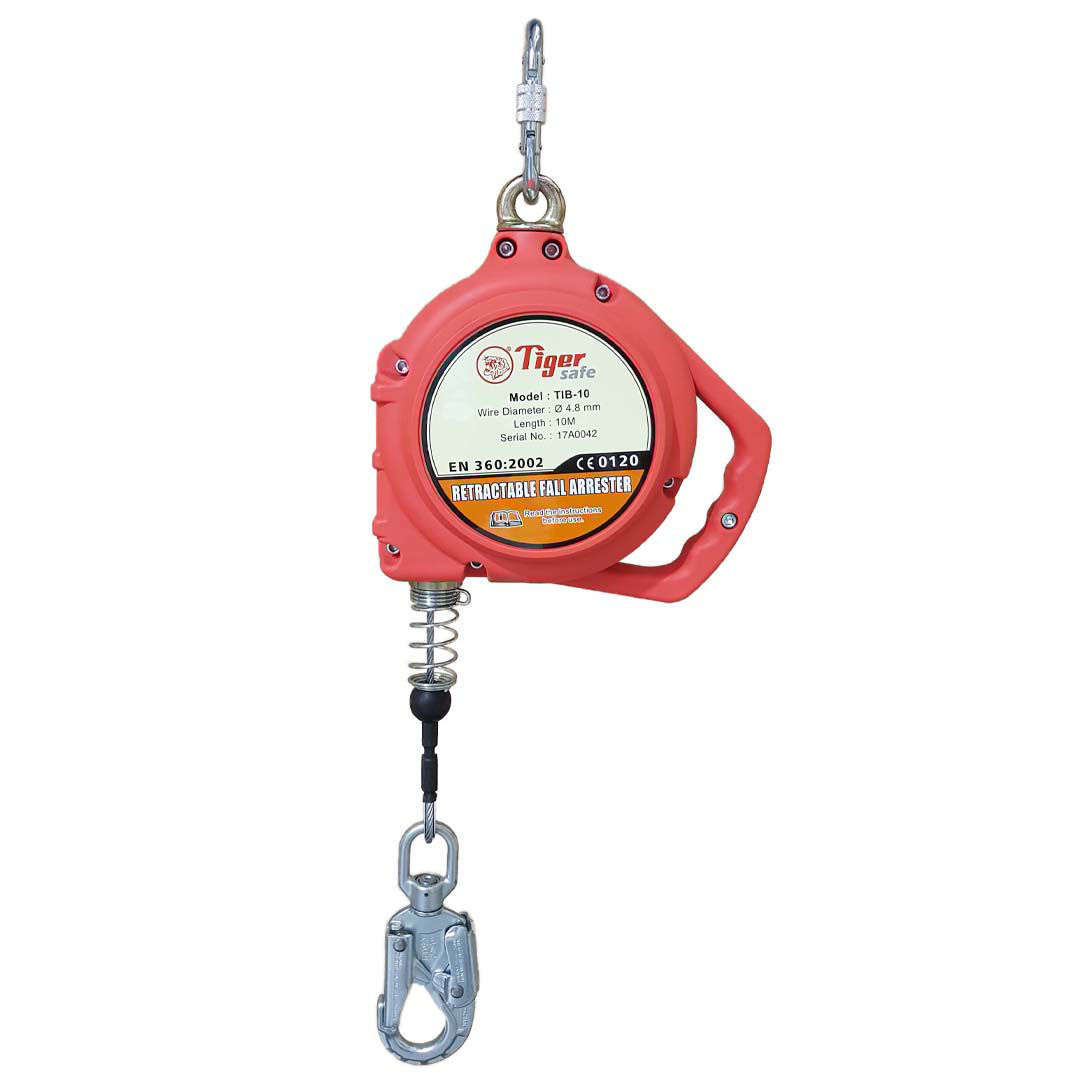

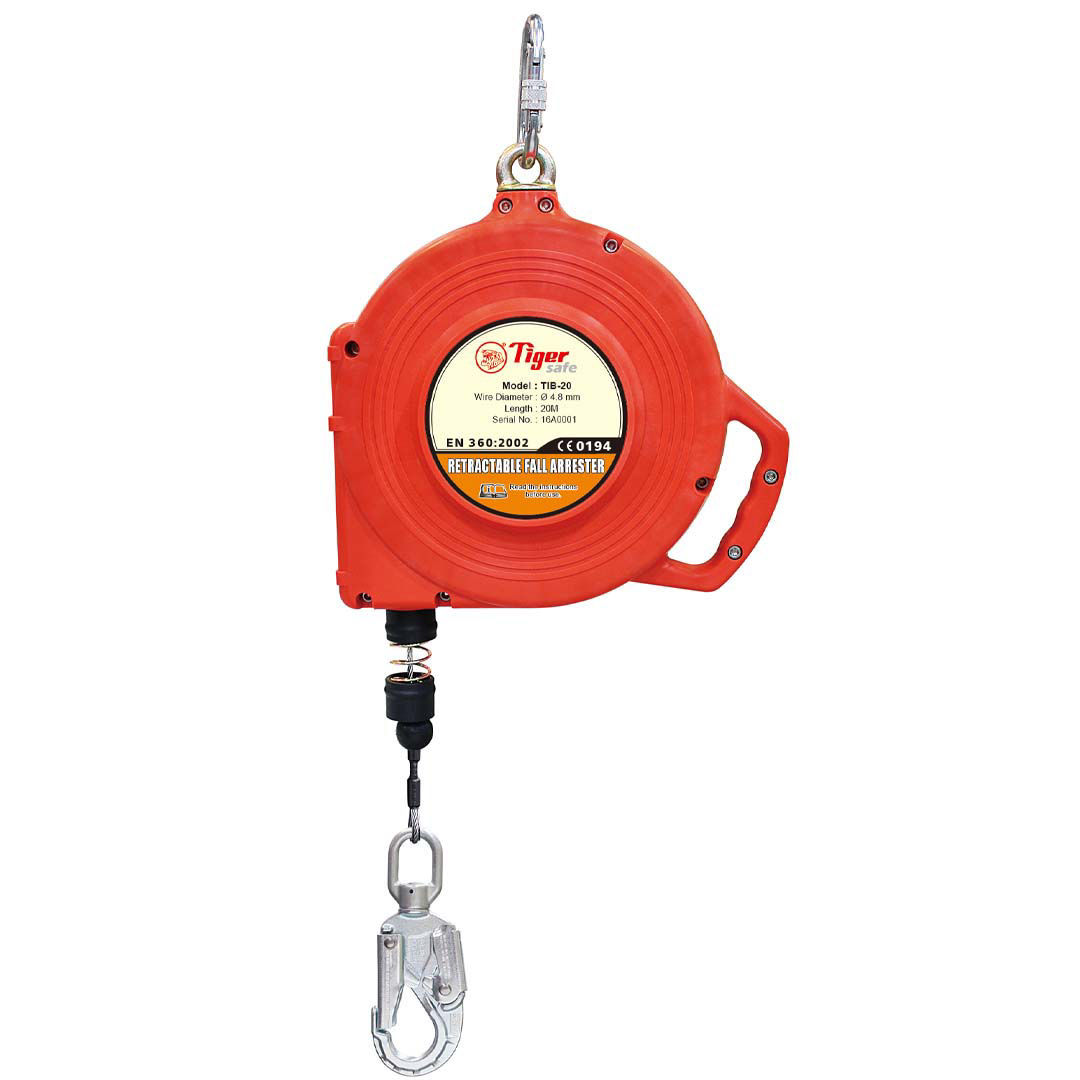

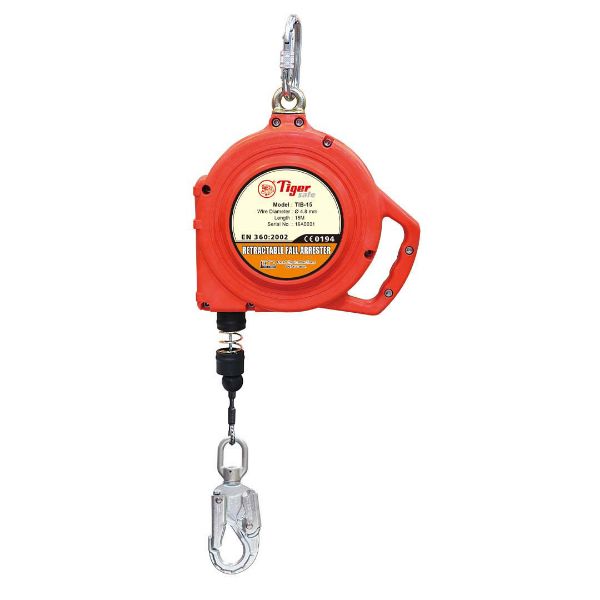

Tiger TIB Fall Arrest Blocks Wire - Nylon Case 6m-30m

Tiger TIB Fall Arrest Retractable Lifelines/Inertia Reels are designed to reduce vertical impact force on the body caused by falling from height.

They are used to provide semi-permanent fall protection.

The lifeline tension allows the user to move freely around the work area.

Main Features

• Part of the Tigersafe range of height safety equipment
• Lightweight, compact and durable

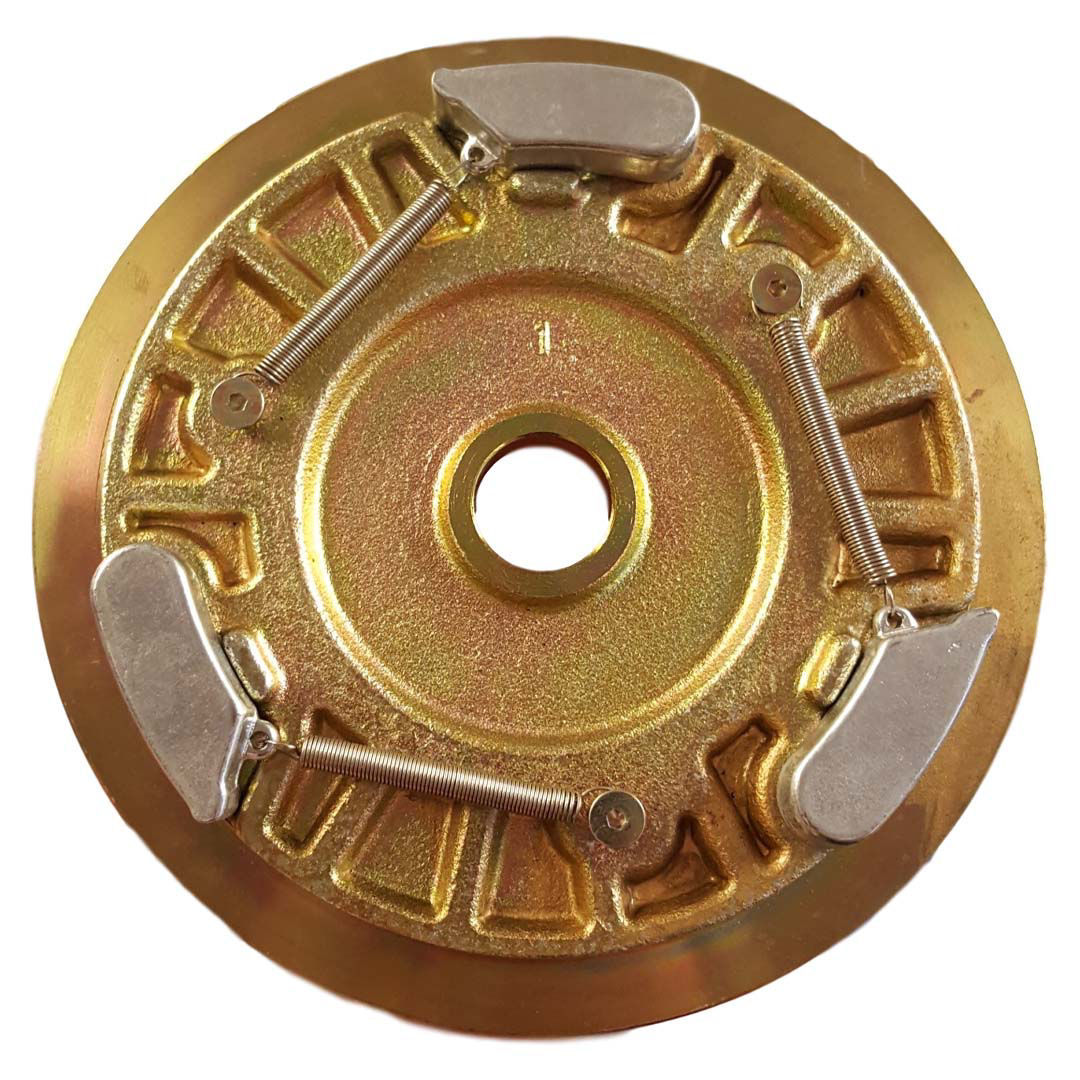

• Triple pawl brake system with energy dissipating mechanism
• Side cable exit for smooth operation and reduced cable wear
• Ergonomic carrying handle makes transport, set-up and storage easy and safe
• 150kg capacity for operator and tools
• Top anchor point with built-in swivel - limits lifeline twisting
• Supplied with screw gate karabiner for fitting to a suitable anchor point
• Top scaffold hook available as an option
• Lower self-locking snap hook and swivel with built-in impact indicator for connecting directly to the safety harness
• All fittings meet EN 362:2004

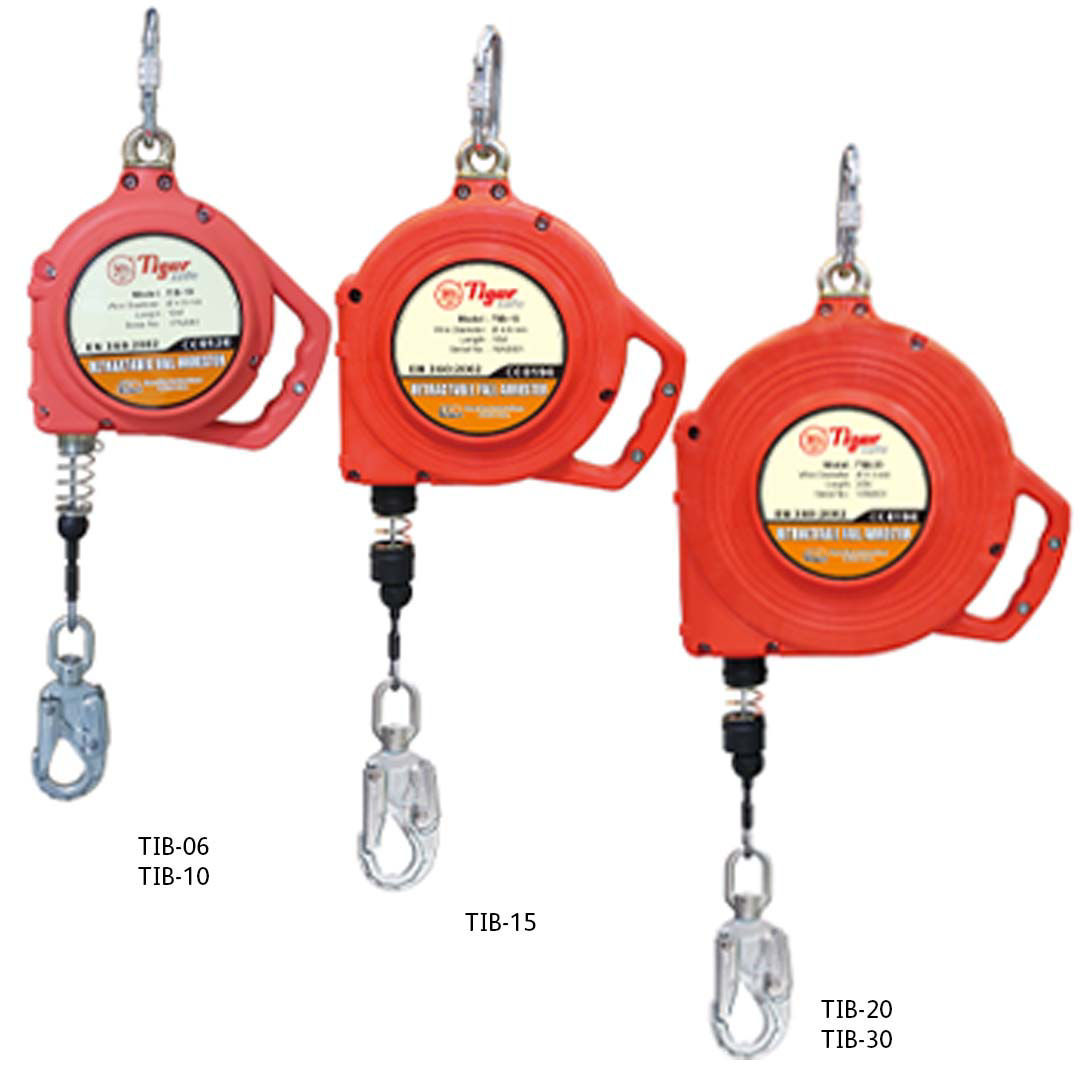

• Available with 6m, 10m, 15m, 20m, 30m wire rope lengths
• Buffer spring at cable exit protects block and allows for smooth operation
• Easy to inspect
• Fully serviceable by an approved Service Agent/Centre
• Highly durable nylon casing*
• Side case with metal bush for shaft housing
• Minimum static strength 12kN
• 8mm galvanised wire rope
• Supplied with pull down cord
• Conforms to EN 360:2002 - EC Notified Body Apave
• PPE Regulation (EU)2016/425
• Maximum rated load: 150kg
• Minimum static strength 12kN
• Braking force: less than 6kN
• Wire Rope - 4.8mm galvanised
• Operating Temperature: -30°C to +50°C
• PPE Category III Retractable Type Fall Arrestor
