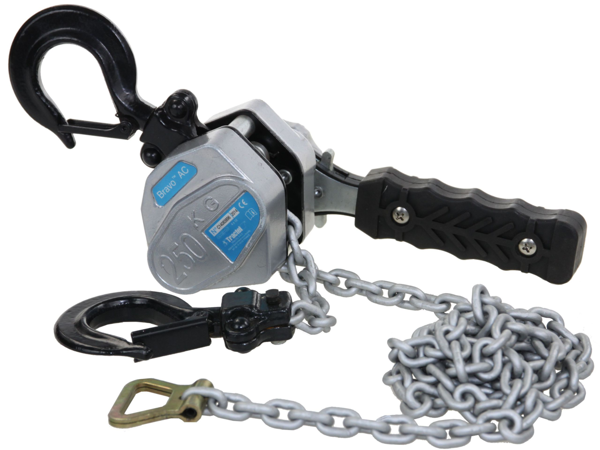

Tractel Bravo AC Aluminium Ratchet Lever Hoist

The bravo™ AC series ratchet lever hoist with aluminium enclosure has been developed especially for light weights and manual lifting, pulling, securing and tensioning loads.

The hoist is supplied in a carrier bag for easy transport (tool belt) and storage.

With free-wheel mechanism (unloaded), double brake discs and chain guide.

• WLL 250kg and 500kg
• Aluminium casings
• Compact and lightweight
• Robust design equals less down time
• Easily portable for use anywhere
• Swivel hook
• Pull-through feature to quickly adjust the load chain
• Carry bag with belt loop
• Option: chain locking and shortening device for greater safety ensuring the load or tension is never lost
• Galvanized load chain
• Grade 80 EN 818/7

Optional bravo™ CLD - chain locking device:

The bravo™ CLD chain locking system serves as an adjustable end stop when lowering a load.

• Can be used in combination with the bravo™ chain hoist for lifting and pulling loads and rope tensioning applications
• Is attached to the end of the chain by using a bolt or self-locking nut
• Automatically slides and locks onto the chain, as close as possible to the chain structure
• Can be mounted on all types of Bravos
• CLD is tested to 2.5 times the WLL, in conformity with EN 13157

Chain Size is = Diameter x P (in mm)

Downloads:

Data Sheet
