Description

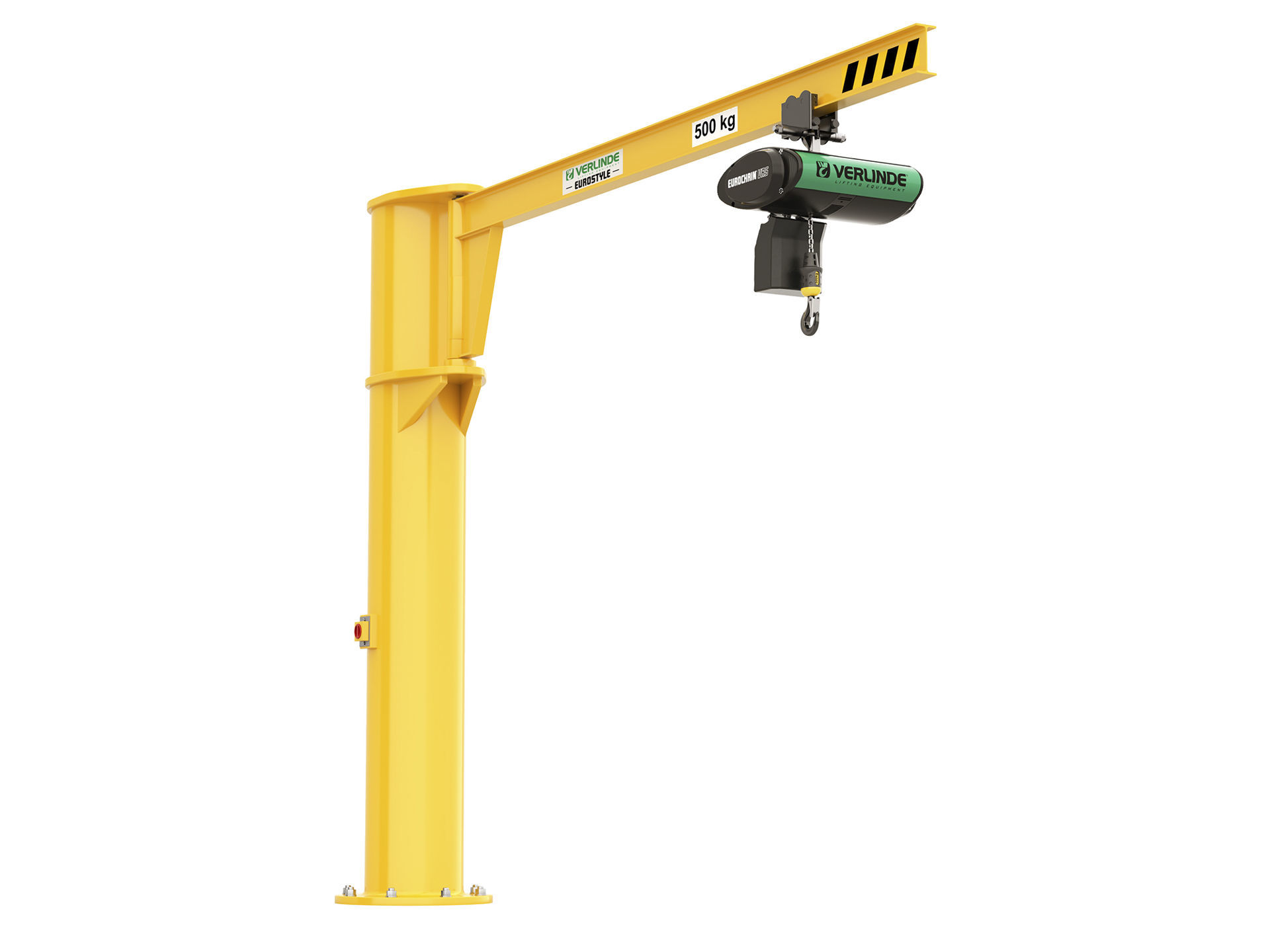

VFI Free Standing/Floor Mounted Underbraced Jib Crane (Profile Beam)

The VFI range of free standing jib cranes are manufactured with conventional profile beam arms which are suitable for standard hoist trolleys. Capable of handing loads from 125kg to 2,000kg the VFI Free Standing Underbraced Jib Crane with profile beam has a radius/span from 2 to 7 metres dependant on the load, and an arm clearance of up to 3 metres as standard, but can be supplied up to 4 meters.

Options available:

Lockable main switch
Most models available with large base for use with resin anchor bolts
Installation template and cast in anchor rods
Rotation slowing device
Adjustable rotation stops
Single or multi-position rotation lock
Electric or manual hoist

Technical Information

The VFI Free Standing Underbraced Jib Crane (Profile Beam) technical features:

Standard height to underside of beam of 3 metres and is available up to 4 metres upon request
Jib crane with hollow-section pillar for indoor use
270° rotation, with overbraced jib arm
This type of jib crane cannot be motorised
Oversized base plate available to potentially alleviate the need for a foundation
Polyurethane RAL1028 melon yellow painted finish
Power supply cable provided if required
Suitable for hoist with a maximum hoisting speed of 16mpm

Commercial Guide

Technical Guide

VFI Free Standing/Floor Mounted Underbraced Jib Crane (Profile Beam)

WLL: 125-2,000kg
Height: 3 metres

SKU: VFI

Call for pricing

Qty:

VFI Free Standing/Floor Mounted Underbraced Jib Crane (Profile Beam)

Call for pricing

Qty:
