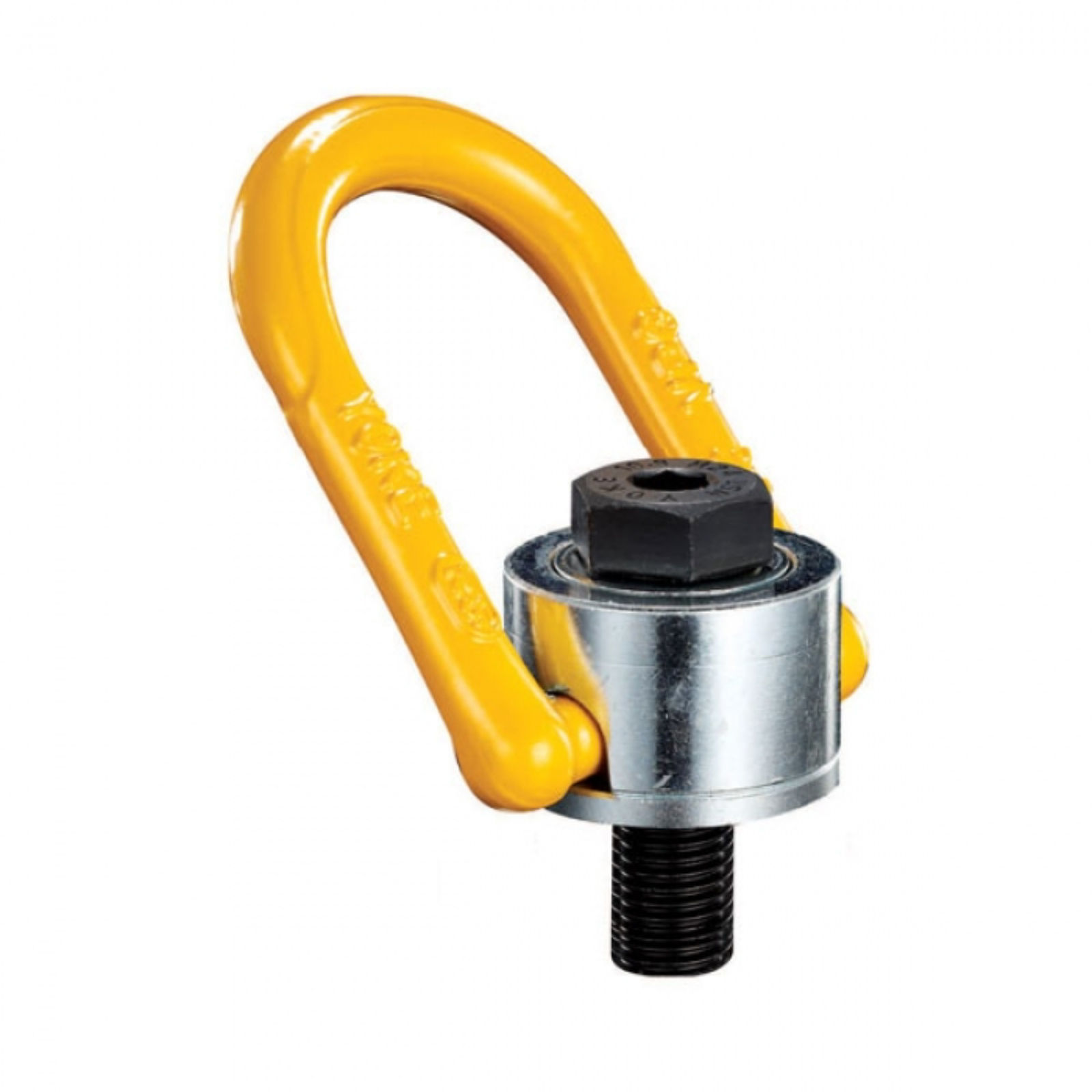

William Hackett Swivel Hoist Ring Metric Thread - Type 231

• Rotates through 360° and pivots 180°, and simultaneously allows lifting from any direction.

• Manufactured from forged alloy steel, quenched and tempered and tested in accordance with EN1677-1.

• Load rated parts are 100% magnaflux crack detected & the individual forged parts & cap screw are traceable to Test Certification.

• Bolts are Metric thread 10.9.

• Proof tested to 2.5 times the WLL and Fatigue rated to 1.5 times the WLL.

• Design Factor 4 : 1

• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.

• Quick and simple assembly, just a tapped hole is required.

Downloads:

Data Sheet

Products also available in this range include;

Yoke Swivel Hoist Ring - Type 231 Metric Thread

8-231-007, 8-231,010, 8-231-015, 8-231-020, 8-231-025, 8-231-030, 8-231-050, 8-231-078, 8-231-125, 8-231-156, 8-231-200, 8-231-220, 8-231-225
