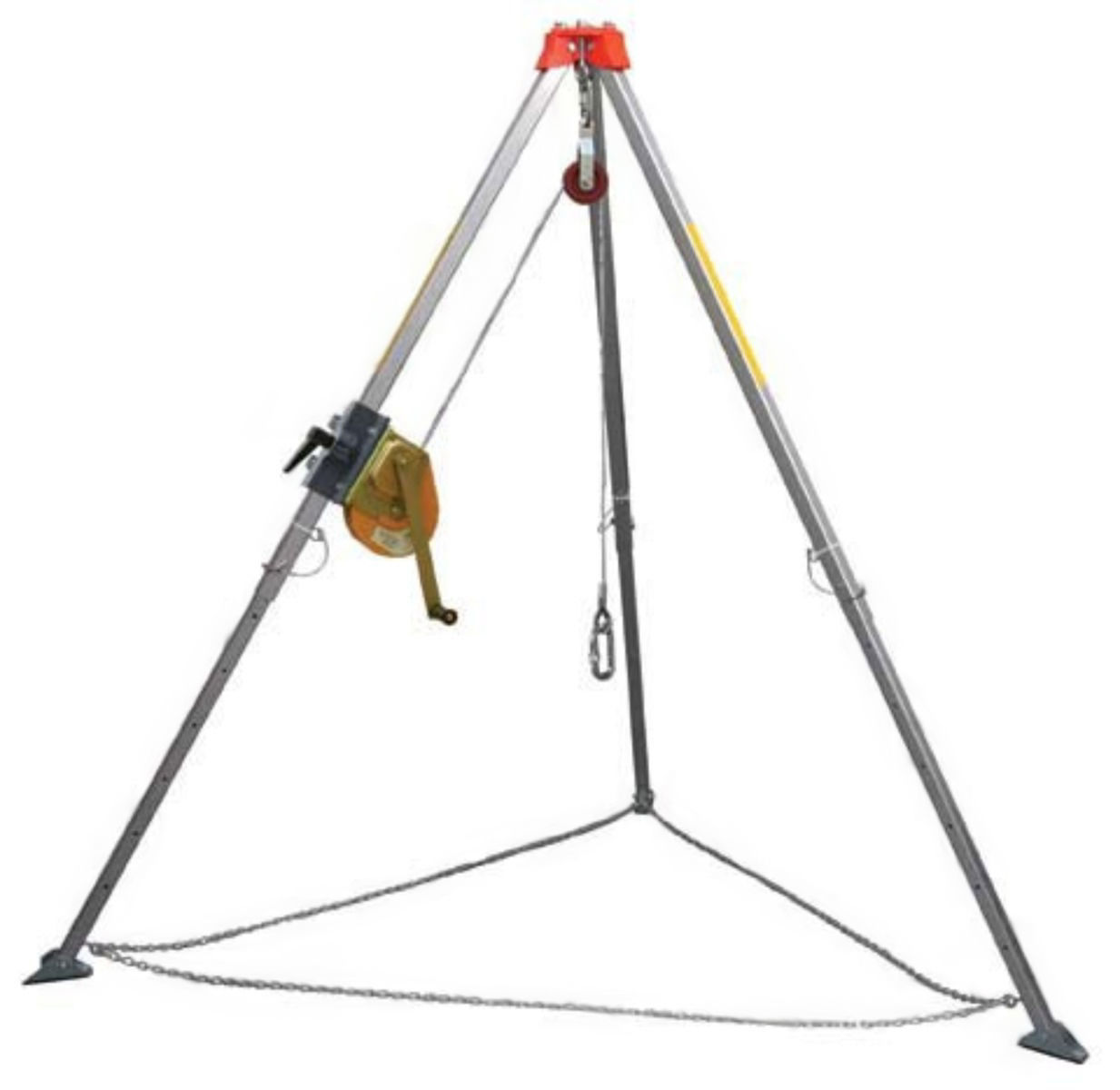

Yale CMHTM9 Tripod

Confined Space Rescue Tripod

• Tripod with a working load limit of 500kgs. Height to underside
• 1340 - 2300mm. Footprint dia. 1.66 - 2.36mtr Net weight
• 14.3kgs. Conforms to EN795
• Tripod model DRB
• Conform to EN 795
• With securing device
• Working load limit: 500 kg
• Breaking force: 22 kN
• Fully adjustable height 130cm - 230cm
• Closed height: 1.75 m
• Weight: 14.3 kg
• Multi attach points for use with fall arrest block and safety lines etc.
• Lightweight aluminium construction



Load Winch

This range of winches feature an automatic brake, a cable diameter of 6.3mm and a working load limit of 140kg.

Winch is available in either a 20m or 25m model

Comes with mounting bracket to attach winch to tripod.

Both winches conform to EN1496

Fall Arrest Blocks

This range of fall arrest blocks vary from 6m - 15m with a 4mm diameter cable.

These fall arrest blocks are fitted as standard with fall indicator in connector.

All models feature a working load limit of 120kg

Pricing of the block includes the required bracket for attachment to the CMHTM9 tripod.
