Sorry - this product is no longer available
Max - H:2410mm R: 610 - 760mm
Configurable on details page
£2347.56 inc vat £1,956.30 excl vat
Globestock GSEDK Kit

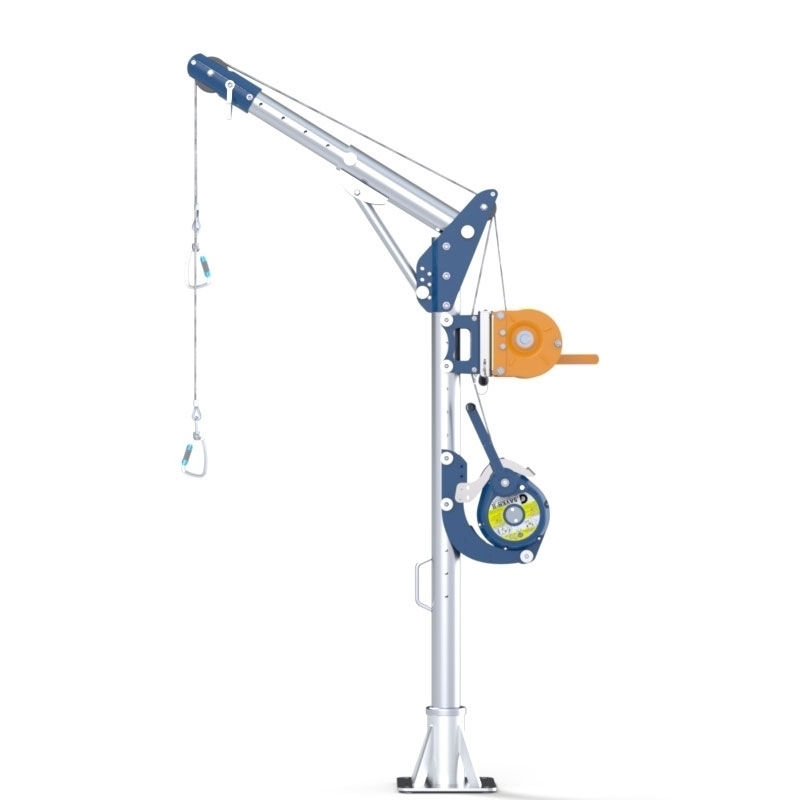

The G.Davit is a lightweight EN795 + T
S16415 anchorage device for confined space access and working at height situations, for temporary or permanent access. It may be used as an anchor by more than one person simultaneously, providing the MWL is not exceeded.
The product has a maximum working load (MWL) of 200kg for personnel, and 250kg for loads. Design for use with the G.Saver II and G.Winch.
- Light 18kg (D200-80). Manufactured from aluminium.
- Safe Both the G.Winch and G.Saver II can be mounted in an ergonomic position on the same side of the mast, keeping the top operator away from the edge.
- Smart Clever cable routing keeps rope away from the area of operation, reducing risk.
- Adaptable up to 760mm reach (see table below).
- Portable Compact and easy to carry.
- Quick Simple assembly, no tools required.
- Reliable Manufactured in the UK by Globestock; rapid distribution and fast spares response.

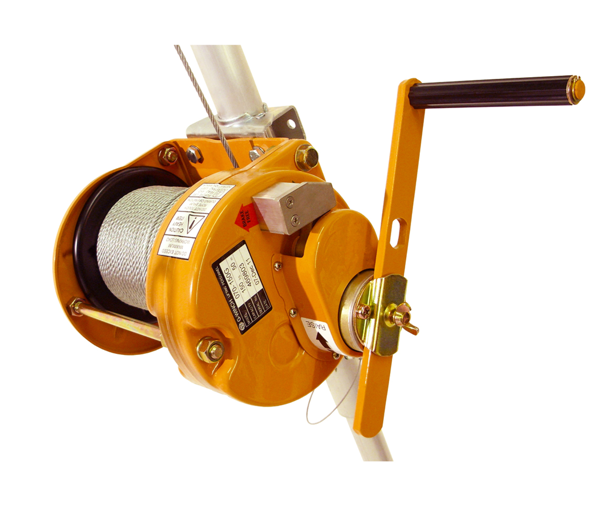

Globestock's man riding winch is a durable winch rated for the day to day lifting of both personnel and loads. The anti-run braking mechanism ensures that if the winding arm is released during lifting the winch automatically locks, holding the person / load steady until the handle is rotated again by the operator. The 1:8.9 gear ratio make personnel lifting easy and allows 50mm of cable retrieval per rotation. This winch may be mounted to various anchor devices.

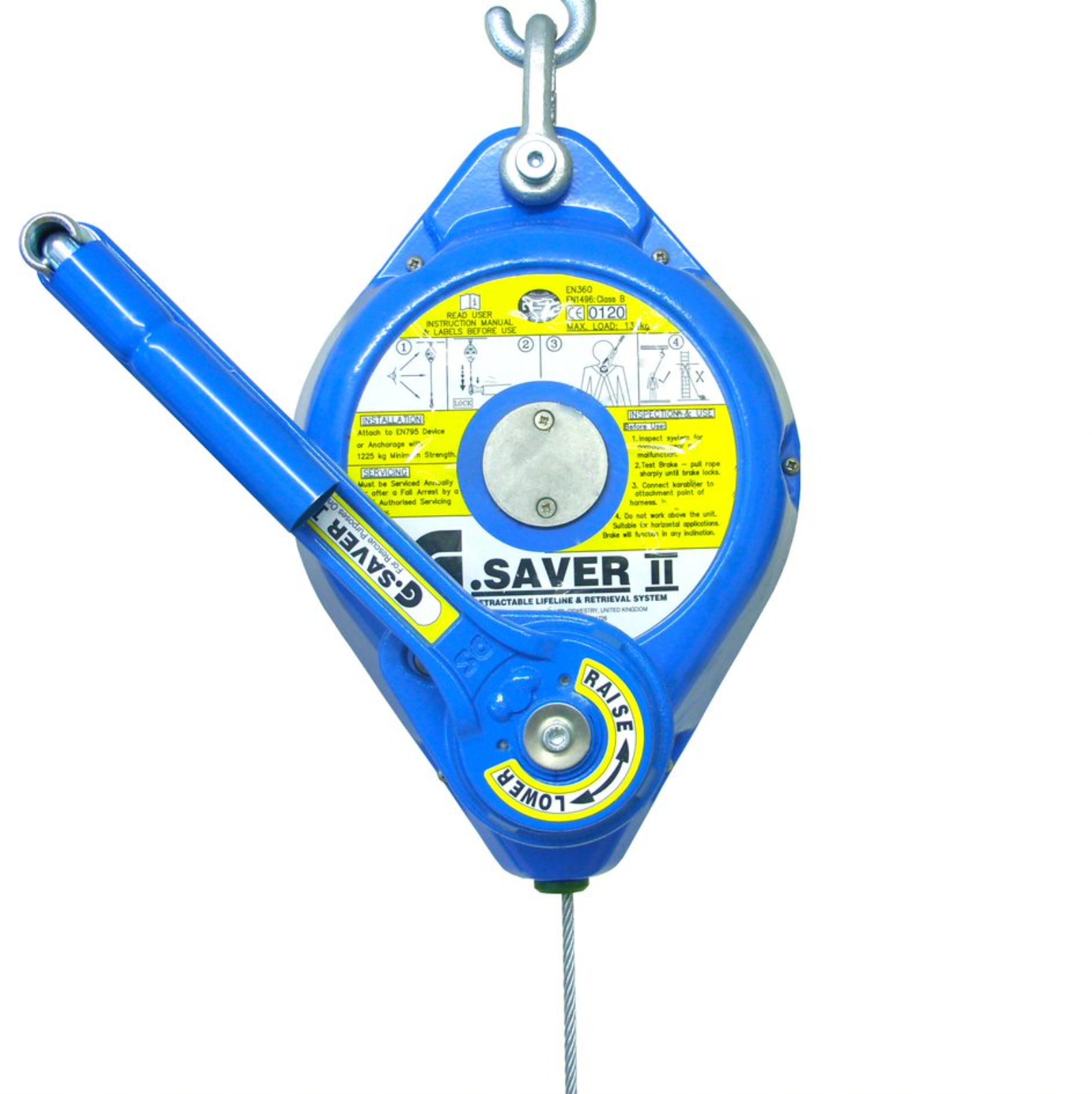

Globestock G-Saver II Fall Arrest
The G.Saver II is a retractable fall arrest device which features a combined rescue winch for raising or lowering the user to safety, should a fall occur.
The G.Saver II should be primarily used in fall arrest mode with the winch mechanism disengaged, in order to protect the user from a fall. Should a fall occur, the steel cable is pulled out at an accelerating rate; when a speec of 1.5m/sec is reached, the braking system activates, thereby arresting and cushioning the fall. Once the fall has been arrested, the winch mechanism can be engaged so that the user can be either raised or lowered to safety. The G.Saver II eliminates the need for additional equipment to retrieve users and prevents them from being suspended for a long period of time, awaiting rescue by other means.
With the suspended load removed and the winch mechanism disengaged, the cable automatically retracts back in to the unit, regaining its fall arrest function. The G.Saver II can be mouned vertically above the user or horizontally, in conjunction with a suitable anchorage point. It can also be used in conjunctio with the G.Tripod and G.Davit.
